PISTON KIT 09-12 KXF450 HC 96 FORGED WOSSNER 8769DA

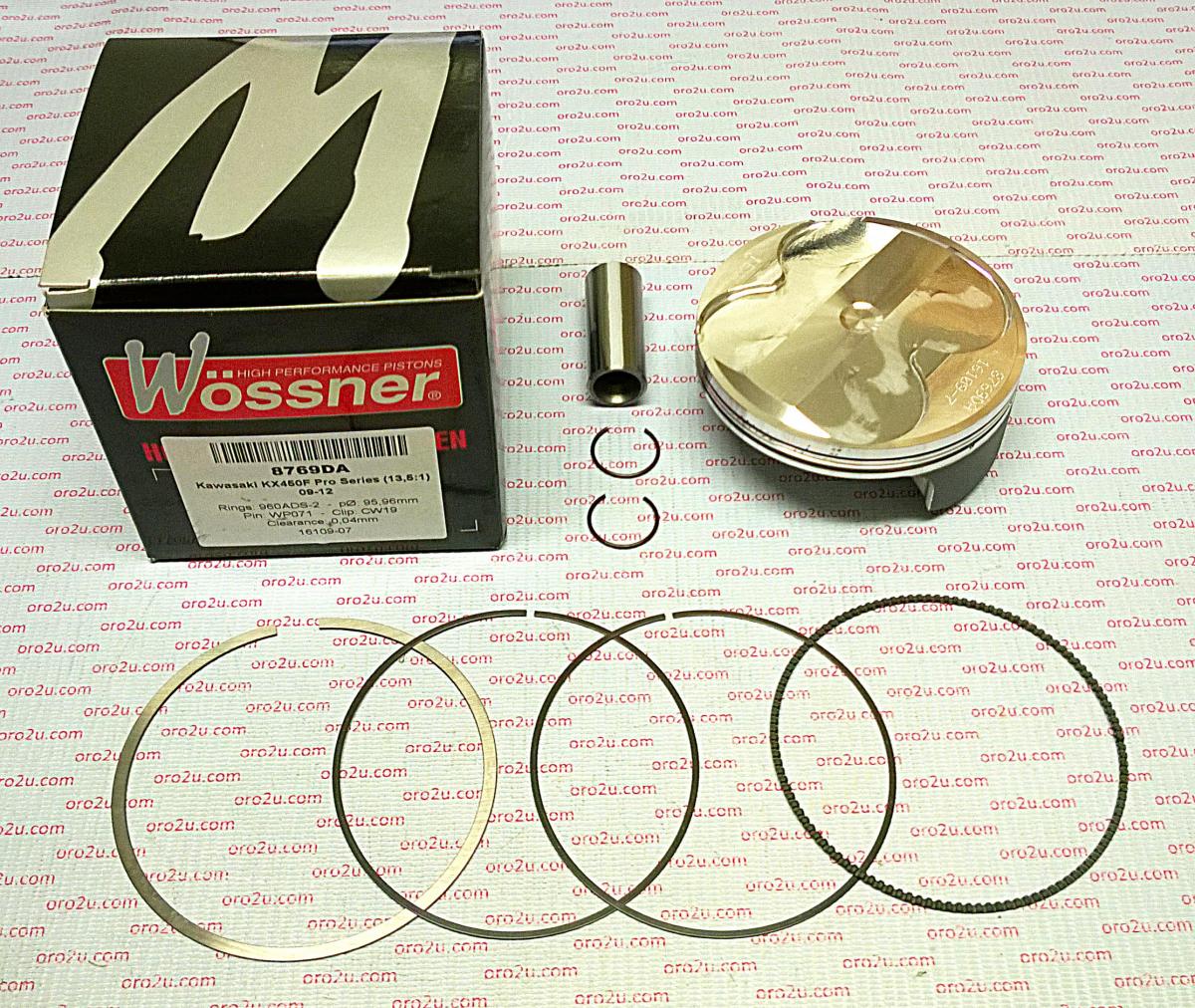

Wossner forged high-compression piston kit with a 96mm bore (95.96mm) for Kawasaki KX450F (2009-2012). Designed for superior strength and heat transfer efficiency, this piston ensures optimal combustion performance. The elliptical design distributes thrust loads evenly, reducing localized pressure and preventing piston collapse. Manufactured in Germany.

Features

• High-compression forged piston for increased performance
• Optimized heat transfer for enhanced durability
• Elliptical design ensures uniform bearing surface under heat expansion
• Even thrust load distribution to prevent piston collapse
• Manufactured in Germany

Specifications

• Bore Size: 96mm (95.96mm)
• Compression Ratio: 13.5:1
• Part Number: 8769DA
• Lock Part Number: CW19
• Pin Part Number: WP071
• Ring Set Part Number: 960ADS-2
• Rod Part Number: P4020
• Displacement: 449 cm³
• Stroke: 62.10mm
• Clearance: 0.04mm
• OEM Compression Ratio: 12.5:1
• Dome Volume: +4.20 cm³
• Compression Height: 23.70mm

Cross-Reference OEM Part Numbers

• 13001-0110
• 4990M09600

Vehicle Fitments

• Kawasaki KX450F (2009-2012)
