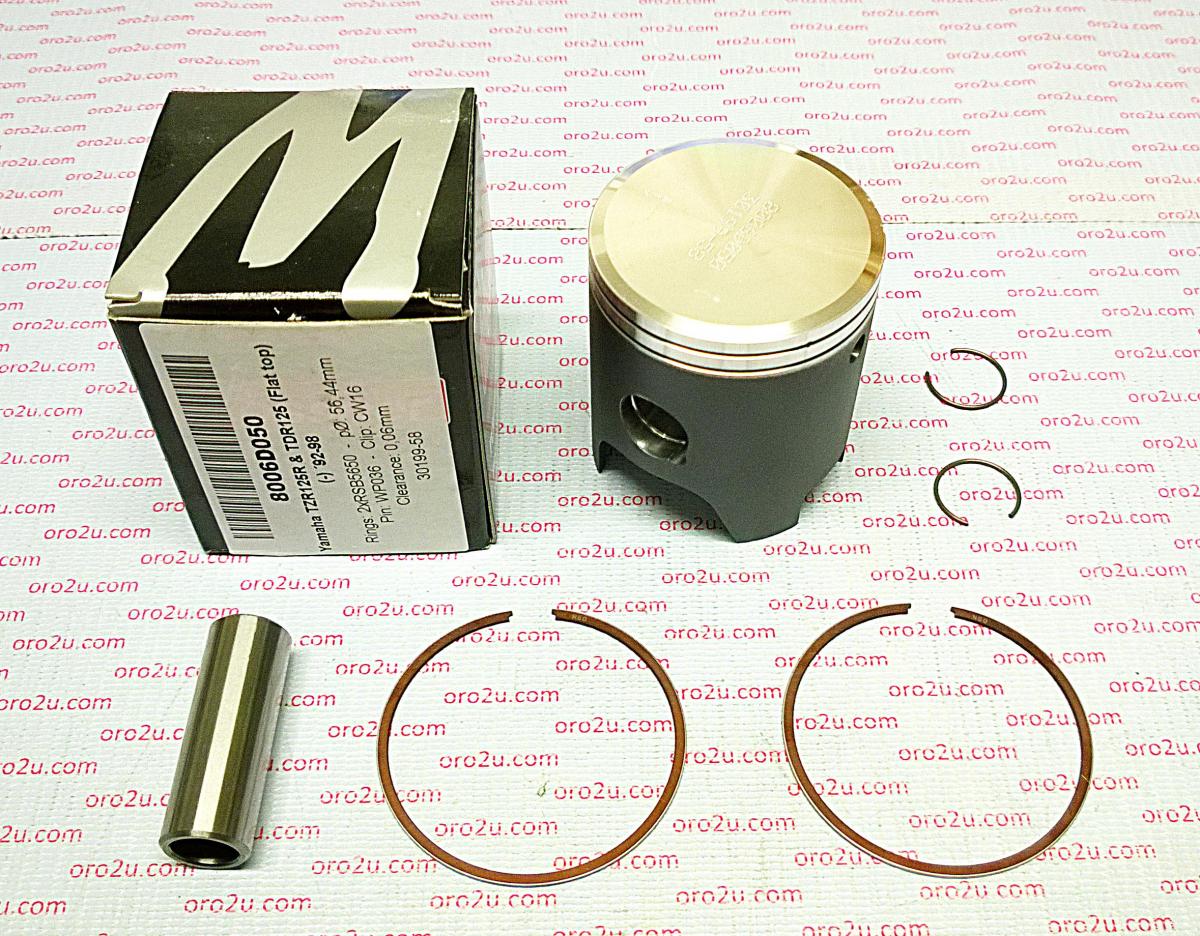

PISTON KIT 93-97 TZR125 56.00 FORGED WOSSNER 8006DA

Wossner forged piston kit with a 56.00mm bore and 55.94mm diameter, designed for Yamaha TDR125 and TZR125R models. Manufactured in Germany, this piston offers superior strength and design, ensuring optimal heat transfer to cylinder walls. Its elliptical design provides a uniform bearing surface under heat expansion, reducing localized pressure and evenly distributing thrust loads to prevent piston collapse.

Features

• Forged construction for superior strength
• Optimized heat transfer for efficient combustion
• Elliptical design for uniform load distribution
• Manufactured in Germany

Specifications

• Bore: 56.00mm
• Diameter: 55.94mm
• Display (cm³): 124
• Stroke (mm): 60.80
• Clearance (mm): 0.06
• Wossner Compression Ratio: 2-Stroke
• OEM Compression Ratio: 2-Stroke
• Dome Volume (cm³): Flat
• Compression Height (mm): 29.90

Cross-Reference OEM Part Numbers

• Wossner Piston Yamaha TZR125R (PN# 8006DA)
• Lock P/N: CW16
• Pin P/N: WP036
• Ring Set P/N: RSB5600 x 2

Vehicle Fitments

• Yamaha TDR125 (1992-1998)
• Yamaha TZR125R (1992-1998)

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
