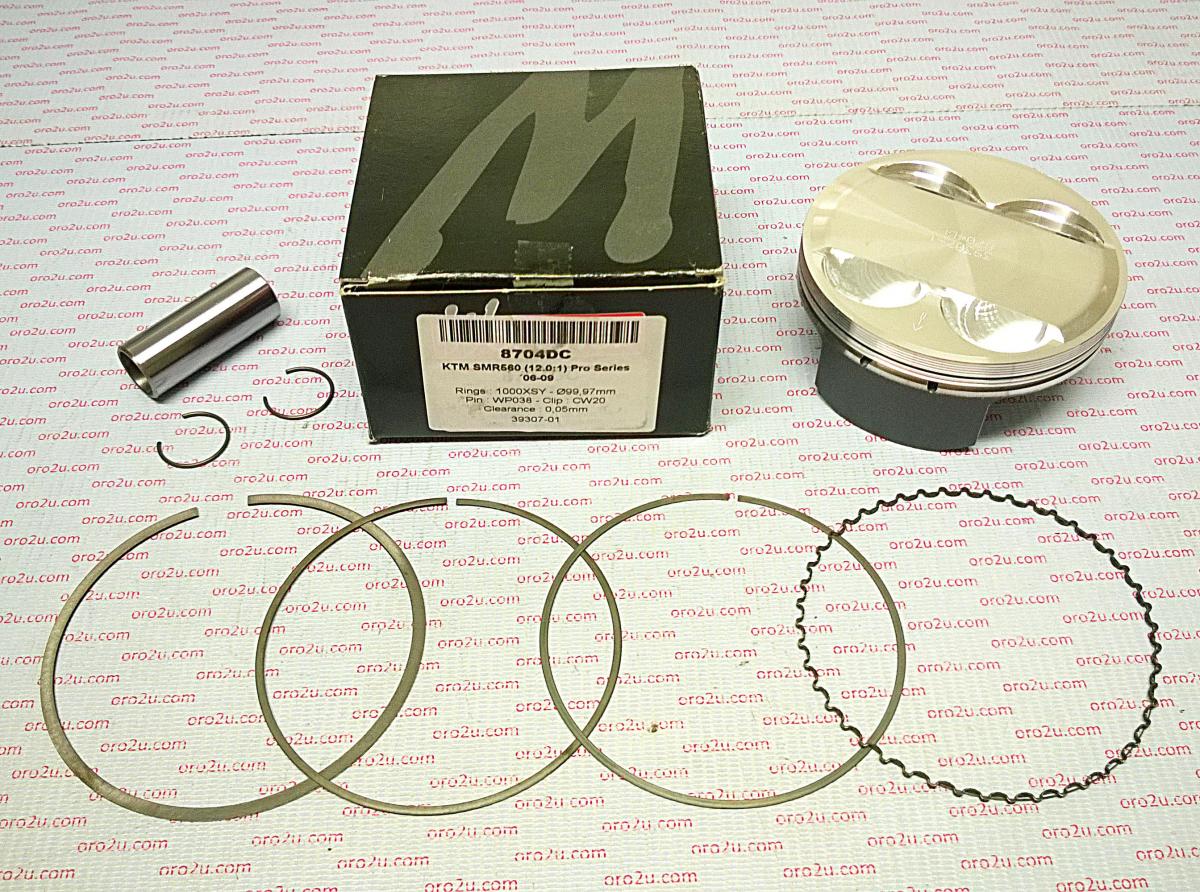

WOSSNER 100mm HC FORGED PISTON KIT C, KTM SMR 560 2006-2009

Wossner forged piston kit with a 100.02mm bore and 99.97mm diameter, designed for KTM SMR560 models. This high-compression piston (12.00:1) enhances performance and durability. Manufactured in Germany, it ensures optimal heat transfer to cylinder walls. Its elliptical design provides a uniform bearing surface under heat expansion, reducing localized pressure and evenly distributing thrust loads to prevent piston collapse.

Features

• Forged construction for superior strength
• High-compression ratio for increased performance
• Optimized heat transfer for efficient combustion
• Elliptical design for uniform load distribution
• Manufactured in Germany

Specifications

• Bore: 100.02mm
• Diameter: 99.97mm
• Display (cm³): 600
• Stroke (mm): 72.00
• Clearance (mm): 0.05
• Wossner Compression Ratio: 12.00:1
• OEM Compression Ratio: 11.00:1
• Dome Volume (cm³): +5.20
• Compression Height (mm): 23.40

Cross-Reference OEM Part Numbers

• Wossner Piston KTM SMR560 (PN# 8704DC)
• Lock P/N: CW20
• Pin P/N: WP038
• Ring Set P/N: 1000ADS-2

Vehicle Fitments

• KTM SMR560 (2006-2007)
