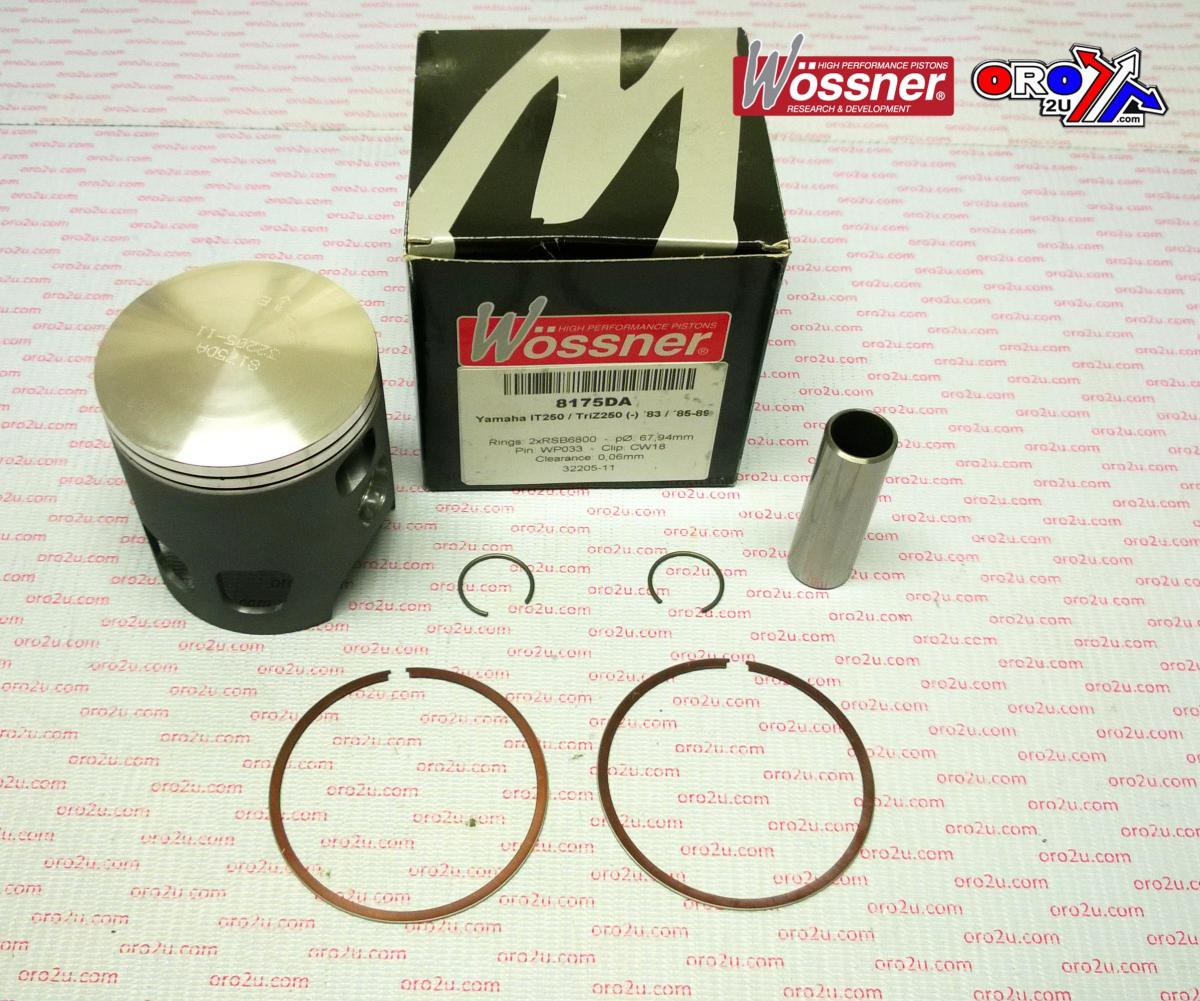

WOSSNER 69.5mm FORGED PISTON KIT YAMAHA IT250 1983, YTZ250 1985-1986

Wossner forged piston kit designed for superior strength and performance. Engineered for optimal heat transfer to cylinder walls, ensuring efficient combustion. The elliptical design provides a uniform bearing surface under heat expansion, reducing localized pressure and evenly distributing thrust loads to prevent piston collapse. Manufactured in Germany for high-quality standards.

Features

• Forged piston for enhanced strength and durability
• Optimized heat transfer for efficient combustion
• Elliptical design to prevent piston collapse
• Manufactured in Germany

Specifications

• Bore Size: 69.50mm
• Actual Bore Diameter: 68.94mm
• Displacement: 246 cm³
• Stroke: 68.00mm
• Clearance: 0.06mm
• Wossner Compression Ratio: 2-Stroke
• OEM Compression Ratio: 2-Stroke
• Compression Height: 35.80mm
• Theoretical Weight: Not specified

Included Components

• Lock Part Number: CW18
• Pin Part Number: WP033
• Ring Set Part Number: RSB6950 x 2

Vehicle Fitments

• Yamaha IT 250 (1983)
• Yamaha Tri-Z 250 (1985-1989)
