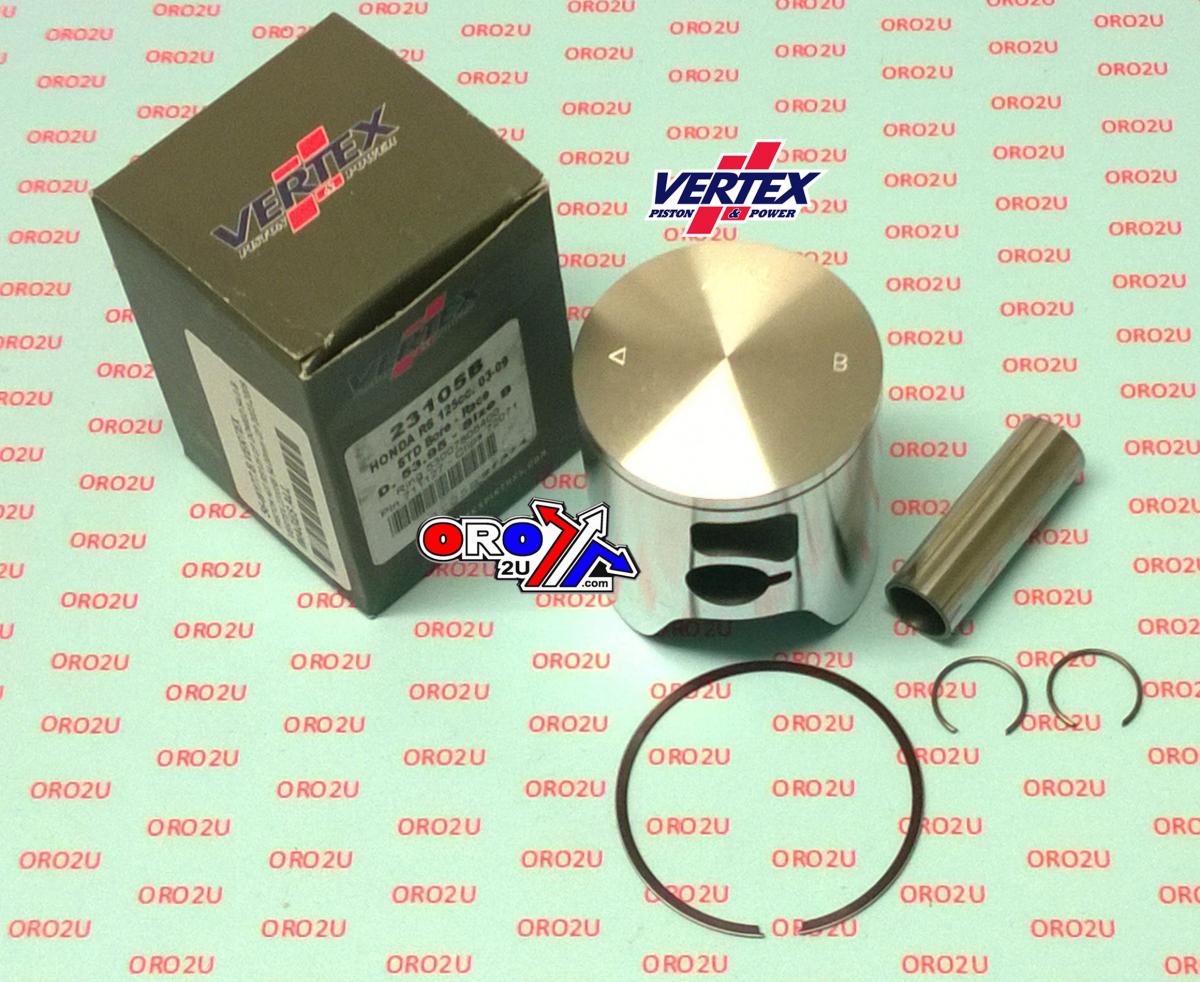

VERTEX 53.95mm PISTON KIT B,HONDA RS125/GP 03-07, DOMED PISTON

VERTEX UK PISTON KIT FORGED - 23105B 1-RING

Vertex "kit " �DOME TOP �piston for the Honda RS 125

These are a good alternative to the Standard HRC pistons at a much better price �

Piston kit comes with �.8mm flat ring Ring , Pin , and 2 x clips �

Its very important to prep them well , by champhering all the skirts ,and the ring groove ,as well as setting the ring gap , as the ring fits all sizes ( IE the biggest ) �

Ring gap is at the back , so runs over the rear boost port , requiring good champhering of the rear port .

I recommend the ring is changed half way through the 300 to 350 KM life of the piston , to prevent the ring locating tag breaking.

�All Vertex Pistons Feature: �
- Standard pistons and components are OEM replacements.
- Kits include piston, rings, wrist pin and circlips.
- All pistons are heat treated with a T-5 or T-6 hardening and tempering cycle.
- Replacement rings are sold individually.
- Made in Italy.
- Fitted in many oem bikes as STD.

�

SPECIFICATION:

• BORE SIZE. � 54.00mm � [B 53.95mm]

Replacement Parts.

• Rings. � 53007805400 Need 1,
• Pin. � � 711127,
• Clips. 72071,

MODEL FITMENT:

• HONDA RS125, GP, � 2003-2009 DOME

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
