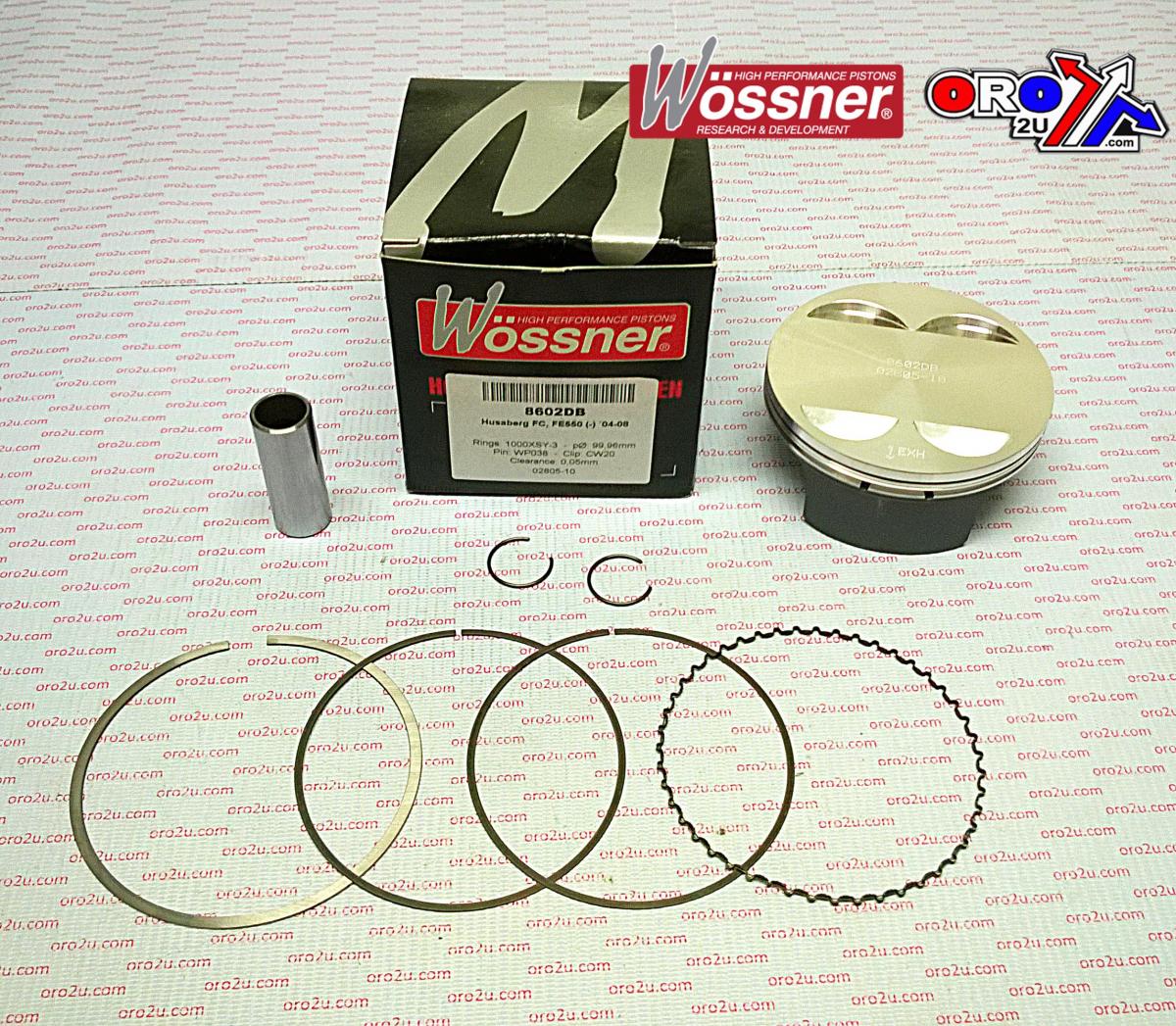

PISTON KIT 04-09 HUS 550FC WOSSNER 8602DA HUSABERG 100

Wossner forged piston kit with a 100mm bore, designed for Husaberg FC550 and FE550 models. Engineered for optimal combustion chamber heat transfer and uniform bearing surface under heat expansion, reducing localized pressure and piston collapse. Manufactured in Germany for durability and precision.

Features

• Forged piston for superior strength and design
• Optimized heat transfer to cylinder walls
• Elliptical design for uniform bearing surface and even thrust load distribution
• Manufactured in Germany

Specifications

• Bore: 100mm
• Standard size piston (PN# 8602DA)
• Lock Part Number: CW20
• Pin Part Number: WP038
• Ring Set Part Number: 1000XSY
• Displacement: 549 cm³
• Stroke: 70.00mm
• Clearance: 0.05mm
• Wossner Compression Ratio: 12.50:1
• OEM Compression Ratio: 11.80:1
• Dome Volume: -2.30 cm³
• Compression Height: 23.40mm

Cross-Reference OEM Part Numbers

• Not provided

Vehicle Fitments

• Husaberg FC 550 (2004-2008)
• Husaberg FE 550 (2004-2008)

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
