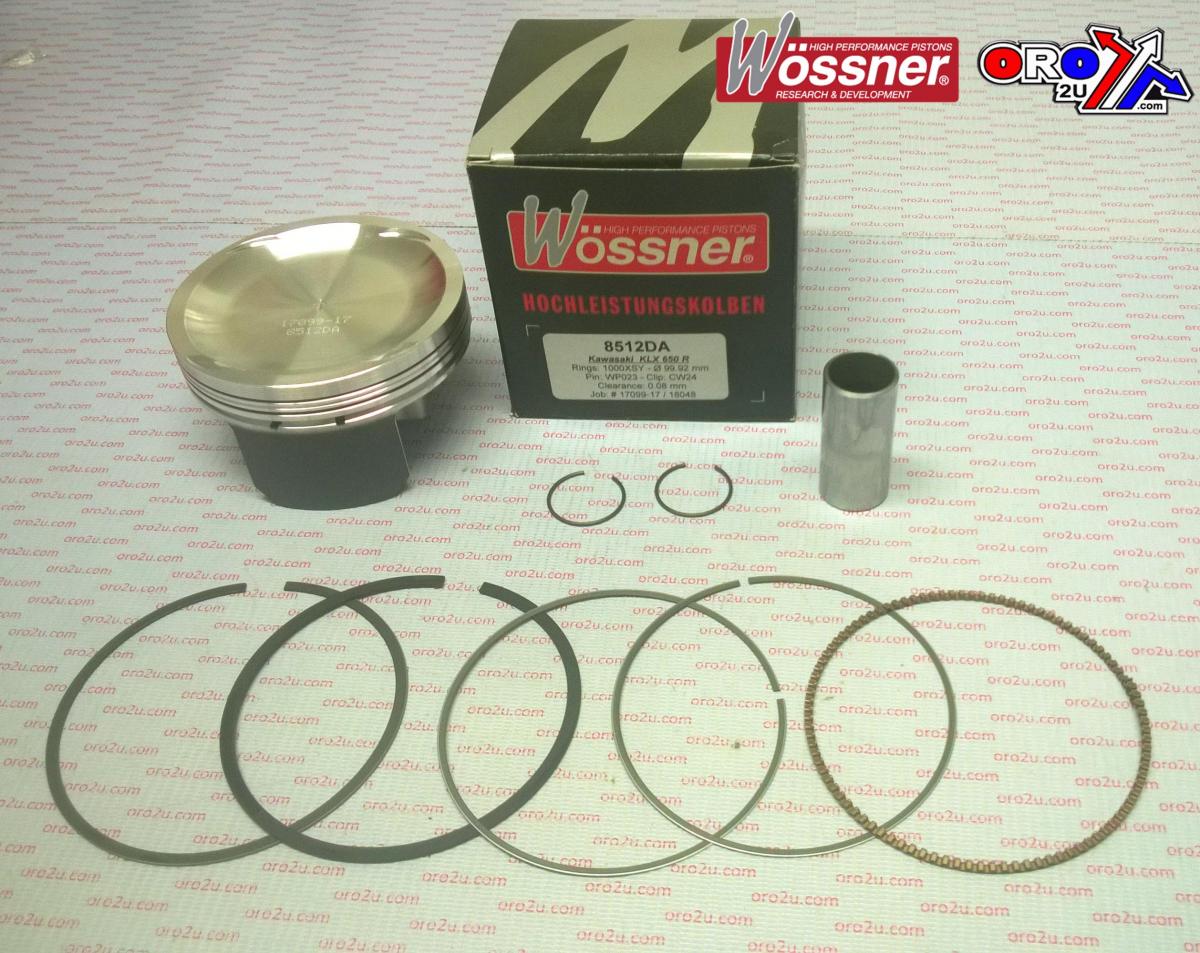

WOSSNER 102mm FORGED PISTON KIT KAWASAKI KLX650C 1993-1996

Wossner forged piston kit with a 102mm bore, designed for Kawasaki KLX650 models. Engineered for optimal combustion chamber heat transfer and uniform bearing surface under heat expansion, reducing localized pressure and piston collapse. Manufactured in Germany for durability and precision.

Features

• Forged piston for superior strength and design
• Optimized heat transfer to cylinder walls
• Elliptical design for uniform bearing surface and even thrust load distribution
• Manufactured in Germany

Specifications

• Bore: 102mm (+2.00mm oversize)
• Standard size piston (PN# 8512D200)
• Lock Part Number: CW24
• Pin Part Number: WP057
• Ring Set Part Number: 1020XSU
• Displacement: 651 cm³
• Stroke: 83.00mm
• Clearance: 0.06mm
• Wossner Compression Ratio: OEM
• OEM Compression Ratio: 9.50:1
• Dome Volume: -24.90 cm³
• Compression Height: 29.50mm

Cross-Reference OEM Part Numbers

• Not provided

Vehicle Fitments

• Kawasaki KLX650 (1993-1996)
• Kawasaki KLX650R (1996)

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
