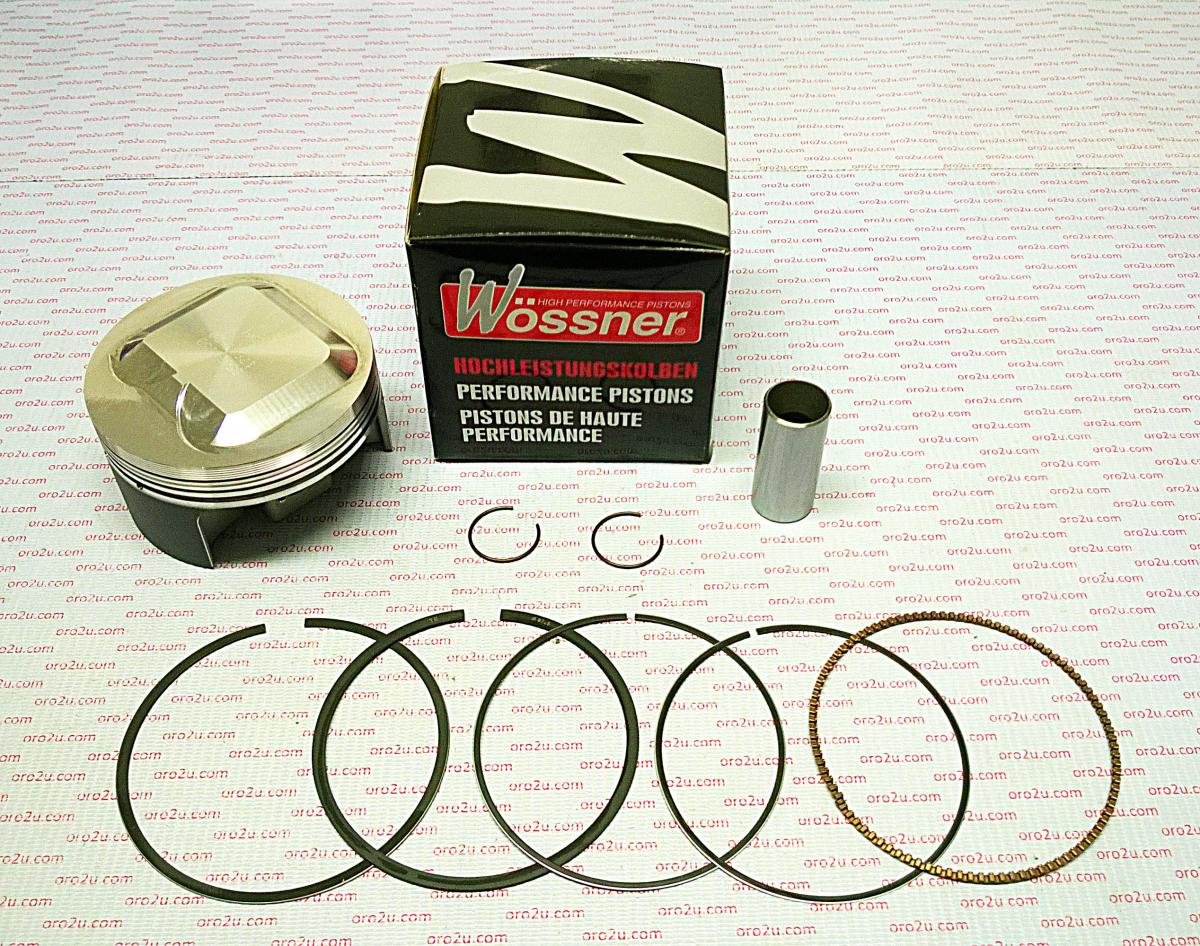

WOSSNER 97.5mm FORGED PISTON KIT KAWASAKI KLR600 1984-1987

• Piston Kit: Wossner 8509D150, with a 97.50mm bore (+1.50mm)
• Application: Kawasaki KLR600, produced between 1984 and 1985
• Features:
  • Wossner forged pistons known for superior strength and design
  • Engineered for efficient combustion chamber heat transfer to cylinder walls
  • Elliptical design for a more uniform bearing surface under piston heat expansion, preventing collapse
• Manufacturing: Made in Germany
• Additional Parts:
  • Lock: CW23
  • Pin: WP008
  • Ring Set: 975XSY
• Specifications:
  • Displacement: 564 cm³
  • Hub Stroke: 62.10mm
  • Clearance: 0.05mm
  • Compression Ratio: OEM specified (12.80:1)
  • Dome Volume: +0.90cm³
  • Compression Height: 23.70mm
  • Theoretical Weight: 259.00 grams

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
