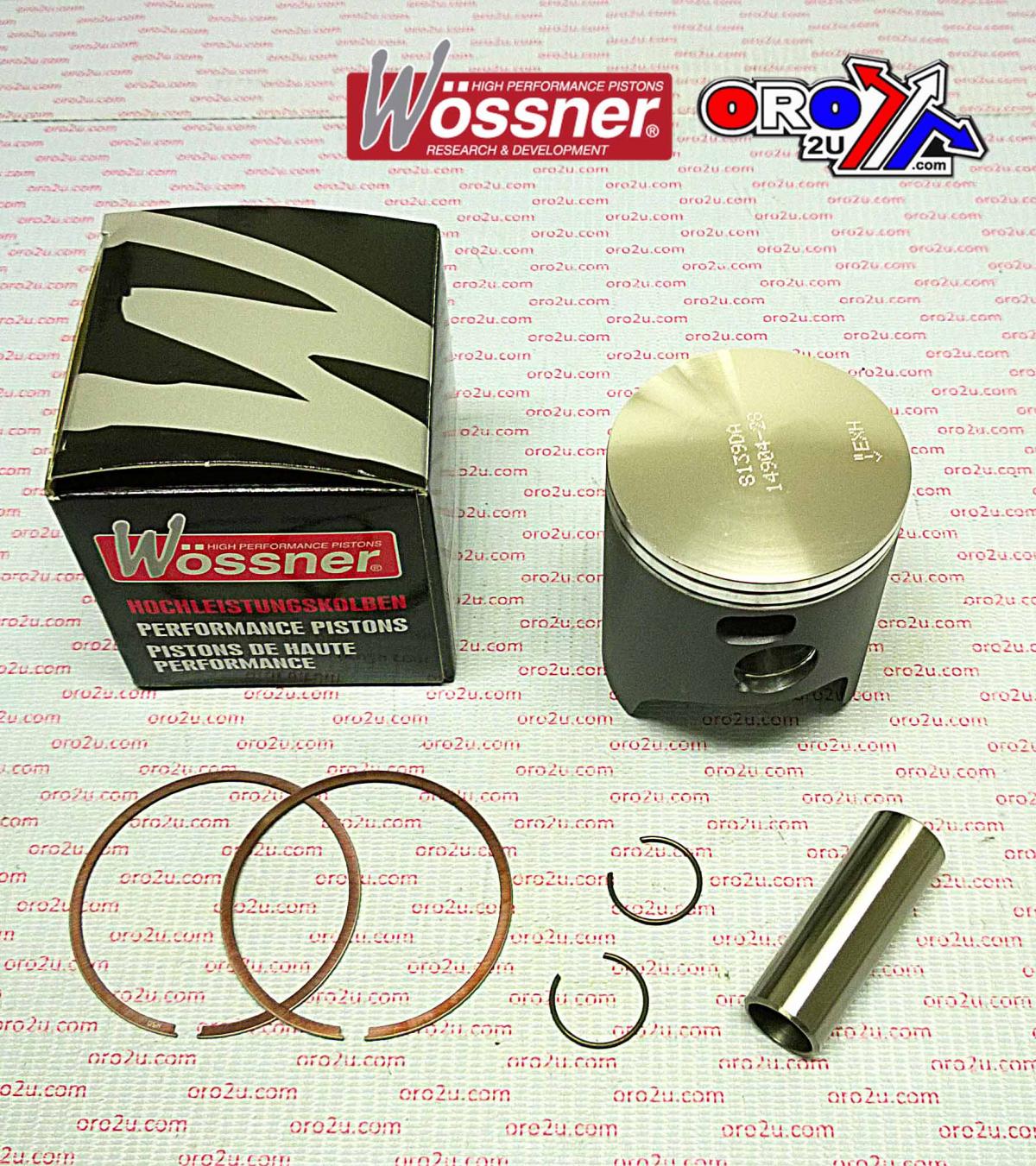

WOSSNER 62.45mm PISTON KIT A, GAS GAS EC200 00-14, EC200R 14-20

Wossner forged piston kit with a 62.50mm bore, designed for Gas Gas EC200 models. Engineered for optimal combustion chamber heat transfer and uniform bearing surface under heat expansion, reducing localized pressure and piston collapse. Manufactured in Germany for durability and precision.

Features

• Forged piston for superior strength and design
• Optimized heat transfer to cylinder walls
• Elliptical design for uniform bearing surface and even thrust load distribution
• Manufactured in Germany

Specifications

• Bore: 62.50mm
• Standard size piston (PN# 8139DA)
• Lock Part Number: CW18
• Pin Part Number: WP040
• Ring Set Part Number: RSB6250 x2
• Displacement: 175 cm³
• Stroke: 65.00mm
• Clearance: 0.05mm
• Wossner Compression Ratio: 2-stroke
• OEM Compression Ratio: 2-stroke
• Compression Height: 32.00mm

Cross-Reference OEM Part Numbers

• 09104843
• 848M06250

Vehicle Fitments

• Gas Gas EC200 (2000-2014)

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
