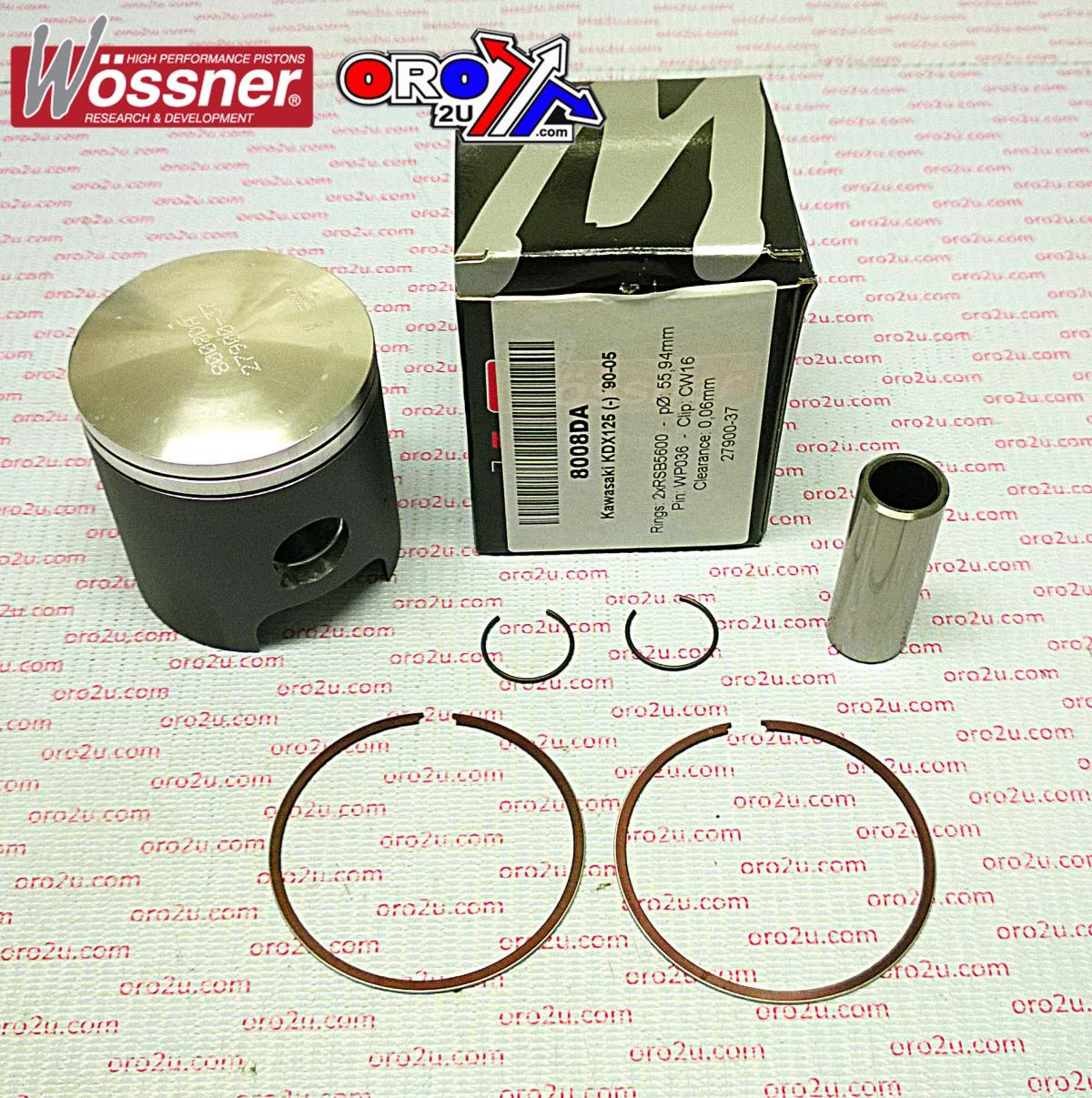

WOSSNER 56mm FORGED PISTON KIT KAWASAKI KDX125 1990-2005

Wossner forged piston kit designed for Kawasaki KDX 125 models with a 56.00mm bore. Engineered for optimal heat transfer and uniform bearing surface distribution, preventing piston collapse. Manufactured in Germany for durability and precision.

Features

• Forged construction for superior strength and durability
• Optimized heat transfer for improved engine performance
• Elliptical design ensures even pressure distribution, reducing localized stress
• Manufactured in Germany for high-quality performance

Specifications

• Bore Size: 56.00mm
• Actual Bore: 55.94mm
• Displacement: 125 cm³
• Stroke: 54.40mm
• Clearance: 0.06mm
• Compression Ratio: 2-Stroke
• Compression Height: 32.80mm
• Lock Part Number: CW16
• Pin Part Number: WP036
• Ring Set Part Number: RSB5400 (2x)

Cross-Reference OEM Part Numbers

• Wossner Piston Part Number: 8008DA
• Equivalent Part Numbers: 13001-1346, 09104707

Vehicle Fitments

• Kawasaki KDX 125 (1990-2005)

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
