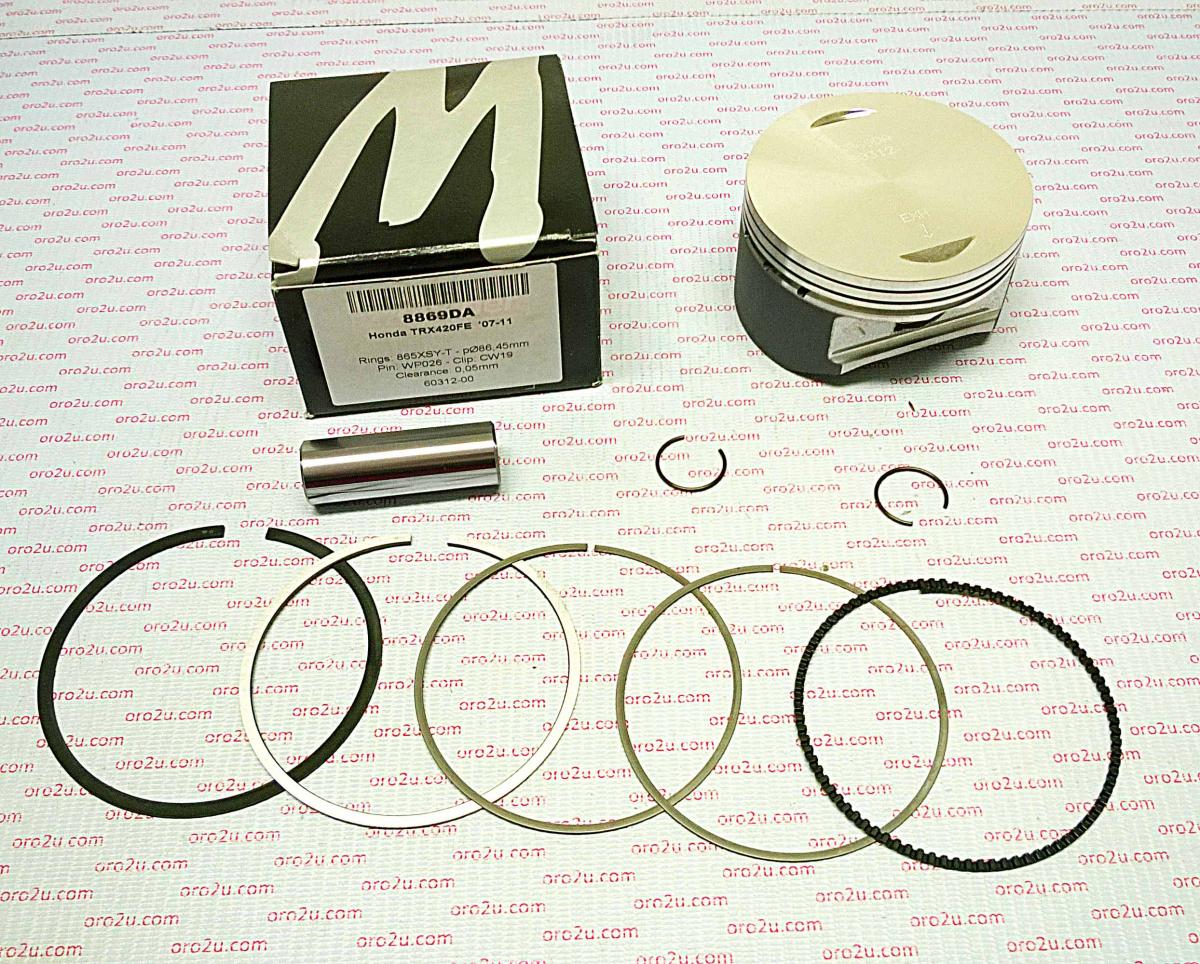

PISTON KIT 07-13 TRX420 86.50 8869DA WOSSNER FORGED RANCHER

• Piston Kit: Wossner 8869DA, with an 86.50mm bore (STD)
• Application: Honda TRX420FA/FE/FM/TE/TM/FPA/FPE/FPM Rancher, spanning the years 2007 to 2020
• Features:
  • Wossner forged pistons known for superior strength and design
  • Engineered for efficient combustion chamber heat transfer to cylinder walls
  • Elliptical design for a more uniform bearing surface under piston heat expansion, preventing collapse
• Manufacturing: Made in Germany
• Additional Parts:
  • C-Clip: CW19
  • Pin: WP026
  • Rings: 865XSY
  • Size: 86.45mm
• Specifications:
  • Displacement: 420 cm³
  • Hub Stroke: 72.00mm
  • Clearance: 0.06mm
  • Compression Ratio: Wossner (not specified), OEM (not specified)
  • Dome Volume: Not provided
  • Compression Height: 38.00mm
  • Theoretical Weight: Not provided

Additionally, here are some cross-reference numbers:

• 13101-HP5-600
• 40050M08650
• 01.1487.000

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
