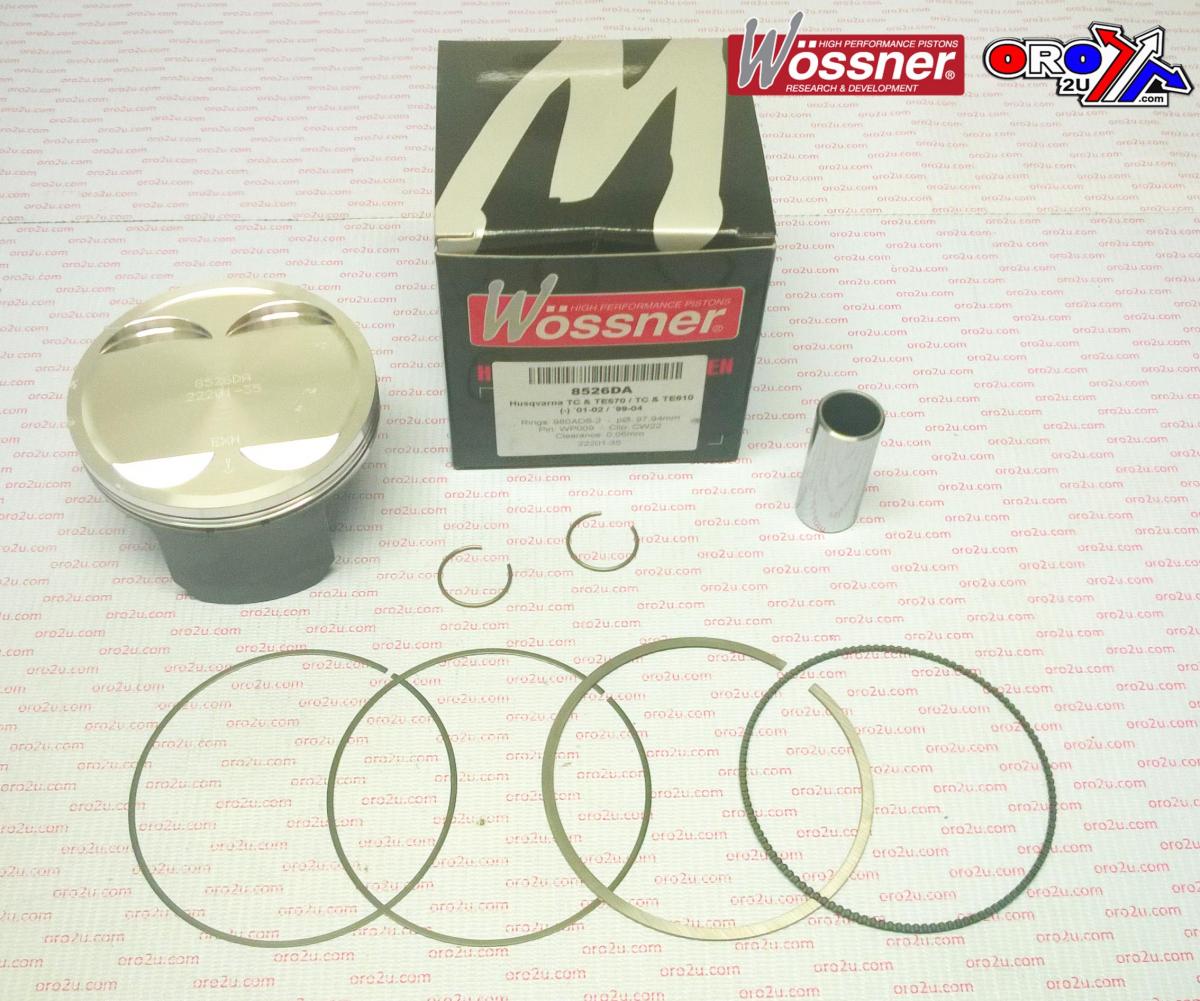

WOSSNER 97.95mm PISTON KIT B, HUSQVARNA TC/TE 610 99-04, TE/TC570 01-02

Piston Kit 98.00mm Bore 97.95 Wossner 8526DB (+0.01)

Husqvarna

• TC 610: 2001 - 2002
• TE 570: 2001 - 2002

Features:

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

• Wossner Piston: Husqvarna TC570 98.01 mm Bore (PN# 8526DB)
• Lock P/N: CW22
• Pin P/N: WP009
• Ring Set P/N: 980ADS-2

Specifications:

• Display (cm3): 577
• Hub stroke (mm): 76.40
• Clearance (mm): 0.06
• Wossner compression Ratio: OEM
• OEM Compression ratio: 10.00:1
• Dome volume (cm3): -5.40
• Compression height (mm): 25.00

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
