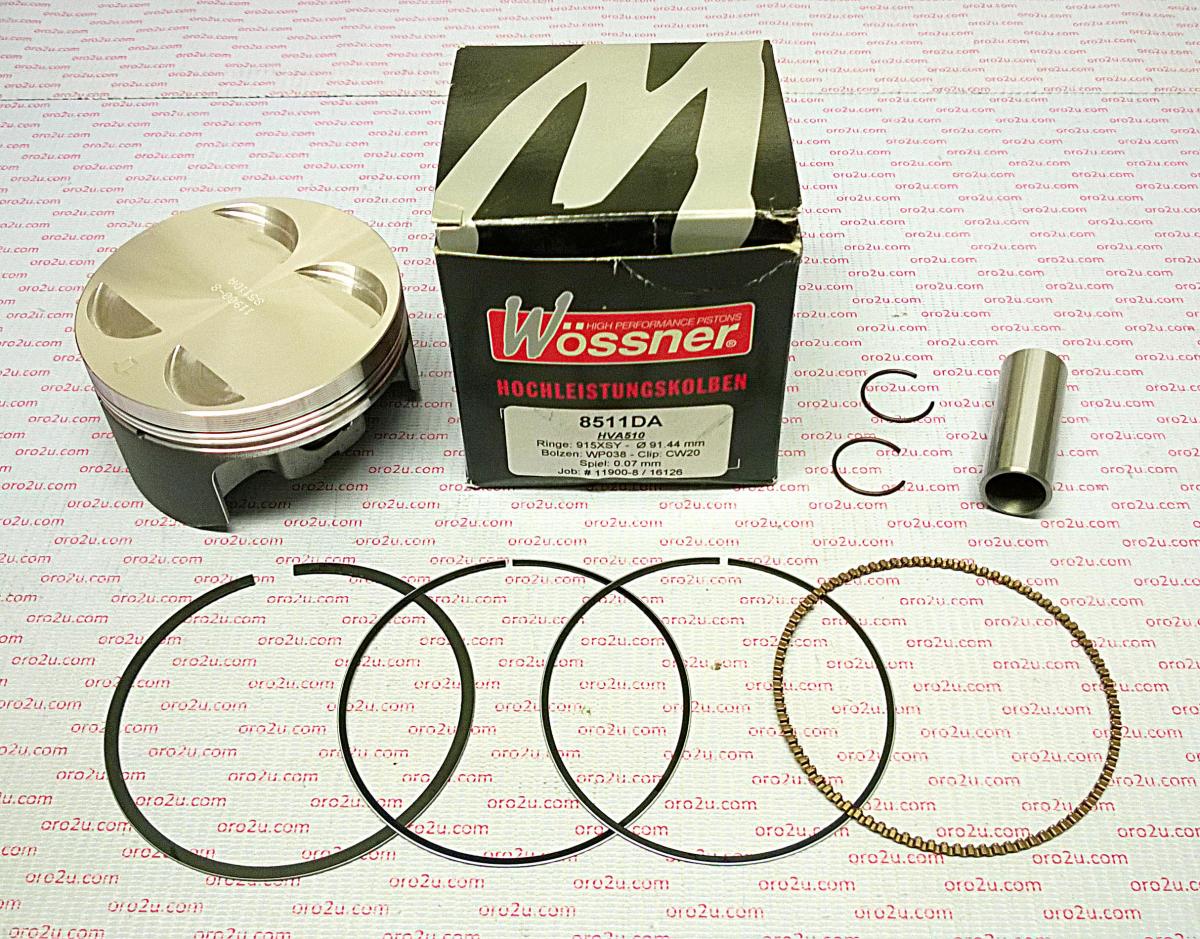

PISTON KIT 87-90 510cc 92.00 WOSSNER 8511D050 HUSQVARNA

Piston Kit 92.00mm Bore 91.94 Wossner 8511D050 (+0.50) �

Husqvarna
TC 510 1987 - 1990,
TE 510 1987 - 1990,
WRE 510 1987 - 1990,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

PART NO. 56-W105_0.50 (oro2u.com)
Wossner Piston Husqvarna TE510 92 mm Bore (PN# 8511D050)
Lock P/N CW20
Pin P/N WP038
Ring Set P/N 920XSY

Display (cm3) 503
Hub stroke (mm) 76.50
Clearance (mm) 0.06
Wossner compression Ratio: OEM
OEM Compression ratio: 12.00:1
Dome volume (cm3) -2.60
Compression height (mm) 30.00
Theorectical weight (G)

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
