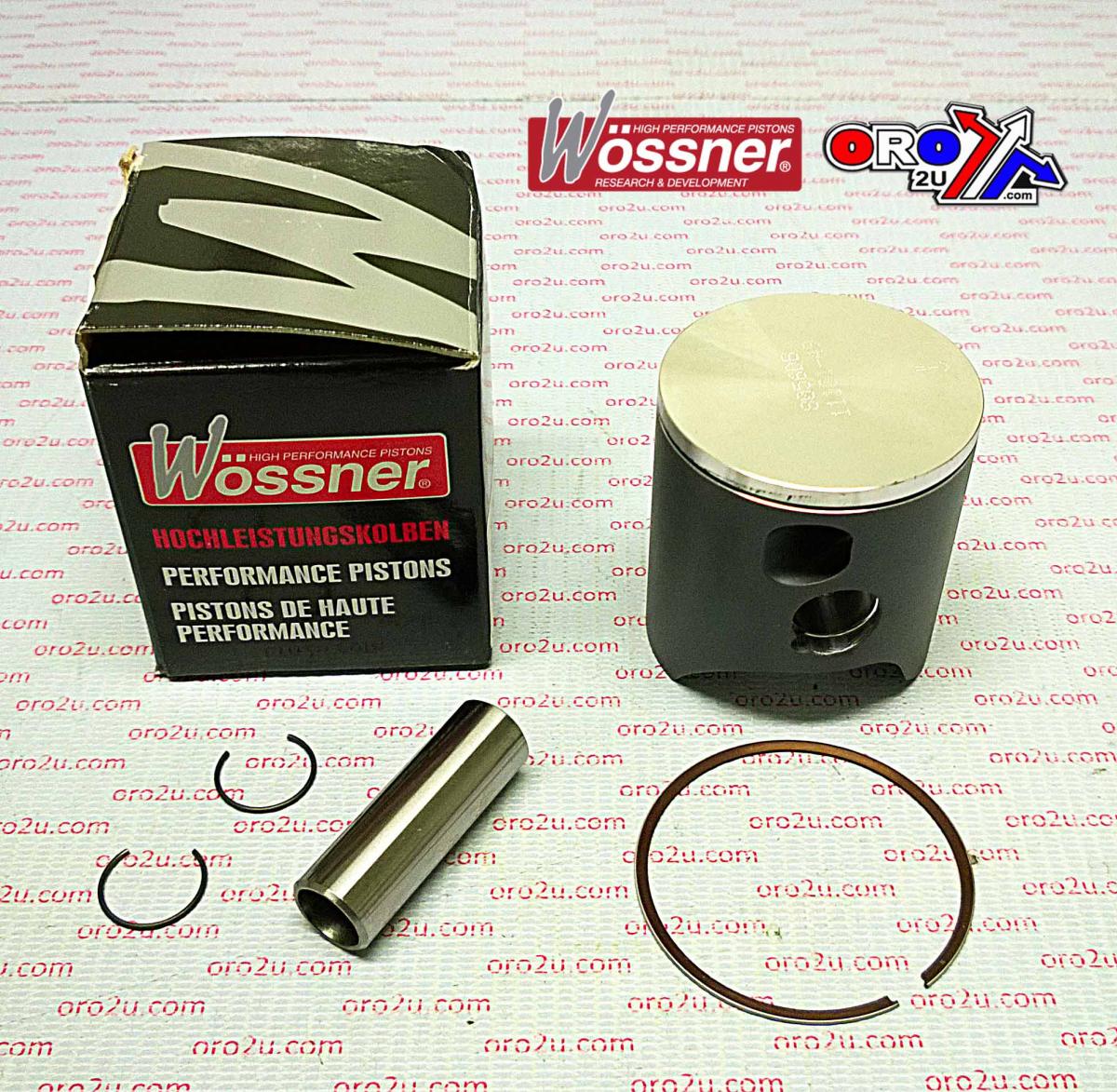

PISTON KIT 01-06 KTM125 SX 54 WOSSNER 8056DA, 1-RING

This Wossner 8056DA (STD) piston kit features a 54.00mm bore and is designed for KTM SX 125 models from 2001 to 2006. Made in Germany, this forged piston offers superior strength and heat transfer efficiency. Its elliptical design ensures even thrust load distribution, reducing the risk of piston collapse.

Features

• Wossner forged piston for enhanced strength and durability
• Optimized heat transfer for improved engine performance
• Elliptical design to prevent localized pressure buildup
• Designed for single-ring applications
• Made in Germany

Specifications

• Bore Size: 54.00mm
• Actual Piston Diameter: 53.95mm
• Hub Stroke: 54.50mm
• Clearance: 0.05mm
• Compression Height: 29.50mm
• Wossner Compression Ratio: 2-stroke
• OEM Compression Ratio: 2-stroke

Cross-Reference OEM Part Numbers

• 50430007100
• 09104766
• 836M05400
• 50330007500 I / 50330207100 I
• 50330007500 II / 50330207100 II

Vehicle Fitments

• KTM SX 125 (2001-2006) (Single Ring)

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
