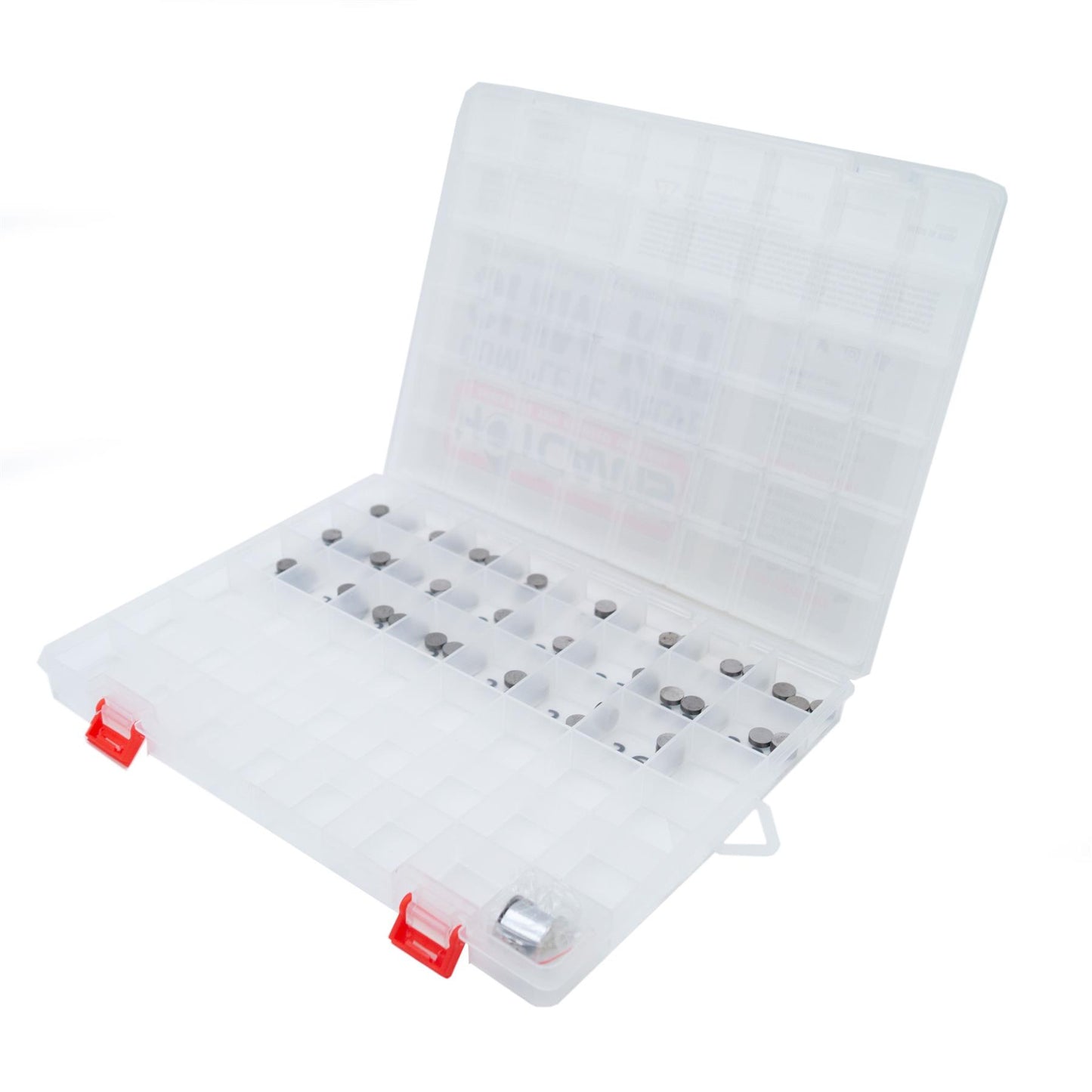

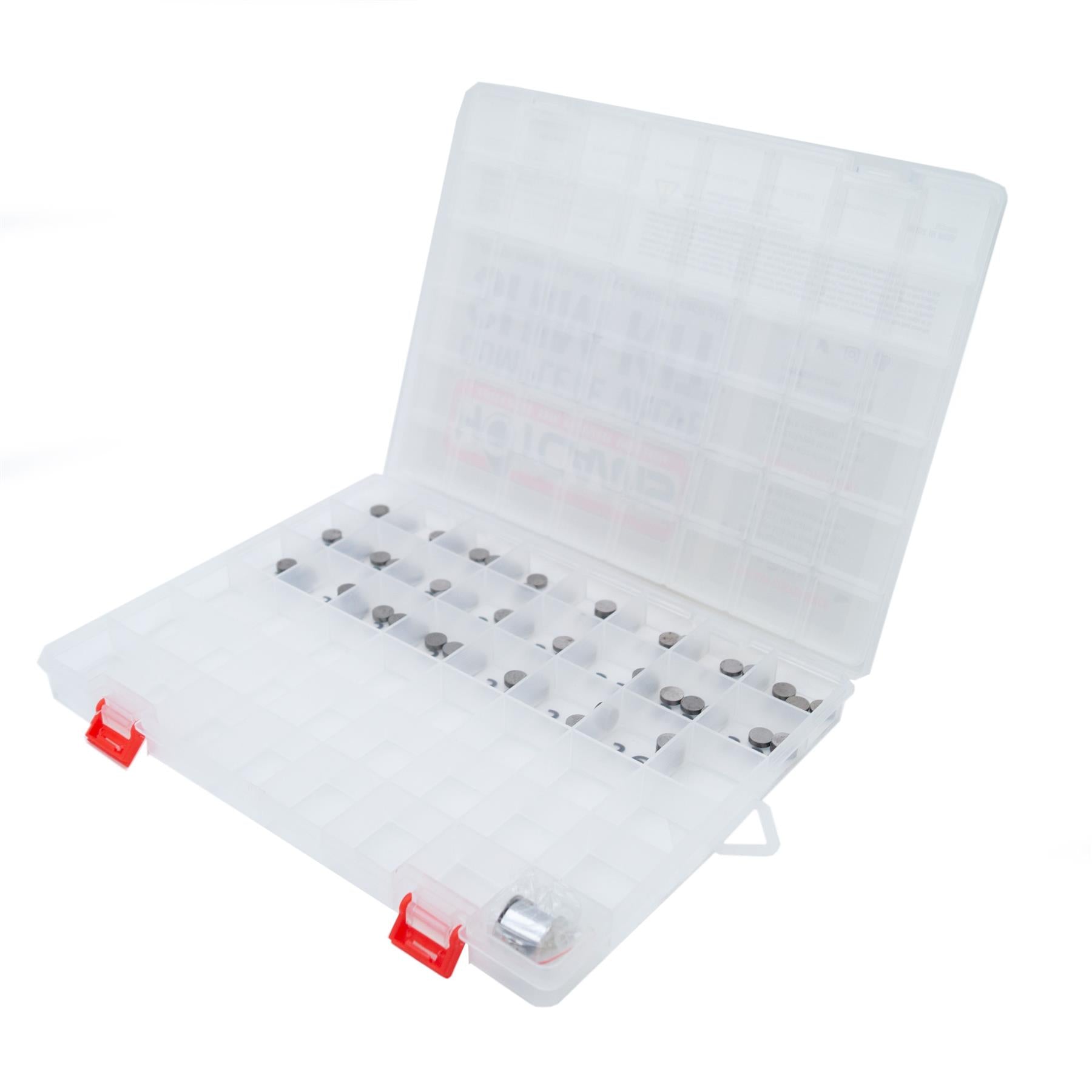

VALVE SHIM KIT 8.90mm 69pcs

The Hot Cams 8.9mm Valve Shim Kit (HCSHIM00) is designed for use in KTM engines, providing precision shims for valve adjustments. The kit includes three 8.90mm O.D. shims in each size, ranging from 1.72mm to 2.60mm in 0.04mm increments. Refill shims are available separately in packs of five.

Features

• Fits all KTM motors requiring 8.90mm diameter shims
• Includes three shims per size in 0.04mm increments from 1.72mm to 2.60mm
• Refill shims sold separately in 5-pack quantities
• Ensures precise valve clearance adjustments

Specifications

• Diameter: 8.90mm
• Type: Valve Shim Kit
• Units: Each
• Weight: 0.55 lbs

Cross-Reference OEM Part Numbers

• 09250332

Vehicle Fitments

• KTM 250 SX-F (2005-2015)
• KTM 250 XC-F (2007-2018)
• KTM 250 XCF-W (2007-2016)
• KTM 250 XCF-W Champions Edition (2010)
• KTM 250 XCF-W Six Days (2011)
• KTM 350 SX-F (2011-2018)
• KTM 450 SX-F (2007-2018)
• KTM 450 XC-F (2008-2009)
• KTM 505 SX-F (2008)
• KTM 505 XC-F (2008-2009)
