FULL CYLINDER KIT 92.00mm HONDA TRX500FE/FM FOURTRAX 05-11, TRX500TM 05-06

This 92.00mm cylinder kit is a high-quality replacement for Honda TRX500 Fourtrax Foreman models. Designed to meet OEM specifications, the kit includes everything needed for a complete top-end rebuild. It provides reliable performance, durability, and ease of installation.

Features:

• Includes cylinder, piston, rings, pin, clips, and top-end gasket kit.
• Cast piston with high silicone content for added strength.
• Piston skirts are Molybdenum Teflon coated to reduce wear.
• Anodized piston dome for superior heat resistance.
• Gaskets made from performance-grade materials for reliability.
• Direct OEM replacement with no modifications required.
• Designed with cast iron sleeves for improved wear resistance.

Specification:

• Piston Material: Forged Aluminum
• Actual Displacement: 475cc
• Bore Size: STD 92 mm
• Piston Diameter: 91.96 mm
• Piston Height: 59.23 mm
• Piston Pin Diameter: 20 mm
• Piston Pin Height: 62 mm
• Sleeve: Cast Iron, Reboreable liner
• Cylinder Material: JIS AC4B-T6 Aluminum, Hardness HR65up

Cross-Reference OEM Part Numbers:

• Cylinder: 12100-HP0-A00
• Cylinder Base Gasket: 12191-HP0-A00
• Cylinder Head Gasket: 12251-HP0-A00
• Cylinder Head Cover Gasket: 12315-HP0-A00
• Ring Set: 13010-HP0-A01
• Piston Pin: 13111-HN2-000

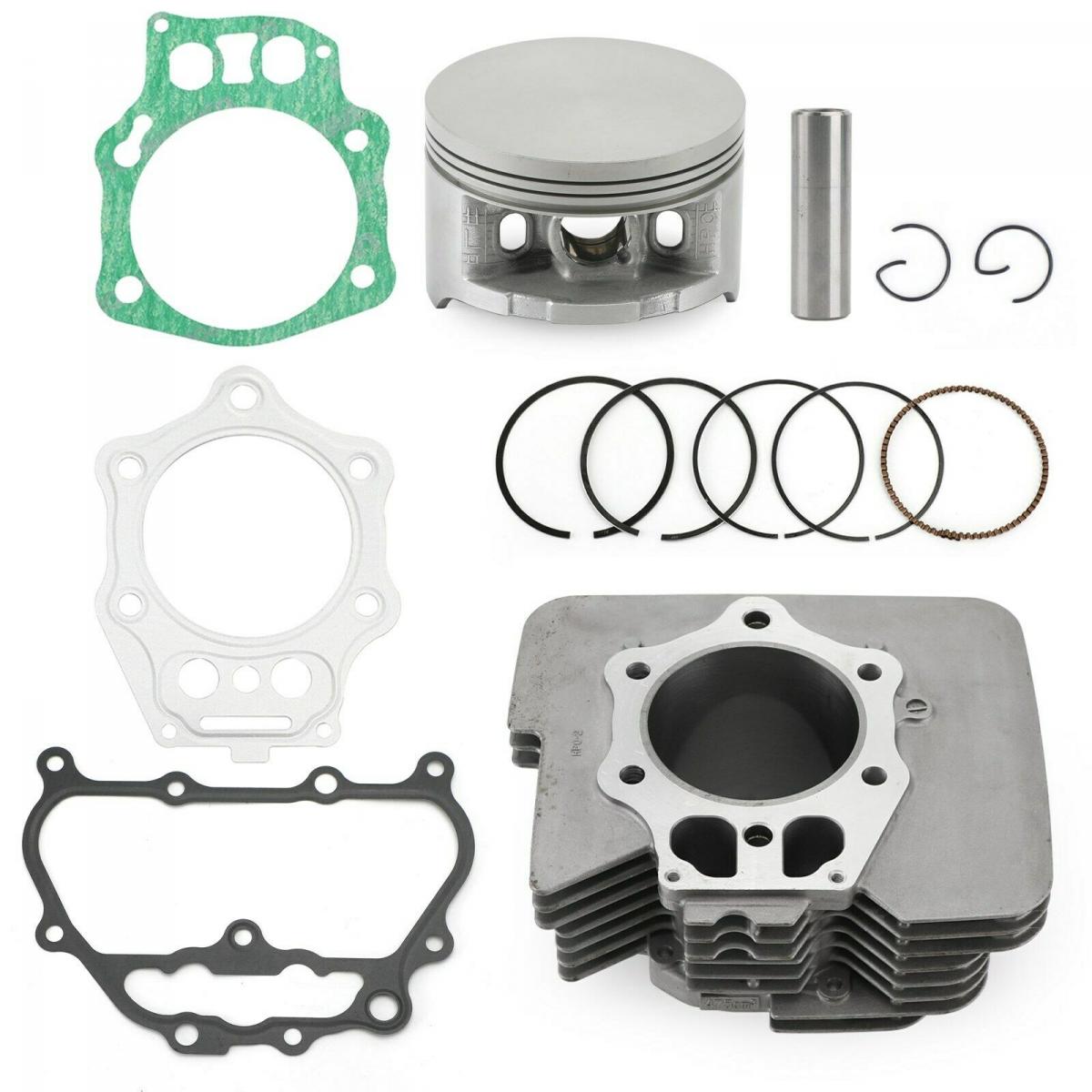

Package Includes:

• 1x Cylinder
• 1x Piston(STD)
• 1x Piston Ring Set
• 1x Wristpin
• 1x Circlip(2)
• 1x Cylinder Base Gasket
• 1x Cylinder Head Gasket
• 1x Cylinder Head Cover Gasket

Compatible Honda ATV Models:

• 2009 TRX500FM A - FOURTRAX FOREMAN Cylinder
• 2011 TRX500FPM A- FOREMAN Cylinder
• 2007 TRX500FPE A - FOURTRAX FOREMAN 4X4 ES Cylinder
• 2008 TRX500FM 2A - FOURTRAX FOREMAN 4X4 Cylinder
• 2005 TRX500TM A - FOURTRAX FOREMAN Cylinder
• 2005 TRX500FM A - FOURTRAX FOREMAN 4X4 Cylinder
• 2009 TRX500FPM A - FOREMAN P/S Cylinder
• 2011 TRX500FPE A - FOREMAN ES Cylinder
• 2011 TRX500FPE 2A - FOREMAN ES Cylinder
• 2007 TRX500FE A - FOREMAN 4X4 ES Cylinder
• 2011 TRX500FM 2A - FOREMAN Cylinder
• 2011 TRX500FM A - FOREMAN Cylinder
• 2009 TRX500FM 2A - FOURTRAX FOREMAN Cylinder
• 2009 TRX500FE 2A - FOURTRAX FOREMAN ES Cylinder
• 2009 TRX500FE A - FOURTRAX FOREMAN ES Cylinder
• 2007 TRX500FM 2A - FOURTRAX FOREMAN 4X4 Cylinder
• 2007 TRX500FPE 2A - FOURTRAX FOREMAN 4X4 ES Cylinder
• 2007 TRX500FM A - FOURTRAX FOREMAN 4X4 Cylinder
• 2011 TRX500FPM 2A - FOREMAN Cylinder
• 2011 TRX500FE A - FOREMAN ES Cylinder
• 2011 TRX500FE 2A - FOREMAN ES Cylinder
• 2005 TRX500FE A - FOURTRAX FOREMAN 4X4 ES Cylinder
• 2009 TRX500FPM 2A - FOREMAN P/S Cylinder
• 2009 TRX500FPE 2A - FOREMAN P/S ES Cylinder
• 2009 TRX500FPE A - FOREMAN P/S ES Cylinder
• 2008 TRX500FPM A - FOURTRAX FOREMAN 4X4 Cylinder
• 2008 TRX500FPM 2A - FOURTRAX FOREMAN 4X4 Cylinder
• 2008 TRX500FE 2A - FOURTRAX FOREMAN 4X4 ES Cylinder
• 2008 TRX500FE A - FOURTRAX FOREMAN 4X4 ES Cylinder
• 2007 TRX500FE 2A - FOURTRAX FOREMAN 4X4 ES Cylinder
• 2006 TRX500FM A - FOURTRAX FOREMAN 4X4 Cylinder
• 2008 TRX500FPE 2A - FOURTRAX FOREMAN 4X4 ES Cylinder
• 2008 TRX500FM A - FOURTRAX FOREMAN 4X4 Cylinder
• 2008 TRX500FPE A - FOURTRAX FOREMAN 4X4 ES Cylinder
• 2006 TRX500FE A - FOURTRAX FOREMAN 4X4 ES Cylinder
• 2006 TRX500TM A - FOURTRAX FOREMAN Cylinder

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
