ATHENA FULL CYLINDER KIT YAMAHA MT125 15-16, 63mm BIG BORE, With Piston and CDI

ATHENA Big Bore Cylinder Kit � 63 mm, 182 cc - P400485100055 (Includes Piston and CDI)

Description

Athena has been constantly investing in cylinder aftermarket replacement parts for more than ten years, to improve their production and performance. All the cylinders are entirely engineered in Italy by Athena�s R&D Department which has a strong internal know-how and cutting-edge tools to design and test each piece. They are coated with motor-nicksil, a nickel-silicon coating developed by Athena to obtain smoothness and optimal wear resistance.

Athena�s cylinder kits and its components are recognized worldwide for their performance, durability and reliability.

Athena�s Big Bore Cylinder Kits guarantees an increase in performance that can be observed along the power curve, keeping the reliability at the same level of the original components.

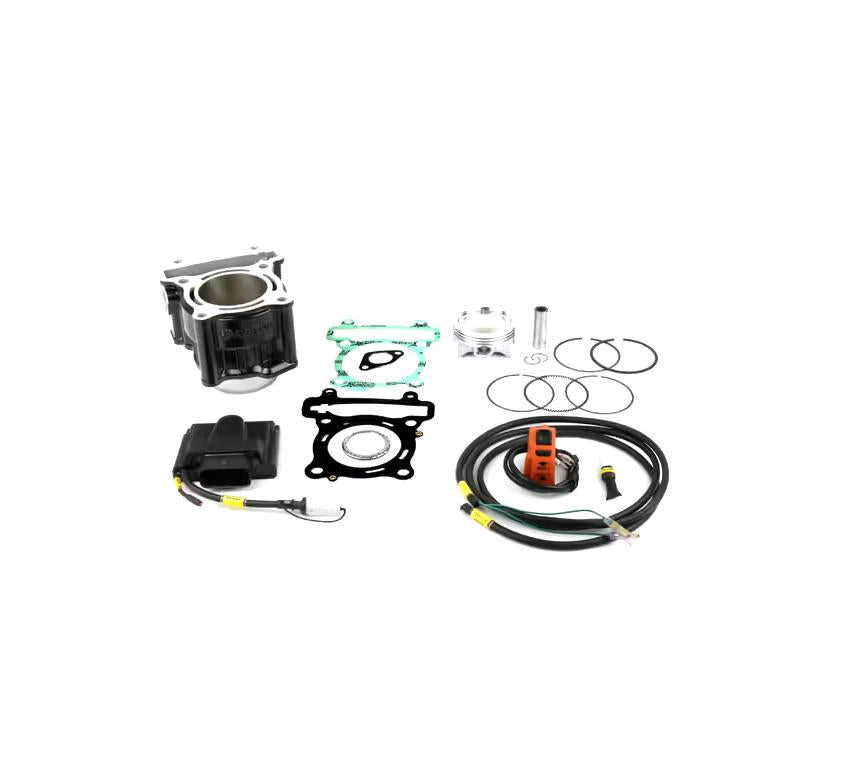

The kit includes the complete piston with the piston pin and rings, all the necessary gaskets and increased bore aluminum cylinder with CNC machining to grant tolerances of a hundredth of a millimeter during the whole production process.

The kit also includes a Plug & Play replacement CDI designed by GET technicians, which can be installed directly using the original connector and wiring.

All the components of the kit have been developed to withstand the highest temperatures, pressures and stresses and have been validated by Athena technicians with severe bench and road tests.

This cylinder kit can be installed without making any changes to the engine crankcase.

CAUTION! All Athena products must be used in compliance with the specific national regulations of the member state where it is being marketed or sold. Athena declines all responsibility for any improper use.

Technical features

• Bore Diameter (mm) 63.00
• Displacement (cc) 182
• Net Weight (Kg) 1.87

Partner Cross Reference code and Optional Parts

• S4C06300002A COMPLETE PISTON 62,95mm
• S4C06300002B COMPLETE PISTON 62,96mm
• P400485160020 GASKET KIT 63mm
• S41316168 PISTON RING

�

Vehicle compatibility

• YAMAHA MT 125 cc 2015/2016

Part No. 56-K176.63.CKA

�

�

�

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
