ATHENA FULL CYLINDER KIT KTM 350 SX-F 11-15, HUSQVARNA FC350 14-15, Big Bore

ATHENA Big Bore Cylinder Kit Ø 90 mm, 365 cc - P400270100005 (Includes Piston)

Athena has been constantly investing in cylinder aftermarket replacement parts for more than ten years to improve their production and performance. All the cylinders are entirely engineered in Italy by Athena’s R&D Department, which has a strong internal know-how and cutting-edge tools to design and test each piece. They are coated with motor-nicksil, a nickel-silicon coating developed by Athena to obtain smoothness and optimal wear resistance.

Athena’s cylinder kits and its components are recognized worldwide for their performance, durability, and reliability.

Athena’s Big Bore Cylinder Kits guarantee an increase in performance that can be observed along the power curve, keeping the reliability at the same level as the original components.

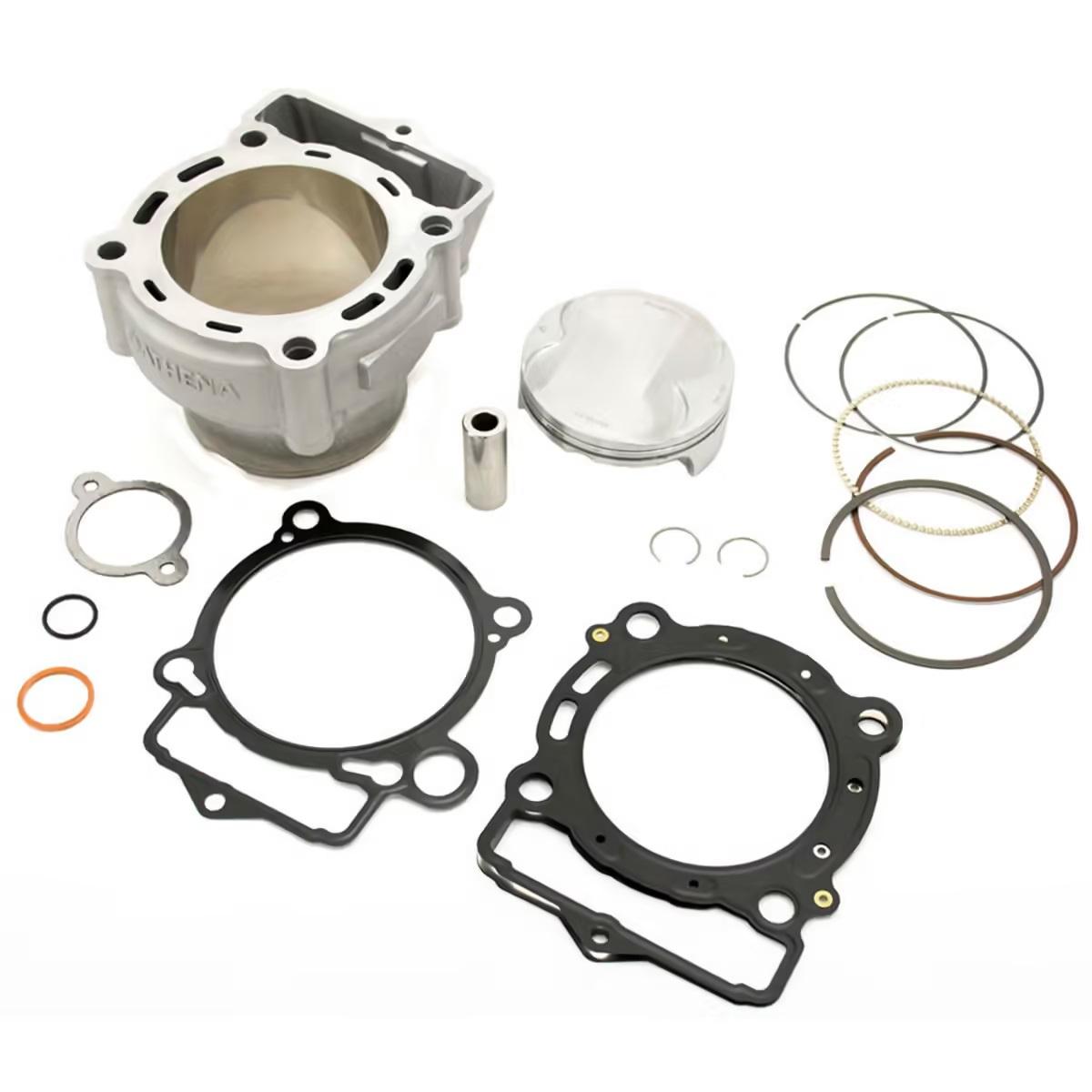

The kit includes the high-quality aluminium cylinder with increased bore, the complete piston with the piston pin and rings, and all the necessary gaskets.

All the components of the kit have been developed to withstand the highest temperatures, pressures, and stresses and have been validated by Athena technicians with severe bench and road tests.

This cylinder kit can be installed without making any changes to the engine crankcase.

CAUTION! All Athena products must be used in compliance with the specific national regulations of the member state where it is being marketed or sold. Athena declines all responsibility for any improper use.

Technical Features:

• Bore Diameter (mm): 90.00
• Compression Ratio: 14.0:1
• Displacement (cc): 365
• Net Weight (Kg): 1.71

Vehicle Compatibility:

• HUSQVARNA FC Ktm engine 350 cc 2014/2015
• KTM SX-F 350 cc 2011/2015
• KTM XC-F 350 cc 2011/2013

Part No.: 56-K152.90.KIT

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
