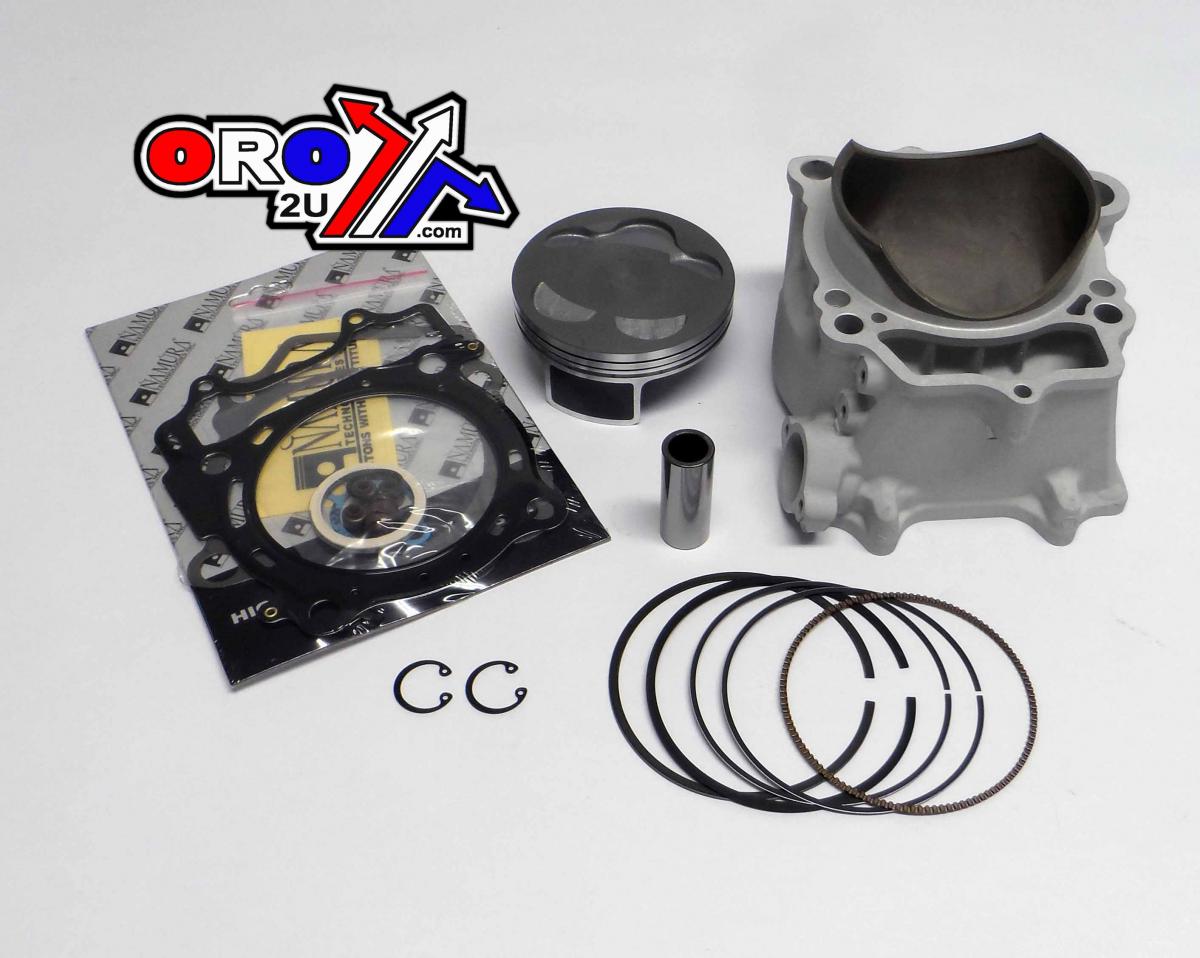

COMPLETE CYLINDER KIT YAMAHA YFZ450R 2009-2020

YAMAHA ATV Parts:

• YFZ450R 2009 - 2020
• YFZ450X 2010 - 2011

CYLINDER REBUILD KIT STD BORE 95.00mm

• Brand New and Designed Strictly Off the OEM Specifications.
• Cast from AB4C Aluminum with Nikasil Plated Sleeves.
• Most Cylinders are Simple Drop-in Install with No Case Modifications Necessary.

Cylinder Details:

• Sleeve: Nikasil
• Hardness: HV500~600
• Thickness: 0.08 +/- 0.02mm
• Cylinder Material: JIS AC4B-T6 Aluminum, Hardness HR65up

Part No.: 56-K136.95.KIT )

Cross-reference numbers ONLY:

• Piston: NA-40009H
• Gasket, Cylinder Head: 2S2-11181-00-00
• Gasket, Cylinder BASE: 2S2-11351-00-00
• Cylinder: 2S2-11311-10-00 / 2S2-11311-11-00
• Piston (Std): 5TG-11631-11-00 / 5TG-11631-12-00
• Piston Ring Set (Std): 5TG-11603-00-00
• Pin, Piston: 5TG-11633-10-00
• Circlip: 93450-22027-00
• PSYCHIC AT-09472K

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
