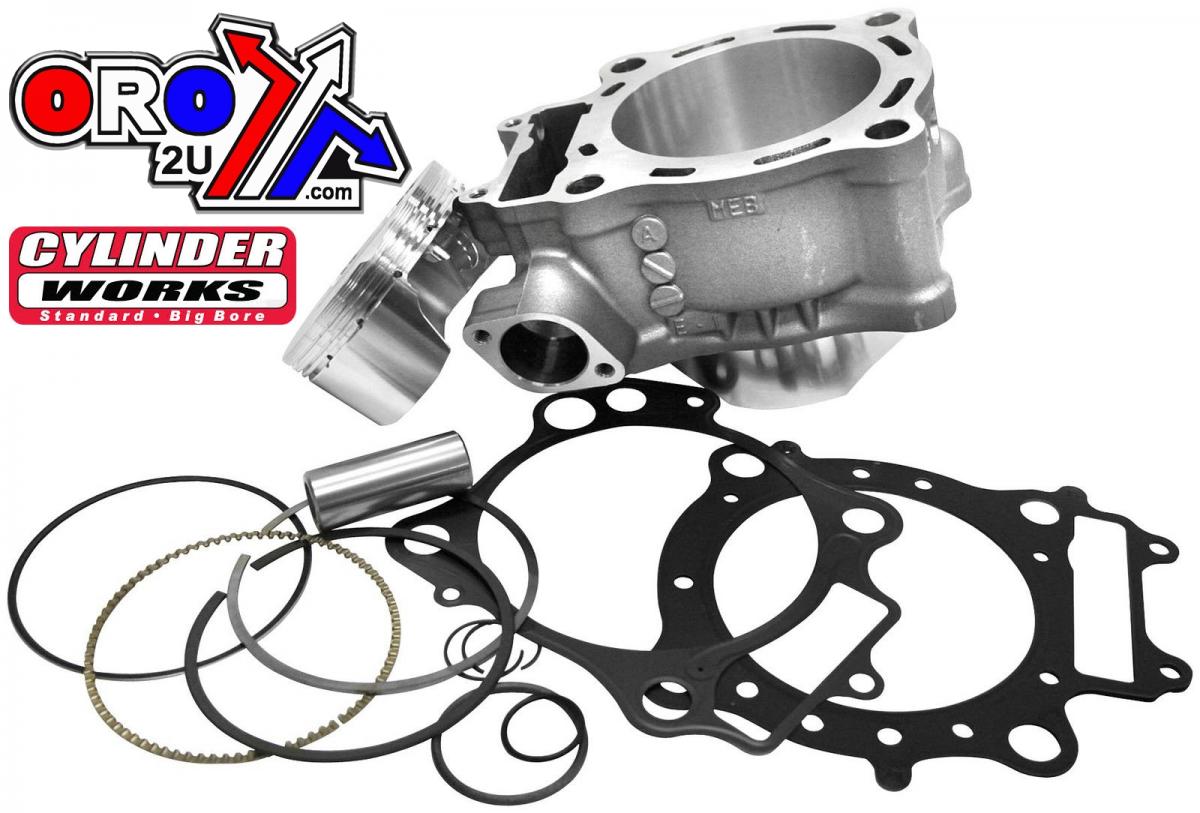

CYLINDER WORKS, FULL CYLINDER KIT SUZUKI RM-Z 250 2007-2009

The Cylinder Works +3mm Big Bore Complete Cylinder Kit increases the displacement of Suzuki RM-Z250 models to 269cc. This direct bolt-on kit is engineered for seamless installation and provides OEM-like performance with enhanced power output.

Features:

• Increases displacement to 269cc with a +3mm big bore cylinder.
• Nickel Silicon Carbide plating ensures durability and long service life.
• Direct bolt-on installation; no replating or additional machining required.
• Precisely honed for easy piston installation.
• Includes all necessary components for a complete top-end rebuild.

Included Components:

1. Cylinder
2. Top-end gasket set
3. Piston assembly (piston, rings, pin, clips)

Specifications:

• Bore size: 80mm
• Displacement: 269cc
• Compression ratio: 13.4:1
• Piston type: Vertex #23678

Cross-Reference Part Numbers:

• P400510100010
• 0931-0350
• 733851
• HR41003K01
• 77002-13
• 11211-10H00-0F0

Vehicle Fitments:

• Suzuki RM-Z250: 2007–2009

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
