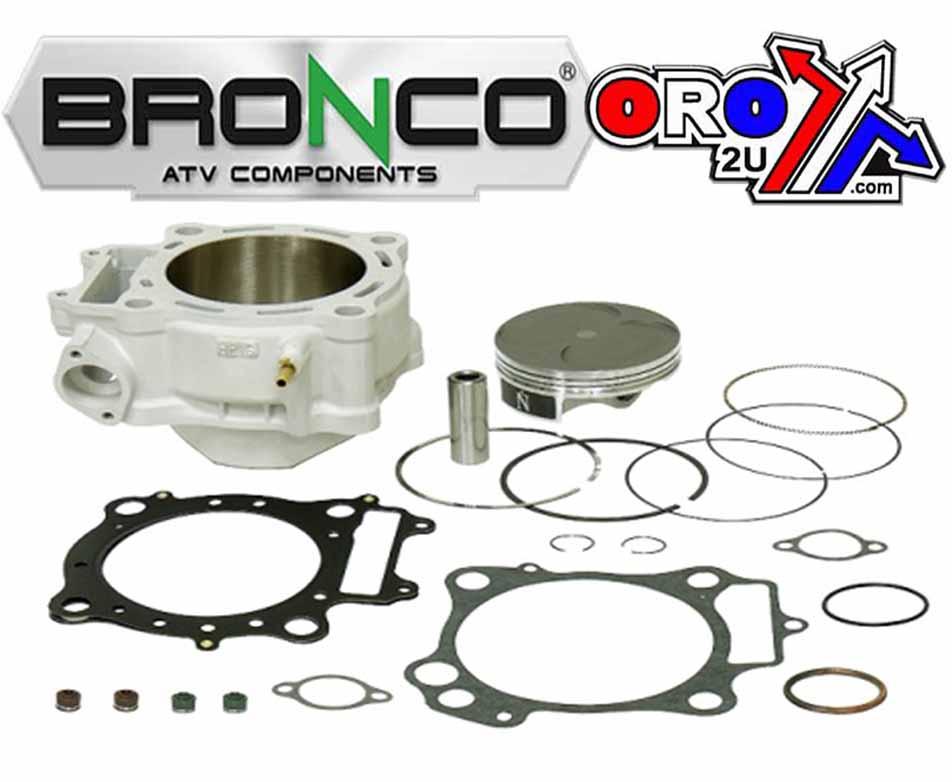

CYLINDER KIT HONDA TRX450R 2006-2009, TRX450ER 2006-2014

HONDA
TRX450R 2006-2009,
TRX450ER 2006-2014,

CYLINDER REBUILD KIT. BORE 96.00mm BRONCO AT-09479

- BRAND NEW AND DESIGNED STRICTLY OFF THE OEM SPECIFICATIONS.
- CAST FROM AB4C ALUMINUM WITH NIKASIL PLATED SLEEVES.
- PSYCHIC CYLINDERS TO HAVE SOME OF THE BEST WEAR CAPABILITIES IN THE MARKET.
- MOST CYLINDERS ARE SIMPLE DROP IN INSTALL WITH NO CASE MODIFICATIONS NECESSARY.

- Sleeve. Nikasail.
- Hardness HV500~600.
- Thickness 0.08 +/- 0.02mm.
- Cylinder Material JIS AC4B-T6 Aluminum, hardness � HR65up.

Part No. 56-K118.100.CBR

Cross reference numbers ONLY.
AT-09479 Cylinder (STD), 12100-HP1-601,
NA-10046 Namura piston kit, 13101-HP1-600 , 13011-HP1-306 , 13111-MEN-73, 13112-MAT-000,
NA-10047T Namura top end gasket set, GASKET 12191-HP1-601 / 12251-MEY-671

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
