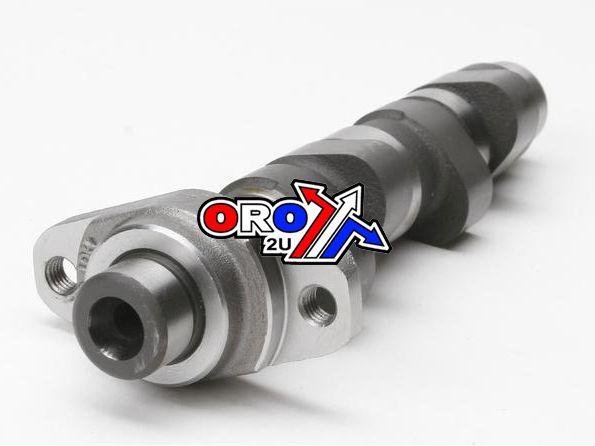

HOT CAMS CAMSHAFT HONDA XR400R 96-04, TRX400EX 99-08, TRX400X 09-14

CAMSHAFT Hot Cams Stage 1 Cam - 10071

HONDA
TRX400EX 1999 - 2008,
TRX400X 2009-2014,
�
XR400R 1996 - 2003,

Stage 1. Excelent midrange and top-end increase. ''Very close to HRC cam peak power. with more bottom and midrange. (uses stock valve springs & rockers)

Lift (mm) = 9 Intake Duration (@1mm) = 246 degrees Lift (mm) = 9

Exhaust Duration (@1mm) = 246 degrees

Cross reference numbers ONLY
14000-HN1-000, 10071,

2008 Honda TRX400EX 2007 Honda TRX400EX 2006 Honda TRX400EX 2000 Honda TRX400EX FourTrax 1999 Honda TRX400EX FourTrax 2005 Honda TRX400EX Sportrax 2004 Honda TRX400EX Sportrax

Part no 56-C201.HC

Technical Specifications:

Exhaust Duration (Degrees at 1mm):

246.00

Exhaust Lift (mm):

9.00

Exhaust Lobe Center (Degrees):

107.00

Exhaust Valve Lash (mm):

.15

Intake Duration (Degrees at 1mm):

246.00

Intake Lift (mm):

9.00

Intake Lobe Center (Degrees):

106.00

Intake Valve Lash (mm):

.13

Shim Kit:

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
