CON ROD KIT HONDA ATC185/200 1980-1986, XL125/185 1979-1983
CON ROD KIT HONDA ATC185/200 1980-1986, XL125/185 1979-1983
Couldn't load pickup availability
HONDA
XL125S / XL185 XR200,
ATC200 / TRX200,
ATC185 1980-1986,
ATC185 1980
ATC185S � � 1981-1983
ATC200 � 1981-1983
ATC200ES � � Big Red 1984
ATC200M � 1984-1985
ATC200S � Big Red 1984-1986
ATC200X � � 1983-1985
TRX200 � � Fourtrax 200 1984
HONDA JH12,

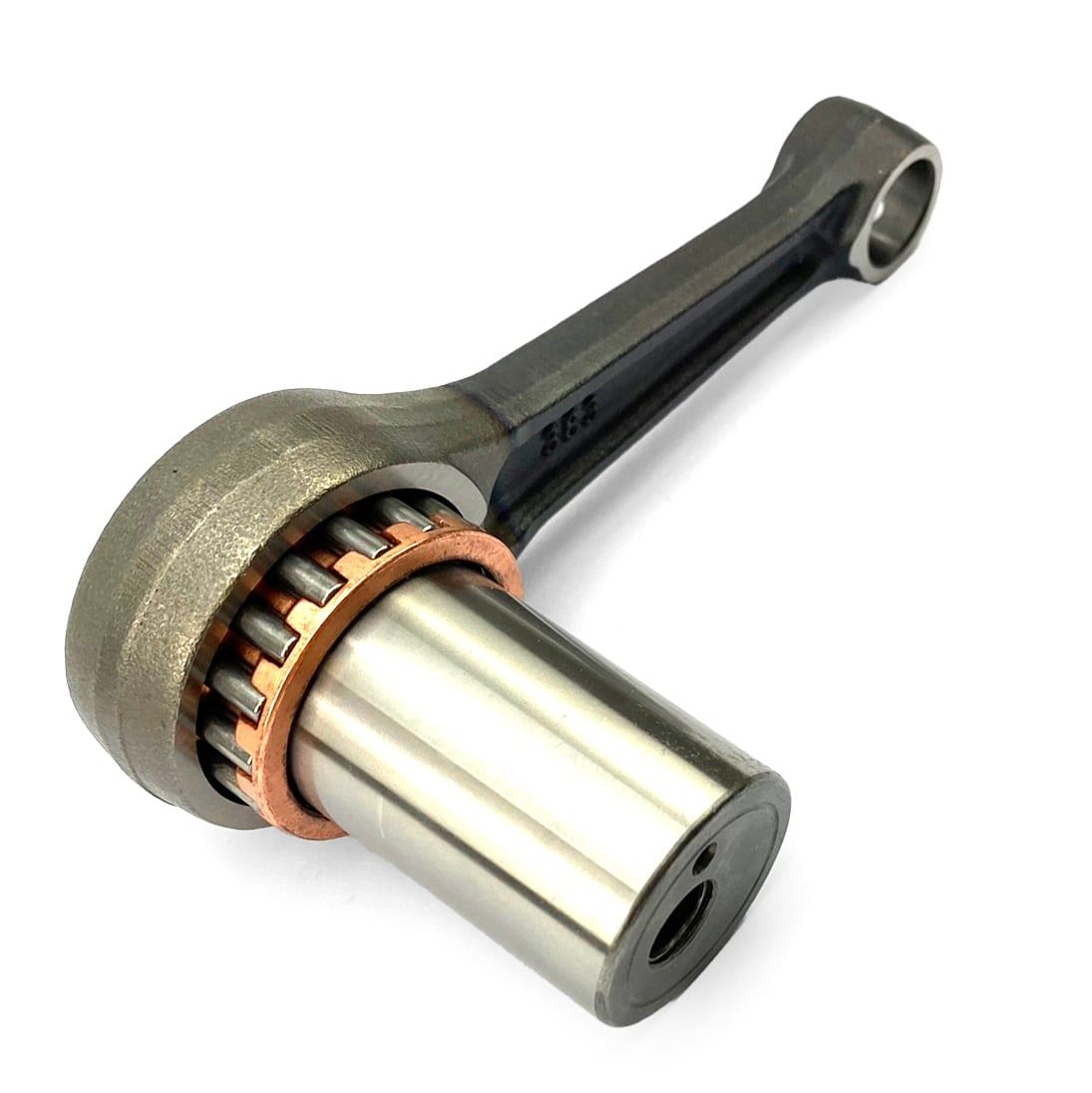

CONNECTING CONROD ROD REBUILD KIT.
- OE replacement connecting rods.
- Certified Chorme alloy steel provides superior strength.
- Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
- Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
- Thrust washers are manufactured from bronze phosphor and are silver coated.
- Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
- Fully Compatible with after market and OE crankshafts.
- Material SNCM220,
| SIZE | MM |
| Centre 2 Centre | 103.50 |
| Small End Bearing | None. |
| Small End Bore � | 15 |
| Small End Width | 16 |
| Big End Bearing | 30x38x15.80 |
| Big End Bore � | 38 |
| Big End Width | 16 |
| Big End Pin � | 30 |
| Big End Pin Length | 54.00 |
| Washer Thickness | None |
Part No. 56-994.DR (Distributed by .com)
Cross reference numbers ONLY.
VA-1005 [103], VA-1004, RH-1020 [437], 13201-437-300, Prox 03.1253, L23-11010 13202-437-300
Share
SKU:REF 56-994
