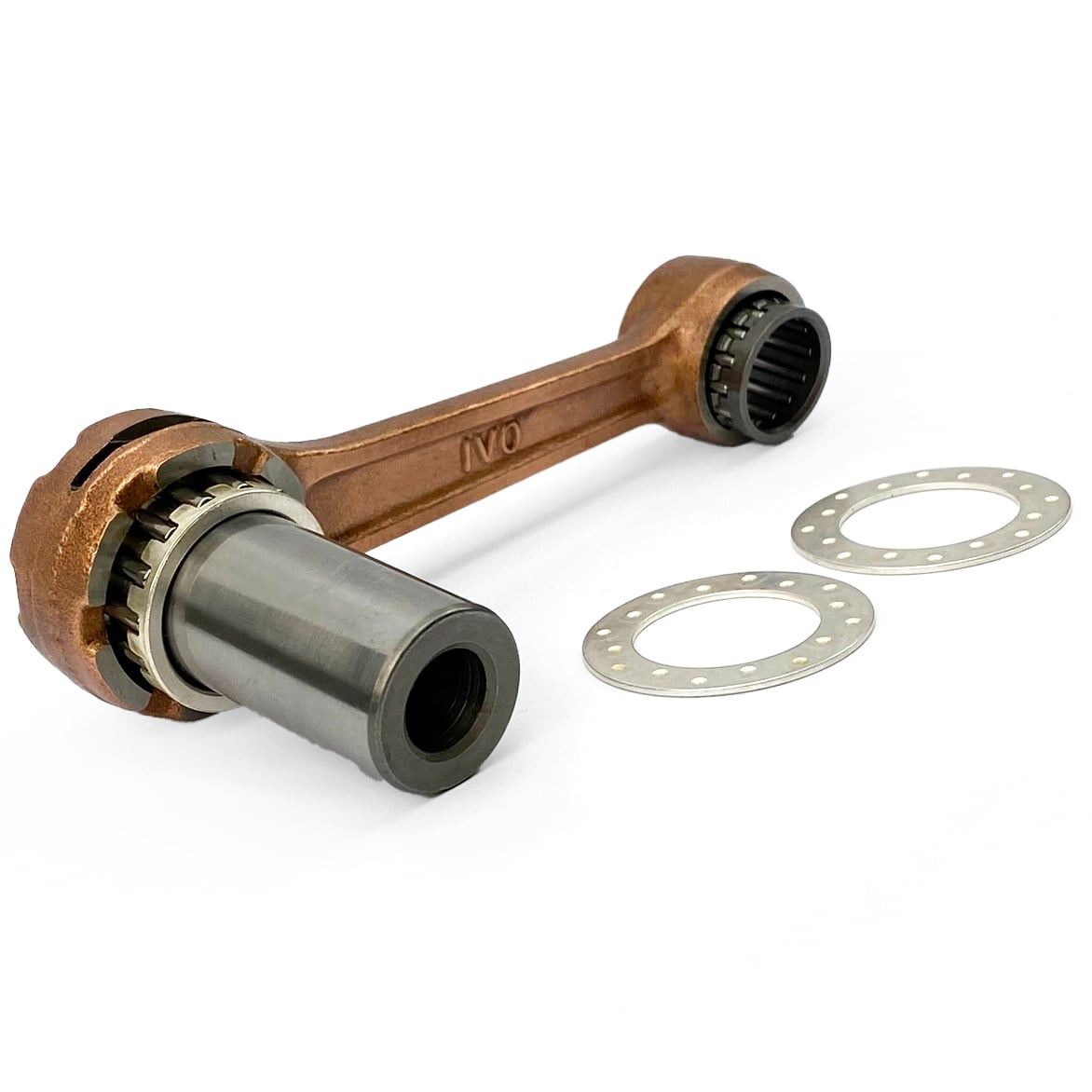

PSYCHIC CON ROD KIT YAMAHA RS125 75-80, RX125 79-80, DT125MX 74-85

PSYCHIC CON ROD KIT YAMAHA RS125 75-80, RX125 79-80, DT125MX 74-85

£64.00 GBP
£64.00 GBP
Sale Sold out
Taxes included.

CONNECTING CONROD ROD REBUILD KIT

YAMAHA

  • RS-125        1975-80
  • RX-125        1979-80
  • DT125        ALL
  • DT125K        ALL
  • RD135    ALL

- Heavy-duty OE replacement connecting rods.
- Certified Chorme alloy steel provides superior strength.
- Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
- Thrust washers are manufactured from bronze phosphor and are silver coated.
- Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
- Fully Compatible with after market and OE crankshafts.

SIZE

MM

Centre 2 Centre

100

Small End Bearing

16x20x19.5

Small End Bore Ø

16

Small End Width

20

Big End Bearing

22x28x15.8

Big End Bore Ø

28

Big End Width

16

Big End Pin Ø

22

Big End Pin Length

54.50

Washer Thickness

22x34x1

SIZE mm. A = 100, B = 16, C = 22, D = 16, E = 16, F = 54.5

Cross reference numbers ONLY.
RY-2018 IVO-11651-00-00, MX-09094, 1V0-11650-00, 1V0-11651-00, 3M5-11650-20, 4Y2-11650-00,



REF 56-983.NM
