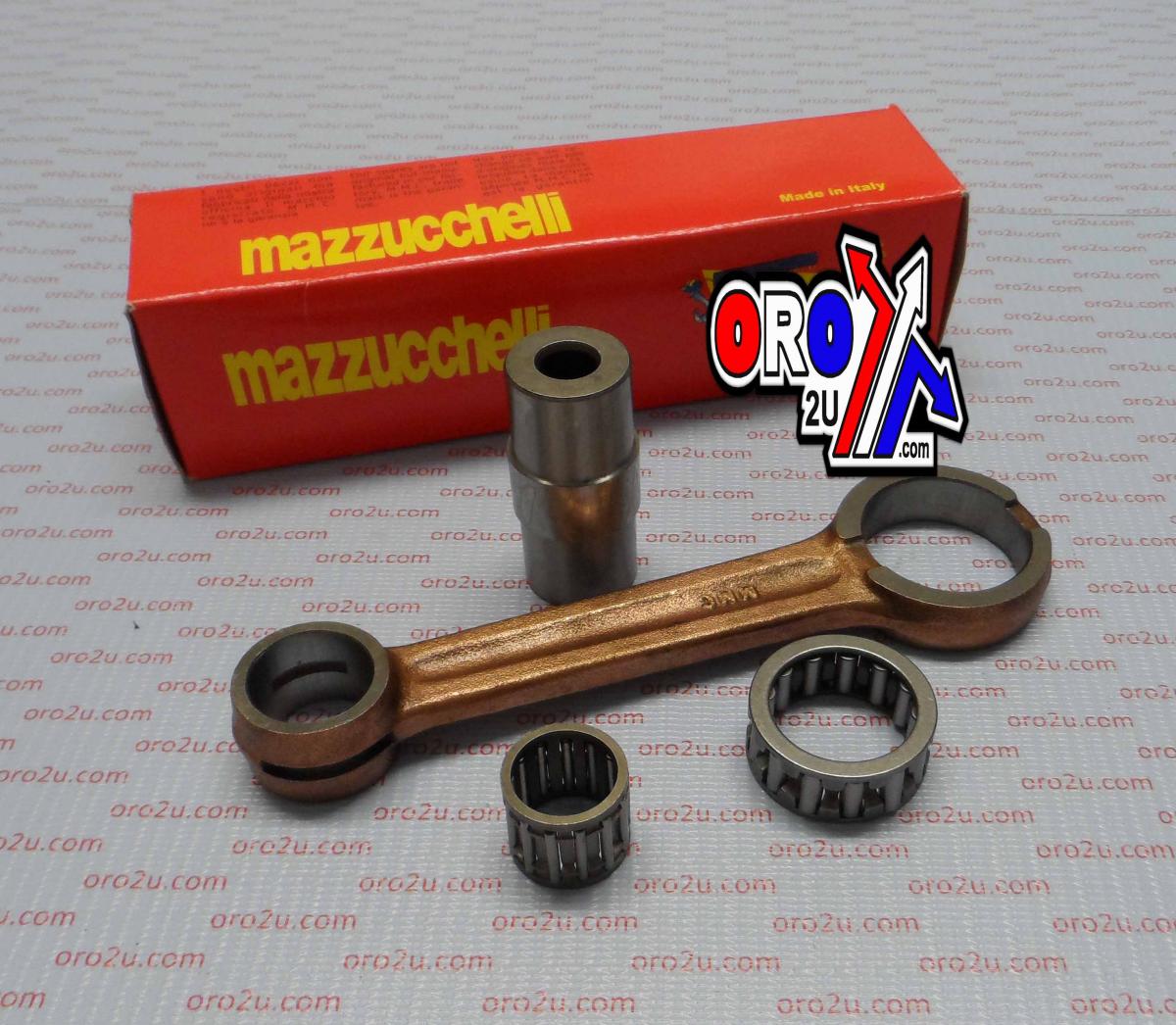

MAZZUCCHELLI CON ROD KIT OSSA 200/250cc MK1. PIN 22x24x22

OSSA 200cc / 250cc MK1 Connecting ConRod Rebuild Kit BCO0439

• Made in Italy.
• Heavy-duty OE replacement connecting rods.
• Certified Chrome alloy steel provides superior strength.
• Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
• Dirt Racing Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
• Thrust washers are manufactured from bronze phosphor and are silver coated.
• Rod assembly sold complete with rod, crankpin, crankpin bearing, top-end bearing, and thrust washers if needed.
• Fully compatible with aftermarket and OE crankshafts.
• Material: SNCM220

Size (MM):

• Centre-to-Centre: 120
• Small End Bearing: 16x20x18
• Small End Bore Ø: 20
• Small End Width: 11.50
• Big End Bearing: 24x32x13
• Big End Bore Ø: 32
• Big End Width: 11.50
• Big End Pin Ø: 22/24/22
• Big End Pin Length: 50
• Washer Thickness: None
• PIN Size: 22x24x22 / 50mm LONG
• ROD Size: Center-to-Center 120mm, Top Eye 20mm, Bottom Eye 32mm, Thickness 11.50mm
• Small End Bearing & Big End Bearing.

Part No.: 56-968

Cross-reference numbers ONLY:

• Mazzucchelli BCO0439

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
