HOT RODS CON ROD KIT KTM SX 85 13-24, HUSQVARNA TC85 14-24, GAS GAS MC85 21-24

Connecting rod kit for KTM 85 SX (2013–2021), KTM 105 SX (2013–2021), and Husqvarna TC 85 (2016–2021) models. This high-performance kit is designed to meet OE specifications and deliver reliable durability under demanding conditions.

Features:

• Heavy-duty OE replacement connecting rods.
• Made from certified 8620 AISI steel for superior strength and durability.
• Big end design incorporates strategically located side scalloping vent slots to minimize high RPM bearing race distortion.
• Crankpins are manufactured from hot-rolled ASTM 4115 material and case-hardened to 58-62 Rc.
• Caged needle roller bearing designs enhance longevity at high RPMs.
• Bronze phosphor thrust washers with silver coating for added lubricity.

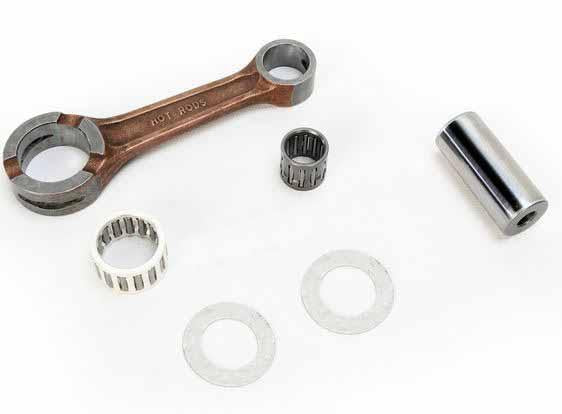

• Complete kit includes connecting rod, crankpin, crankpin bearing, top-end bearing, and thrust washers.
• Fully compatible with Hot Rods and OE crankshafts.
• Made in the USA for exceptional quality.

Specifications:

• Centre to Centre: 96.00 mm
• Big End Bore Ø: 26.00 mm
• Big End Width: Not specified
• Pin Diameter: 20.00 mm
• Pin Length: 46.00 mm
• Small End Bore Ø: 18.00 mm
• Small End Width: Not specified
• Washer Thickness: Not specified

Included Items:

• (1) Connecting rod with (2) bearings
• (1) Crankpin
• (2) Thrust washers
• Instructions

Cross-Reference OEM Part Numbers:
KTM: 47030015200

Vehicle Fitment:

• KTM 85 SX (2013–2021, 17"/14" wheel diameter)
• KTM 85 SXS (2013)
• KTM 105 SX (2013–2021)
• Husqvarna TC 85 (2016–2021)

Part Number: 56-963.HR

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
