PSYCHIC CON ROD KIT KTM SX 85 2003-2012, SX105 2004-2009

Connecting rod rebuild kit designed for KTM 85 SX (2003–2012) and KTM 105 SX (2004–2011) models. This kit is built with heavy-duty materials to ensure durability and compatibility with both OE and aftermarket crankshafts.

Features:

• Heavy-duty OE replacement connecting rods.
• Made from certified chrome alloy steel for superior strength.
• Crankpins constructed from hot-rolled ASTM steel and case-hardened.
• Equipped with advanced caged needle roller bearing designs for high RPM performance.
• Bronze phosphor thrust washers with silver coating for enhanced durability.

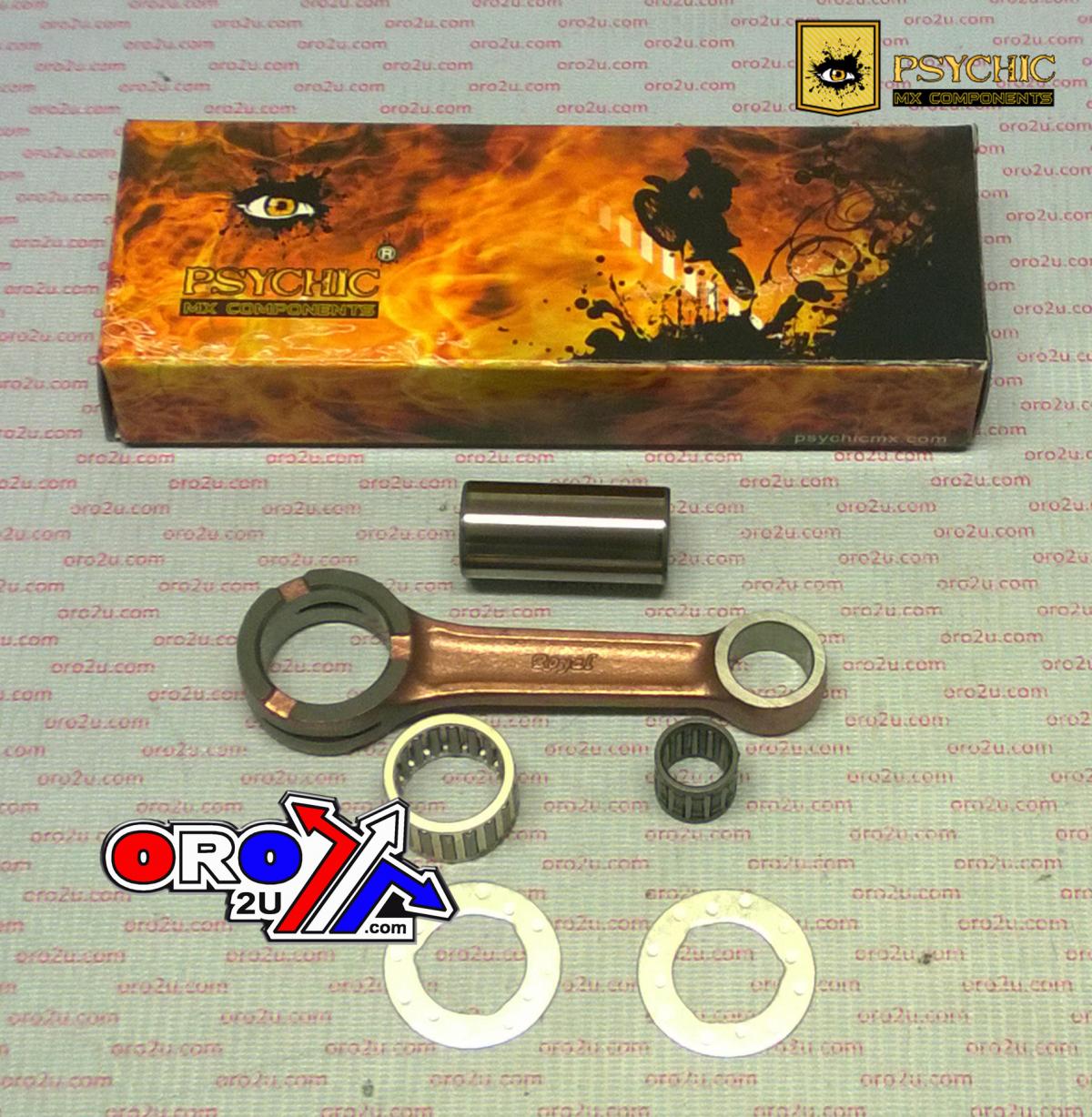

• Complete kit includes rod, crankpin, crankpin bearing, top-end bearing, and thrust washers (if required).
• Compatible with OE and aftermarket crankshafts.
• Manufactured using SNCM220 material.

Specifications:

• Centre to Centre: 96 mm
• Small End Bearing: 14x18x16.8 mm
• Small End Bore Ø: 18 mm
• Small End Width: 13 mm
• Big End Bearing: 22x28x15.8 mm
• Big End Bore Ø: 28 mm
• Big End Width: 16 mm
• Big End Pin Ø: 22 mm
• Big End Pin Length: 46 mm
• Washer Thickness: 1.00 mm

Cross-Reference OEM Part Numbers:
47030015100, ATHENA P40321040, PSYCHIC MX-09040, HOTROD 8640, PROX 03.6104, WOSSNER P2006

Vehicle Fitment:

• KTM 85 SX (2003–2012, 17"/14" wheel diameter)
• KTM 85 SX (2006, 19"/16" wheel diameter)
• KTM 105 SX (2004–2011)

Part Number: 56-961.DR
