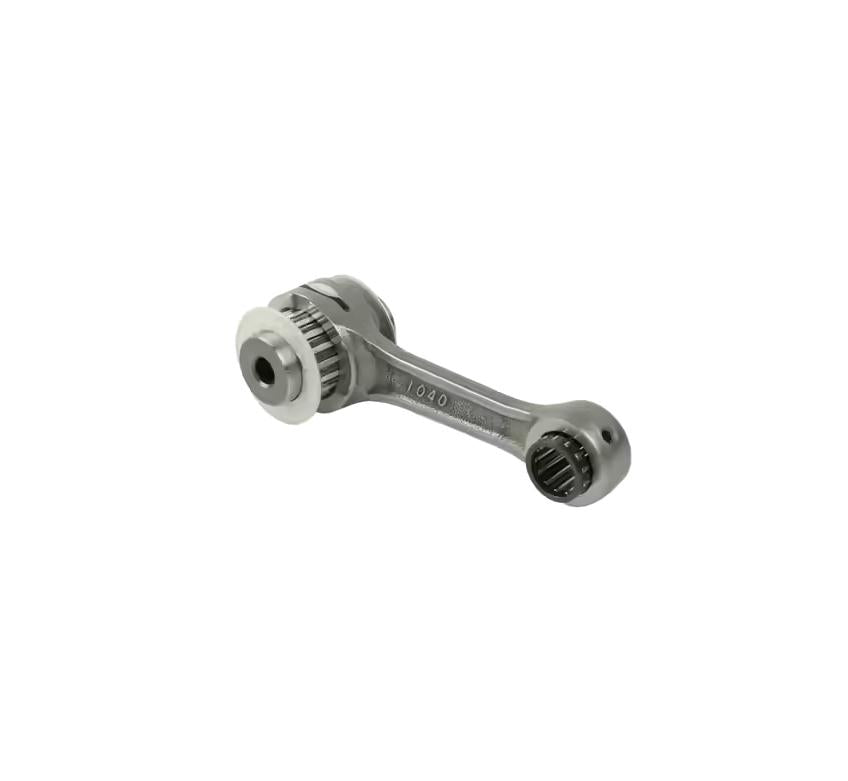

ATHENA CON ROD KIT KTM SX 85 2003-2012, SX105 2004-2009

ATHENA Connecting Rod Offroad Kit - P40321040

Description

Athena�s connecting rods are made using the most advanced materials and treatments in order to offer the best to one of the most stressed engine component. The manufacturing to which they are exposed allows them to achieve an excellent rigidity-weight ratio and a better resistance to stress while maintaining a very competitive price.

Technical features

• Big End Bore (mm) 28.00
• Big End Pin Diameter (mm) 22.00
• Big End Width (mm) 16.00
• Center To Center (mm) 96.00
• Net Weight (Kg) 0.32
• Piston Pin Diameter (mm) 18.00
• Small End Width (mm) 13.00
• Washer Thickness (mm) 1.00

Partner Cross Reference code

• 47030015100
• HOTROD 8640
• PROX 03.6104
• PSYCHIC MX-09040
• WOSSNER P2006

Vehicle compatibility

• KTM SX 105 cc 2004/2009
• KTM SX 85 cc 2003/2012

Part No. 56-961.ATH

�
