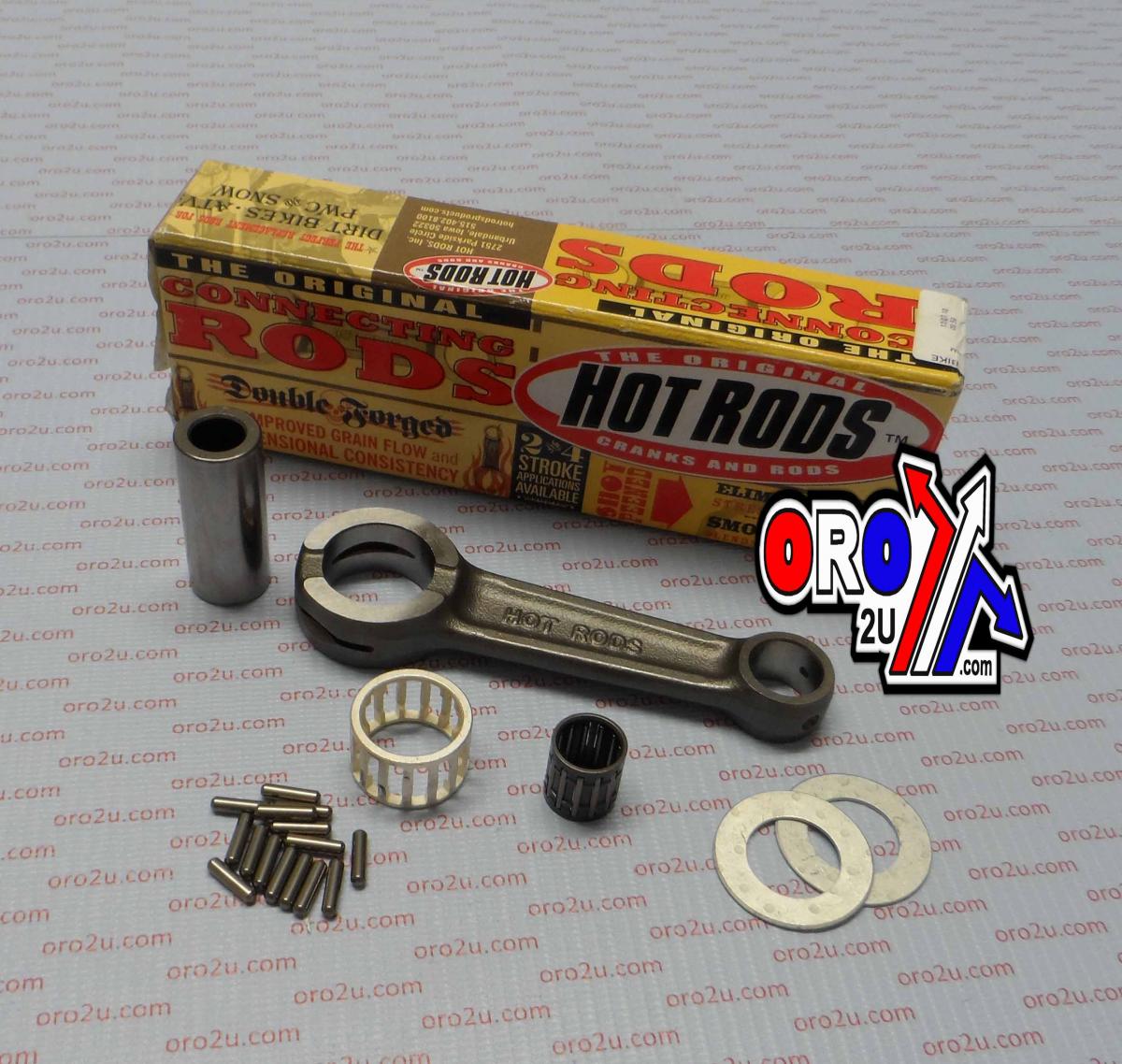

HOT RODS CON ROD KIT KTM SX65 2003-2008

Heavy-duty connecting rod kit designed for KTM 65 SX (2003-2007) and KTM 65 XC (2002-2008) models. This premium replacement kit delivers exceptional durability and performance, including all components required for a complete rebuild.

Features:

• Manufactured from hot-rolled ASTM 4115 steel and case-hardened to 58-62 Rc for enhanced strength.
• Advanced design with side scalloping and vent slots minimizes high-RPM bearing race distortion.
• Double-forged rods ensure improved grain flow and dimensional consistency.
• Shot-peened and double-honed for superior strength under heavy loads.
• Small ends are double drilled to provide extra lubrication and cooling of the wrist pin bearing.
• Thrust washers and crankpin bearings feature silver coating for added lubricity.
• Complete kit includes rod, crankpin, crankpin bearing, top-end bearing, and thrust washers.

Technical Specifications:

• Centre to Centre: 88.00 mm
• Big End Bore: 24.00 mm
• Pin Diameter: 18.00 mm
• Pin Length: 42.00 mm
• Small End Bore: 15.00 mm
• Washer Thickness: 1.00 mm

Cross-Reference OEM Part Numbers:
KTM: 46030015100, HOTRODS 8626

Vehicle Fitment:

• KTM 65 SX: 2003, 2004, 2005, 2006, 2007.
• KTM 65 XC: 2002, 2003, 2004, 2005, 2006, 2007, 2008.

Part Number: 56-960.HR

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
