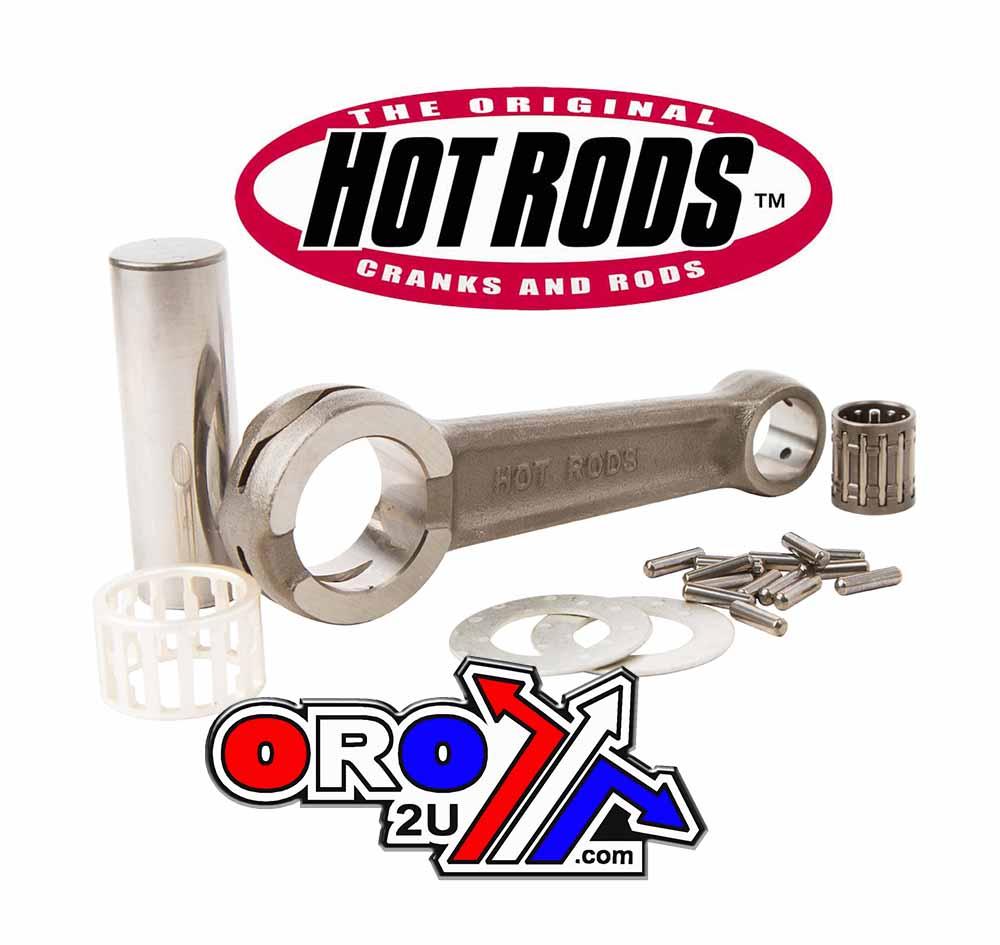

HOT RODS CON ROD KIT KTM SX60/65 1997-2002

Heavy-duty connecting rod kit designed for KTM 60SX/65SX (1997-2002) models. This high-quality replacement kit is built for durability and reliability, suitable for demanding applications. It includes all components required for a complete rebuild.

Features:

• Manufactured from hot-rolled ASTM 4115 steel and case-hardened to 58-62 Rc for superior strength and durability.
• Advanced design with side scalloping and vent slots reduces high-RPM bearing race distortion.
• Double-forged rods improve grain flow and dimensional consistency.
• Shot-peened and double-honed for exceptional strength under heavy loads.
• Small ends are double drilled for improved lubrication and cooling of the wrist pin bearing.
• Thrust washers and crankpin bearings are silver-coated for added lubricity.
• Complete kit includes rod, crankpin, crankpin bearing, top-end bearing, and thrust washers.

Technical Specifications:

• Centre to Centre: 88.00 mm
• Big End Bore: 24.00 mm
• Pin Diameter: 18.00 mm
• Pin Length: 56.00 mm
• Small End Bore: 15.00 mm
• Washer Thickness: 1.00 mm

Cross-Reference OEM Part Numbers:
KTM: 46030015000

Vehicle Fitment:

• KTM 60SX: 1997, 1998, 1999.
• KTM 65SX: 1998, 1999, 2000, 2001, 2002.

Part Number: 56-958.HR

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
