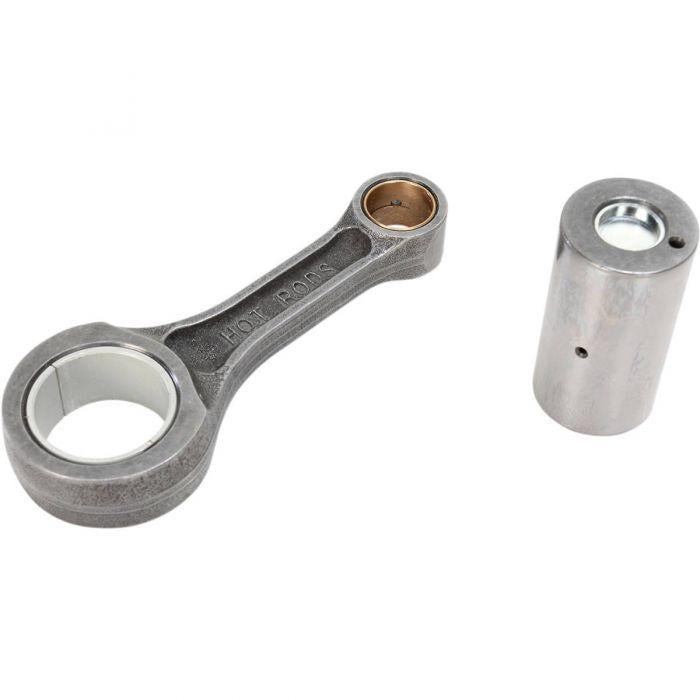

HOT RODS CON ROD KTM 350 SX-F 2013-2015, XC-F 2013-2015

Heavy-duty connecting rod kit designed for KTM 350 SX-F and KTM 350 XC-F (2013-2015) models. This high-performance OE replacement kit ensures durability and strength, ideal for demanding applications. It includes all necessary components for a complete rebuild.

Features:

• Manufactured from certified 8620 AISI steel for superior strength.
• Uniquely designed big end with side scalloping and vent slots reduces high-RPM bearing race distortion.
• Crankpins made from hot-rolled ASTM 4115 steel and case-hardened to 58-62 Rc.
• Caged needle roller bearing design enhances longevity at high RPM.
• Thrust washers are silver-coated and crafted from bronze phosphor for added durability.
• Complete rod assembly includes rod, crankpin, crankpin bearing, top-end bearing, and thrust washers.
• Fully compatible with Hot Rods and OE crankshafts.
• Made in the USA.

Technical Specifications:

• Centre to Centre: 102.00 mm
• Big End Bore: 35.99 mm
• Pin Diameter: 32.00 mm
• Pin Length: 60.00 mm
• Small End Bore: 18.00 mm

Cross-Reference OEM Part Numbers:
KTM: 77830015144

Vehicle Fitment:

• KTM 350 SX-F: 2013, 2014, 2015.
• KTM 350 XC-F: 2013, 2014, 2015.

Part Number: 56-946.HR

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
