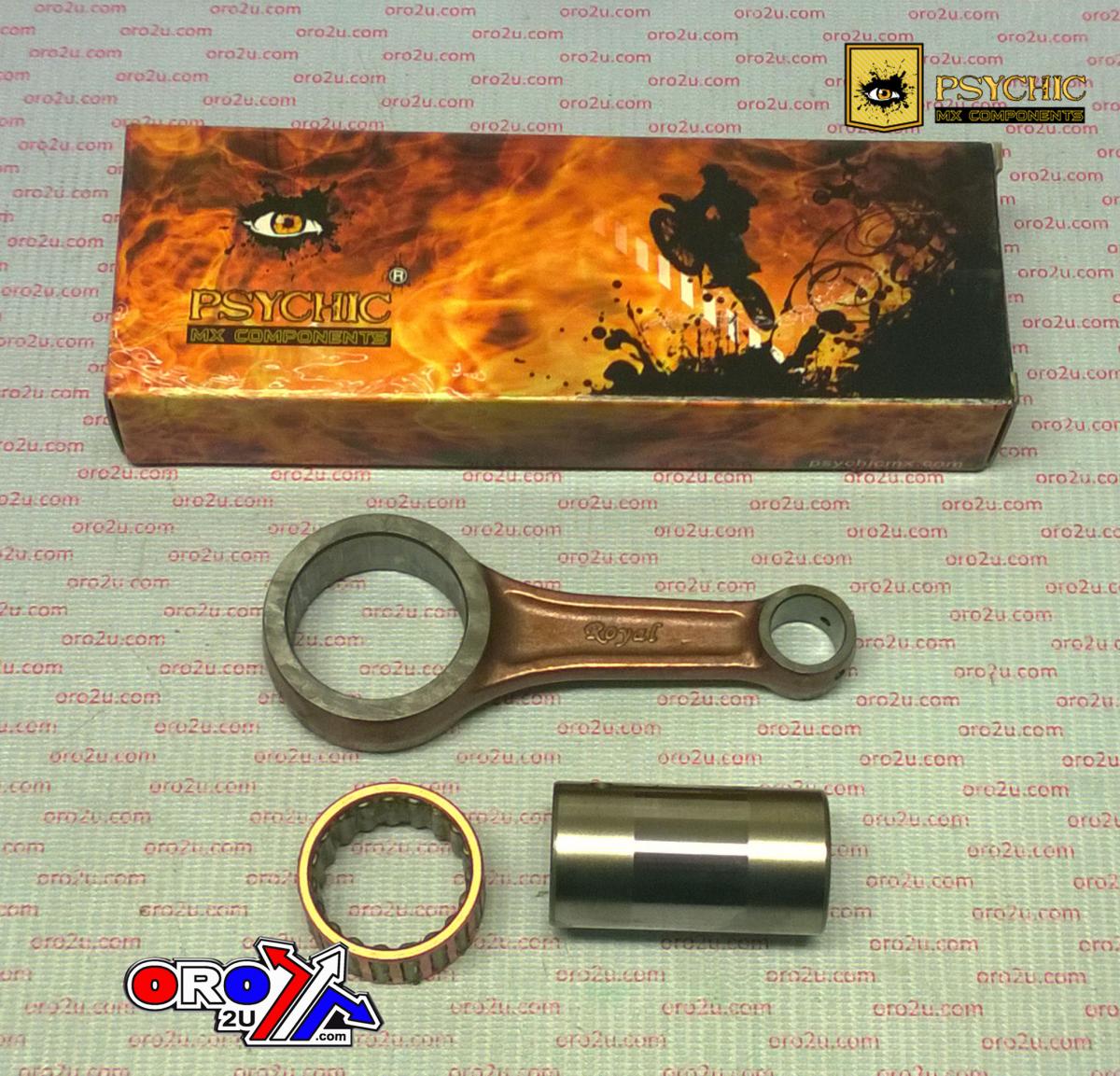

PSYCHIC CON ROD KIT KAWASAKI KX250F 2012-2016

Heavy-duty connecting rod rebuild kit designed for Kawasaki KXF250/KX250F (2012-2016) models. This high-quality OE replacement kit is built for durability and performance, including all necessary components for a complete rebuild.

Features:

• Manufactured from certified chrome alloy steel for exceptional strength.
• Crankpins made from hot-rolled ASTM steel and case-hardened for longevity.
• Advanced caged needle roller bearing design ensures high-RPM durability.
• Thrust washers are silver-coated and made from bronze phosphor for added lubricity.
• Complete rod assembly includes rod, crankpin, crankpin bearing, top-end bearing, and thrust washers as needed.
• Fully compatible with aftermarket and OE crankshafts.
• Material: SNCM220.

Specifications:

• Centre to Centre: 92.5 mm
• Small End Bearing: None
• Small End Bore Ø: 16 mm
• Small End Width: 15.00 mm
• Big End Bearing: 30x38x18.8 mm
• Big End Bore Ø: 38 mm
• Big End Width: 19 mm
• Big End Pin Ø: 30 mm
• Big End Pin Length: 55.90 mm
• Washer Thickness: None

Cross-Reference OEM Part Numbers:
WOSSNER P4039, 13032-0721, 13035-0022, 13034-0019, 13032-0076, HOTROD 8690, ATHENA P40321037, RK-5212.

Vehicle Fitment:

• Kawasaki KX250F: 2012, 2013, 2014, 2015, 2016.

Part Number: 56-942.PS.B

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
