PSYCHIC CON ROD KIT YAMAHA YZ250 1983-1989, WR250 1983-1989

Heavy-duty connecting rod rebuild kit designed for Yamaha YZ250 (1983-1989) and WR250 (1983-1989) models. This high-performance OE replacement kit provides durability and reliability for demanding use and includes all necessary components for a complete rebuild.

Features:

• Manufactured from certified chrome alloy steel for superior strength.
• Crankpins made from hot-rolled ASTM steel and case-hardened for durability.
• Utilizes advanced caged needle roller bearing design for enhanced high-RPM longevity.
• Thrust washers are silver-coated and made from bronze phosphor.

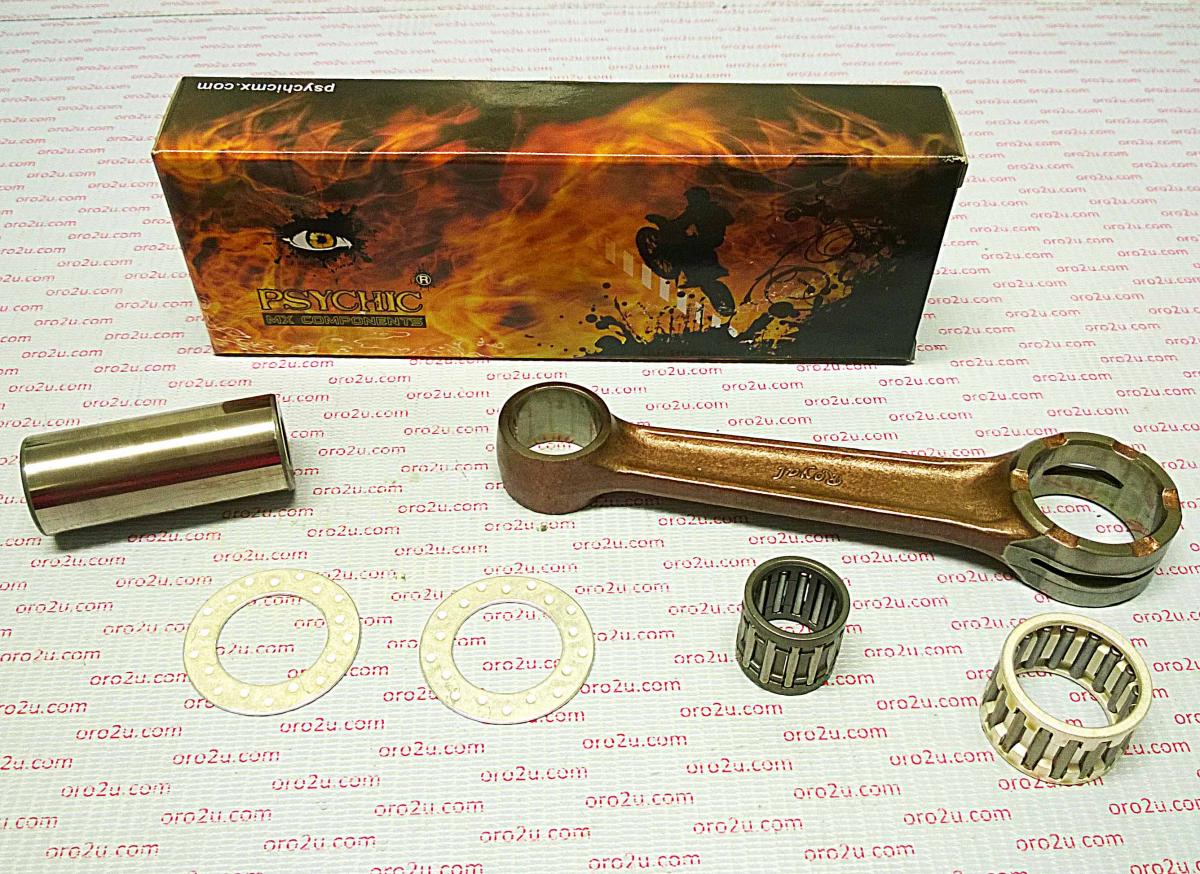

• Complete rod assembly includes rod, crankpin, crankpin bearing, top-end bearing, and thrust washers.
• Fully compatible with aftermarket and OE crankshafts.
• Material: SNCM220.

Specifications:

• Centre to Centre: 130 mm
• Small End Bearing: 18x23x21.65 mm
• Small End Bore Ø: 23 mm
• Small End Width: 20 mm
• Big End Bearing: 25x31x19.80 mm
• Big End Bore Ø: 31 mm
• Big End Width: 20.00 mm
• Big End Pin Ø: 25 mm
• Big End Pin Length: 59.90 mm
• Washer Thickness: 25x40x1 mm

Cross-Reference OEM Part Numbers:
24Y-11651-01-00, 93310-425T1-00, 93310-425P2-00, 2X4-11681-00-00, HOTRODS 8106, PROX 03-2304, WOSSNER P2048.

Vehicle Fitment:

• Yamaha YZ250: 1983, 1984, 1985, 1986, 1987, 1988, 1989.
• Yamaha WR250: 1983, 1984, 1985, 1986, 1987, 1988, 1989.

Part Number: 56-938.DR

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
