PSYCHIC CON ROD KIT KAWASAKI KX450F 2006-2008, KLX450R 2008-2021
PSYCHIC CON ROD KIT KAWASAKI KX450F 2006-2008, KLX450R 2008-2021
Couldn't load pickup availability
KAWASAKI
2008 - 2013 KLX 450R,
2007 - 2008 KX450F / KXF450,
CONNECTING CONROD ROD REBUILD KIT. PSYCHIC MX-09102 � �
- Heavy-duty OE replacement connecting rods.
- Certified Chorme alloy steel provides superior strength.
- Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
- Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
- Thrust washers are manufactured from bronze phosphor and are silver coated.

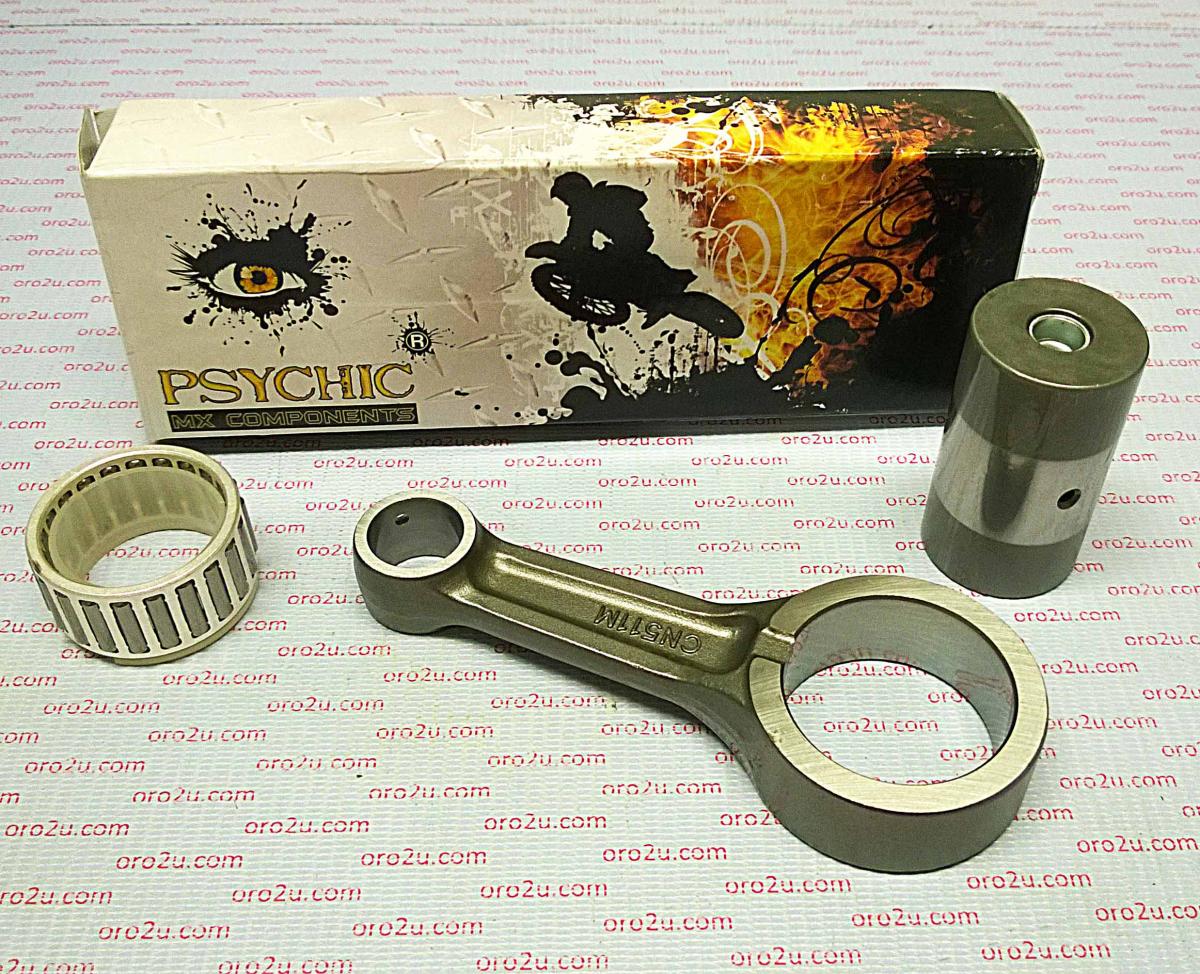

- Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
- Fully Compatible with after market and OE crankshafts.
- Material SNCM220,
| SIZE | MM |
| Centre 2 Centre | 101.00 |
| Small End Bearing | None |
| Small End Bore � | 19 |
| Small End Width | 18.00 |
| Big End Bearing | 34x42x19.65 |
| Big End Bore � | 42 |
| Big End Width | 20 |
| Big End Pin � | 34 |
| Big End Pin Length | 60 |
| Washer Thickness | None |
Part No. 56-937.PS (oro2u.com)
Cross reference numbers ONLY.
WOSSNER P4010, MX-09102, 13032-0048 KAWASAKI: 13032-0060 KAWASAKI: 13032-0064, ATHENA P40321035, PROX 03.4406, PSYCHIC MX-09102, WOSSNER P4010, HOTRODS 8656, 13032-0048, 13032-0060, 13032-0064,
Majority of our listings are for a direct replacement for your original part.
Our parts are made of quality and are designed to meet or exceed the original OEM Standards.
Our products are often a cost effective alternative to genuine OEM Parts.
Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
