HOT RODS CON ROD KIT HONDA CRF250R/X 2004-2017

Heavy-duty connecting rod kit for Honda CRF250R (2004–2017) and CRF250X (2004–2017), designed for reliability and performance. Manufactured with hot-rolled ASTM 4115 steel and precision-engineered to meet demanding requirements, this kit includes all necessary components for a complete rebuild.

Features

• Complete kit includes rod, crank pin, crank pin bearing, top-end bearing, and thrust washers.
• Manufactured from hot-rolled ASTM 4115 steel and case-hardened to 58-62 Rc for exceptional strength.
• Advanced design with side scalloping and vent slots minimizes high-rpm bearing race distortion.
• Double-forged rods improve grain flow and maintain dimensional accuracy.
• Shot-peened and double-honed for superior durability under heavy loads.
• Small ends are double-drilled to enhance lubrication and cooling of the wrist pin bearing.
• Silver-coated thrust washers and crank pin bearings for increased lubricity.

Specifications

• Centre-to-Centre: 90.00 mm
• Small End Bearing: Bushing
• Big End Bearing: 30x38x18 mm
• Big End Bore: 38.00 mm
• Big End Width: 17.80 mm
• Pin Diameter: 30.00 mm
• Pin Length: 52.85 mm

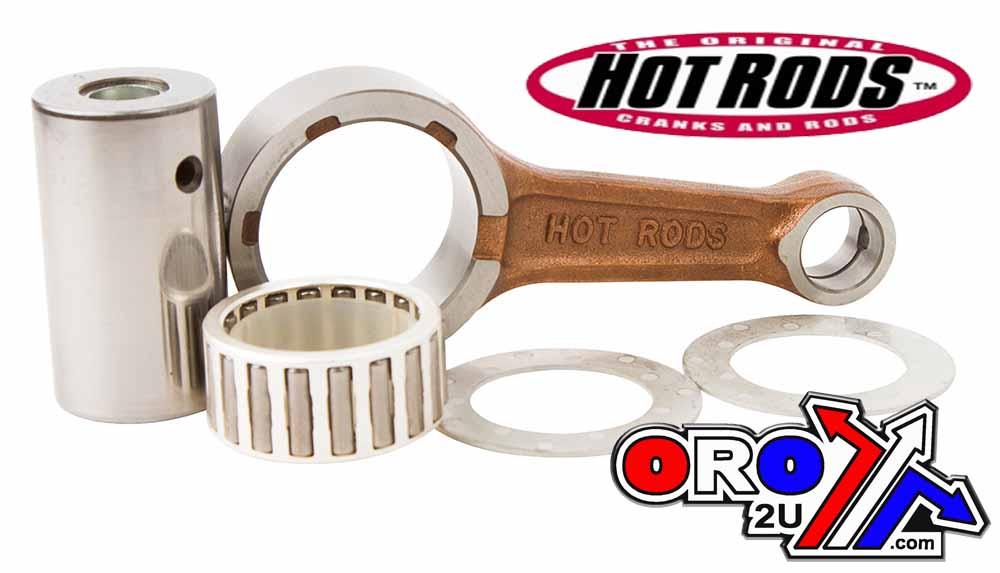

Included Items

• (1) Connecting rod
• (1) Crank pin
• (2) Thrust washers
• (1) Needle bearing

Cross Reference OEM Part Numbers

• Honda: 13000-KRN-670
• Honda: 13000-KRN-850
• Honda: 13000-KRN-A00
• Honda: 13000-KRN-A10
• Honda: 13000-KRN-A41
• Honda: 13000-KSC-670
• Honda: 13000-KSC-671
• Honda: 13000-KSC-A10

Vehicle Fitments

Honda CRF250R

• 2004–2017

Honda CRF250X

• 2004–2017

Part Number: 56-935.HR

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
