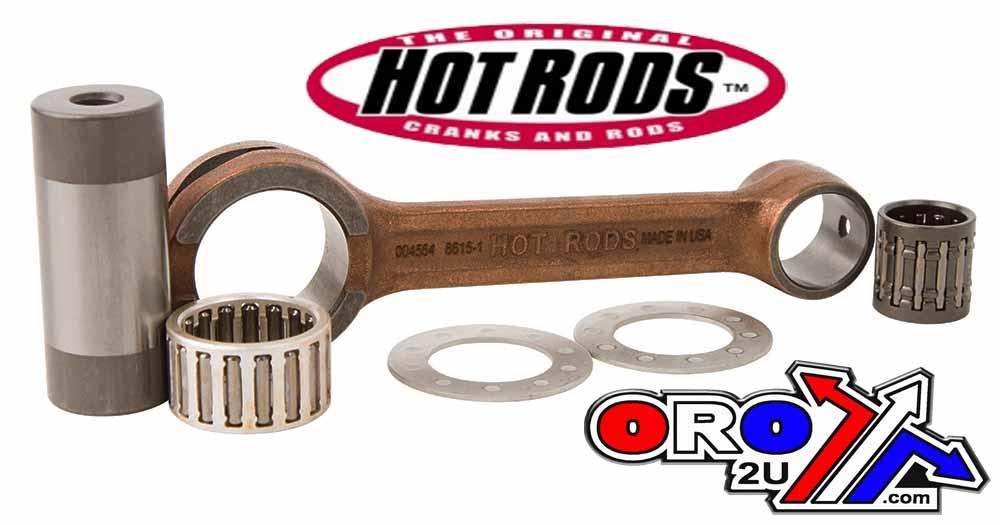

HOT RODS CON ROD KIT SUZUKI RM125 2004-2007

Connecting rod kit for Suzuki RM125 (2004–2008), designed as a high-quality replacement. Manufactured with advanced materials and processes to ensure superior strength, durability, and performance, especially under high-rpm and heavy-load conditions. This complete kit includes all components required for a reliable rebuild.

Features

• High-quality connecting rod manufactured from hot-rolled ASTM 4115 steel and case-hardened to 58-62 Rc.
• Advanced design with side scalloping and vent slots to minimize high-rpm bearing race distortion.
• Double-forged rods for improved grain flow and dimensional consistency.
• Shot-peened and double-honed rods for added durability under heavy loads.
• Small ends are double-drilled for enhanced lubrication and cooling of the wrist pin bearing.
• Silver-coated thrust washers and crank pin bearings for increased lubricity.
• Kit includes rod, crank pin, crank pin bearing, top-end bearing, and thrust washers.

Specifications

• Center-to-Center: 110.00 mm
• Big End Bearing: 22x28x16 mm
• Big End Bore: 28.00 mm
• Big End Width: 15.90 mm
• Pin Diameter: 22.00 mm
• Pin Length: 52.70 mm
• Small End Bearing: 15x19x19.5 mm

Cross Reference OEM Part Numbers

• Suzuki: 12161-36E11
• Suzuki: 12161-36E12
• Suzuki: 12161-36F20
• Suzuki: 12161-36F21

Vehicle Fitments

• Suzuki RM125: 2004–2008

Part Number: 56-925.HR

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
