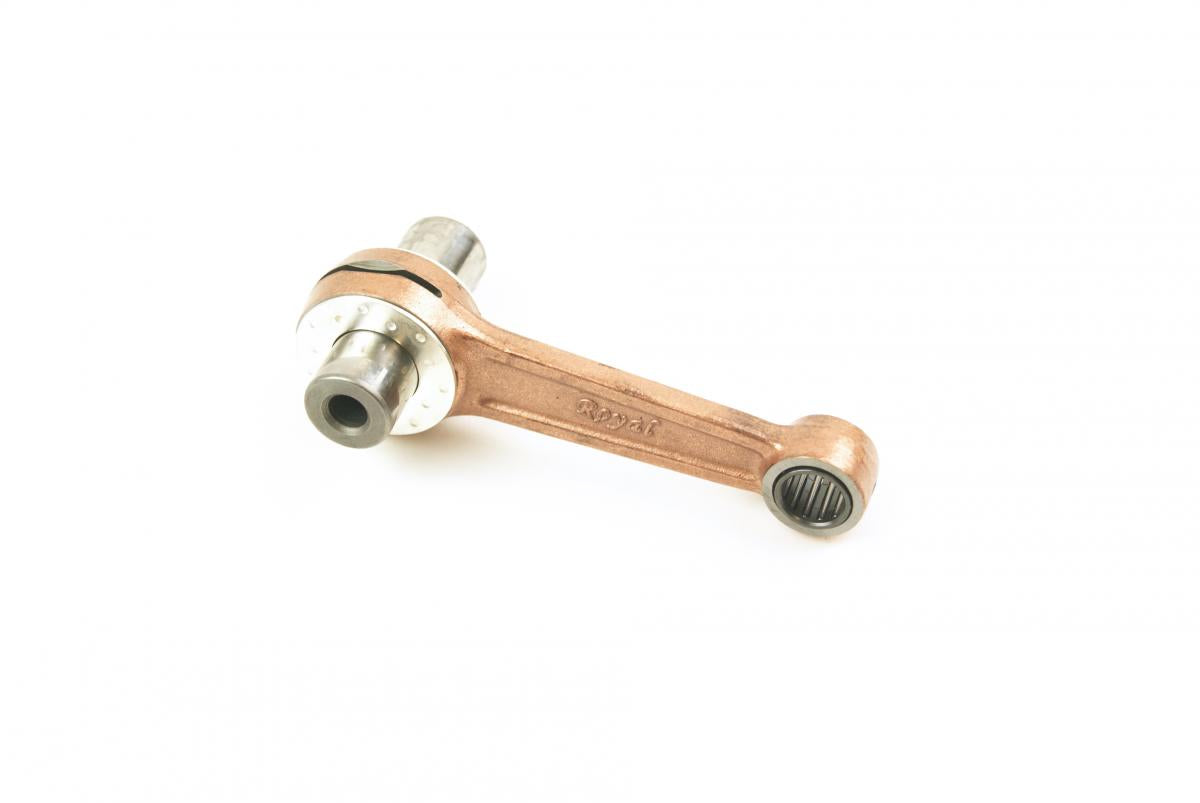

NAMURA CON ROD KIT KTM SX65 09-24, GAS GAS MC65 21-23, HUSQ TC65 17-23

Connecting rod rebuild kit for KTM 65 SX (2009-2019) and 65 XC (2009), designed as a heavy-duty OE replacement. Manufactured with certified chrome alloy steel for superior strength and longevity, it includes all necessary components for a complete rod assembly. The kit is compatible with aftermarket and OE crankshafts.

Features

• Heavy-duty connecting rod designed as an OE replacement.
• Manufactured using certified chrome alloy steel for superior durability.
• Crankpins made from hot-rolled ASTM steel and case-hardened for strength.
• Includes high-rpm longevity caged needle roller bearing designs.
• Bronze phosphor thrust washers with a silver coating.
• Complete assembly includes rod, crankpin, crankpin bearing, top-end bearing, and thrust washers as needed.
• Compatible with aftermarket and OE crankshafts.

Specifications

• Material: SNCM220
• Centre-to-Centre: 88 mm
• Small End Bearing: 12x15x16.30 mm
• Small End Bore Ø: 19 mm
• Small End Width: 13 mm
• Big End Bearing: 18x24x14.8 mm
• Big End Bore Ø: 24 mm
• Big End Width: 15 mm
• Big End Pin Ø: 18 mm
• Big End Pin Length: 54.3 mm
• Washer Thickness: 1.00 mm

Cross Reference OEM Part Numbers

• 46230015000
• Athena P40321039
• Hotrods 8132
• ProX 03-6029
• Wossner P2055

Vehicle Fitments

• KTM 65 SX: 2009–2019
• KTM 65 XC: 2009

Part Number: 56-923.NM
