HOTRODS CON ROD POLARIS RZR1000 XP 2014-2016

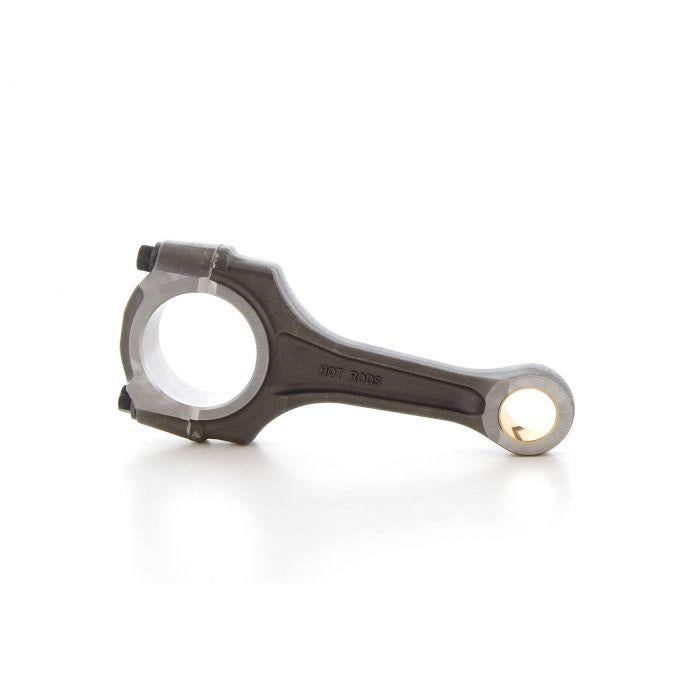

Hot Rods Connecting Rod Kit - 8708

This high-performance connecting rod kit is designed for demanding applications, delivering strength and durability under high-RPM conditions. Manufactured from hot-rolled ASTM 4115 steel and case-hardened for maximum durability, it includes all components required for installation and is compatible with both Hot Rods and OEM crankshafts.

Features:

• Constructed from hot-rolled ASTM 4115 steel and case-hardened to 58-62 Rc.
• Caged needle roller bearing design for high-RPM reliability.
• Big-end features strategically placed scalloping and vent slots to minimize bearing race distortion.
• Shot-peened to remove surface stress risers and enhance strength.
• Double-honed for an ultra-round bearing surface, ensuring long-lasting performance.
• Small ends are double-drilled to improve wrist pin bearing lubrication and cooling.
• Complete kit includes rod, crank pin, crank pin bearing, top-end bearing, and silver-coated bronze phosphor thrust washers.

Specifications:

• Big End Bore Ø: 40.95 mm
• Center to Center: 124.85 mm
• Small End Bore Ø: 20.00 mm

Included Items:

• (1) Connecting rod
• (1) Crankpin
• (1) Roller bearing
• (2) Thrust washers

Cross-Reference OEM Part Numbers:

• POLARIS: 1204907

Vehicle Fitments:

Polaris UTV:

• RZR XP 1000: 2014–2016
• RZR 4 1000: 2014–2016

Part Number:

56-9015.HR

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
