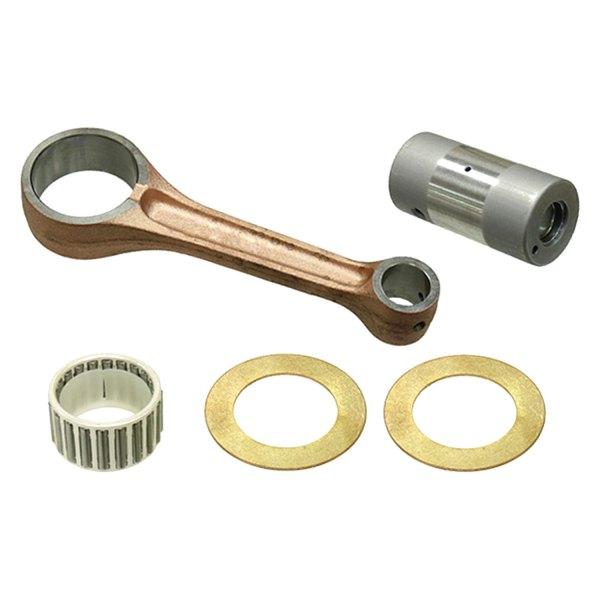

BRONCO CON ROD SUZUKI LT-A450X 2007-2010, LT-A500X 2009-2023

Connecting rod rebuild kit for Suzuki KingQuad models, including LT-A450X and LT-A500 variants, spanning years 2007 to 2017. This kit is engineered for reliability and high performance, constructed from certified chrome alloy steel for superior durability. Compatible with both aftermarket and OE crankshafts, it meets or exceeds original equipment standards.

Features:

• Heavy-duty OE replacement connecting rods.
• Certified chrome alloy steel for exceptional strength.
• Crankpins made from hot-rolled ASTM steel, case-hardened for longevity.
• Caged needle roller bearing design ensures durability under high RPM conditions.
• Thrust washers made from bronze phosphor and silver-coated for enhanced wear resistance.
• Complete assembly includes rod, crankpin, crankpin bearing, top-end bearing, and thrust washers where applicable.
• Fully compatible with aftermarket and OE crankshafts.

Specifications:

Material: SNCM220
Centre-to-Centre Length: 141 mm
Small End Bearing: None
Small End Bore Ø: 20 mm
Small End Width: 25.00 mm
Big End Bearing Dimensions: 35 x 44 x 25 mm
Big End Bore Ø: 44 mm
Big End Width: 25.00 mm
Big End Pin Ø: 35 mm
Big End Pin Length: 71.00 mm
Washer Thickness: 35 x 55 x 1 mm

Cross-Reference OEM Part Numbers:

12161-11H00, 12210-11H00

Vehicle Compatibility:

• 2007-2010 Suzuki LT-A450X KingQuad AXi 4x4
• 2009-2017 Suzuki LT-A500X KingQuad
• 2011-2014 Suzuki LT-A500 KingQuad AXi
• 2011-2014 Suzuki LT-A500 KingQuad AXi Power Steering
• 2009 Suzuki LT-A500 KingQuad AXi Power Steering

Part Number: BRONCO AT-09251

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
