PSYCHIC CON ROD KIT YAMAHA YZ60 1981-1983, YZ80 1980-1983

Connecting rod rebuild kit for Yamaha YZ80 models from 1980 to 1983, designed for high performance and durability. Engineered from certified chrome alloy steel, this kit ensures superior strength and reliability. The components are crafted to meet or exceed OE standards, offering compatibility with both aftermarket and original crankshafts.

Features:

• Heavy-duty OE replacement connecting rods.
• Certified chrome alloy steel for exceptional strength.
• Crankpins made from hot-rolled ASTM steel, case-hardened for durability.
• High-performance caged needle roller bearing design for longevity at high RPMs.
• Thrust washers manufactured from bronze phosphor and silver-coated for enhanced performance.

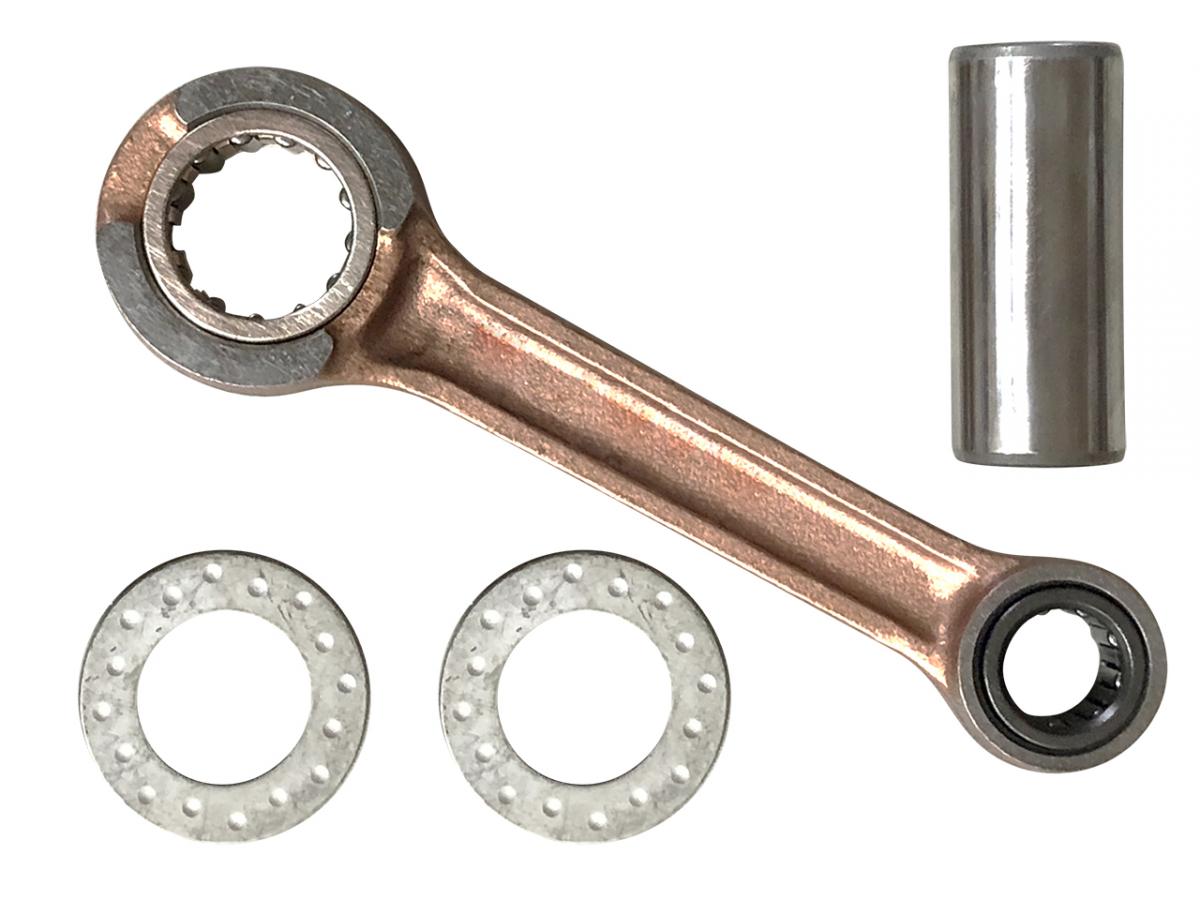

• Complete kit includes rod, crankpin, crankpin bearing, top-end bearing, and thrust washers as required.
• Fully compatible with aftermarket and OE crankshafts.

Specifications:

Material: SNCM220
Centre-to-Centre Length: 94 mm
Small End Bearing Dimensions: 12 x 17 x 14.8 mm
Small End Bore Ø: 17 mm
Small End Width: 14 mm
Big End Bearing Dimensions: 18 x 24 x 13.8 mm
Big End Bore Ø: 24 mm
Big End Width: 14 mm
Big End Pin Ø: 18 mm
Big End Pin Length: 43.5 mm
Washer Thickness: Not specified

Cross-Reference OEM Part Numbers:

PSYCHIC MX-09615, RY-2223

Part Number: PSYCHIC MX-09615

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
