PSYCHIC CON ROD KAWASAKI KX125 79-87/92-93, KDX200 86-88

PSYCHIC CON ROD KAWASAKI KX125 79-87/92-93, KDX200 86-88

£108.94 GBP
£108.94 GBP
Sale Sold out
Taxes included.

KAWASAKI
KX125 1979-1987, 1992-1993,
KDX200 1986-1988,

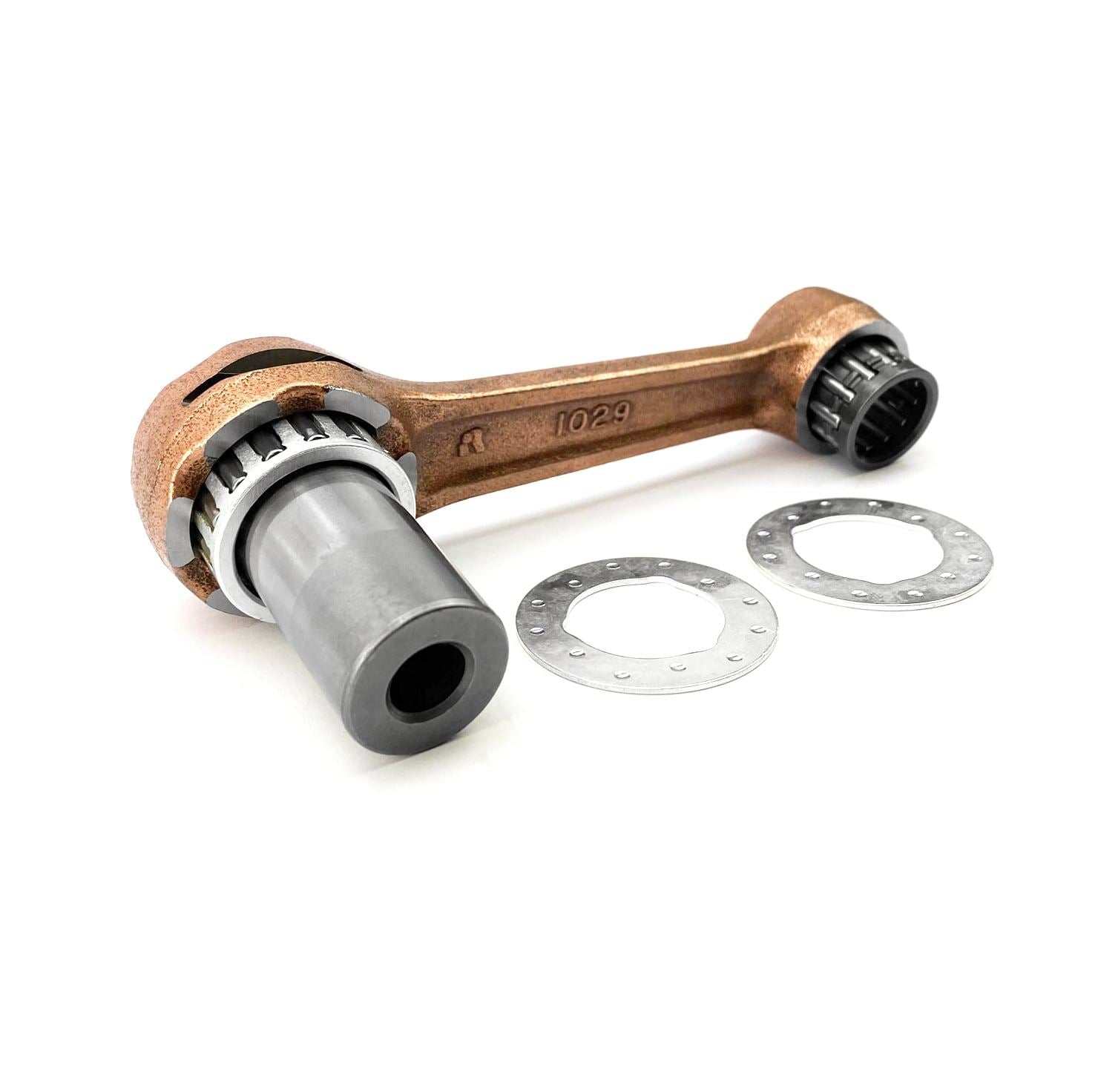

CONNECTING ROD CONROD REBUILD KIT

- Heavy-duty OE replacement connecting rods.
- Certified Chorme alloy steel provides superior strength.
- Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
- Thrust washers are manufactured from bronze phosphor and are silver coated.
- Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
- Fully Compatible with after market and OE crankshafts.
- Material SNCM220,

SIZE

MM

Centre 2 Centre

106

Small End Bearing

16x21x19.80

Small End Bore Ø

21

Small End Width

17.00

Big End Bearing

22x29x16.8

Big End Bore Ø

29

Big End Width

17.20

Big End Pin Ø

22

Big End Pin Length

51.00

Washer Thickness

1.00

Cross reference numbers.
KAWASAKI: 13032-1179,KAWASAKI: 13032-1200, KAWASAKI: 13044-5008, KAWASAKI: 13044-5009, KAWASAKI: 13044-5017, KAWASAKI: 13044-5018, KAWASAKI: 13044-5030, KAWASAKI: 13044-5035, KAWASAKI: 13044-5047, KAWASAKI: 13044-5065, PROX 03.4210, WISECO WPR130, HOTRODS 8102,



Kawasaki
  • 1988 Kawasaki KDX200
  • 1987 Kawasaki KDX200
  • 1986 Kawasaki KDX200
  • 1993 Kawasaki KX125
  • 1992 Kawasaki KX125
  • 1987 Kawasaki KX125
  • 1986 Kawasaki KX125
  • 1985 Kawasaki KX125
  • 1984 Kawasaki KX125
  • 1983 Kawasaki KX125
  • 1982 Kawasaki KX125
  • 1981 Kawasaki KX125
  • 1979 Kawasaki KX125








REF 56-896.NM
