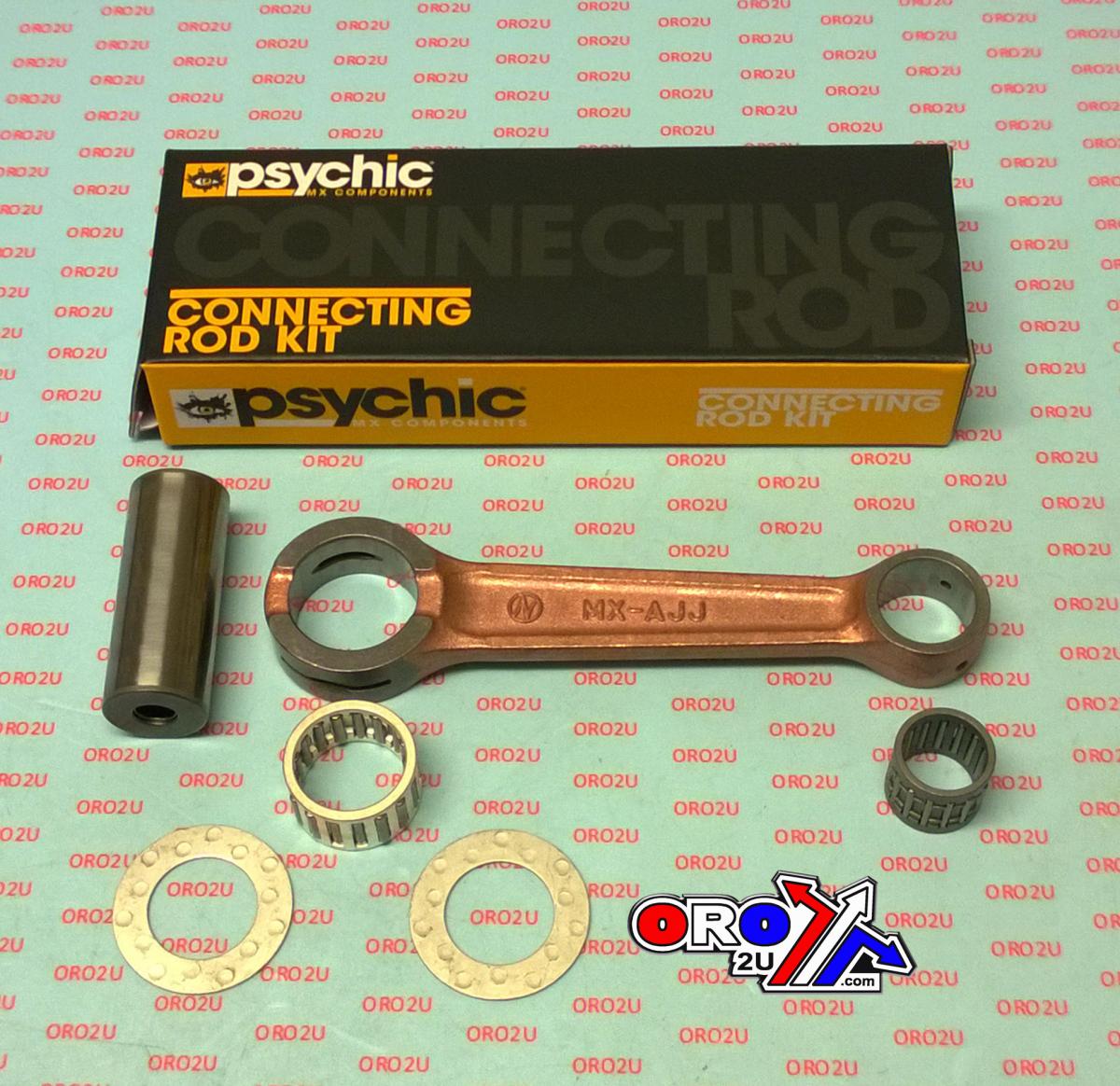

PSYCHIC CON ROD KTM 250 SX/EXC 90-99, 300 SX/EXC 90-03 , 380 SX/EXC 99-02

High-quality connecting rod rebuild kit designed for KTM two-stroke models. Manufactured using hot-rolled ASTM and case-hardened materials, this kit ensures durability and precision. The double-forged rods enhance grain flow and maintain consistent dimensions, while shot-peening and double-honing processes provide superior strength under heavy loads. The small end features double-drilled holes for enhanced lubrication and cooling, crucial for high-performance applications. Thrust washers and crank pin bearings are silver-coated for added lubricity. The kit includes all necessary components for a complete rebuild: rod, crank pin, crank pin bearing, top-end bearing, and thrust washers.

Features:

• Hot-rolled ASTM and case-hardened materials for enhanced durability.
• Double-forged rods for improved grain flow and dimensional consistency.
• Shot-peened and double-honed rods for increased strength under load.
• Double-drilled small end for superior lubrication and cooling.
• Silver-coated thrust washers and crank pin bearings for added lubricity.
• Complete kit includes rod, crank pin, crank pin bearing, top-end bearing, and thrust washers.

Specifications:

• Centre-to-Centre Distance: 132 mm
• Small End Bearing Dimensions: 18x22x19.8 mm
• Small End Bore Ø: 22 mm
• Small End Width: 17.00 mm
• Big End Bearing Dimensions: 24x30x16.8 mm
• Big End Bore Ø: 30 mm
• Big End Width: 16.90 mm
• Big End Pin Ø: 24 mm
• Big End Pin Length: 59.90 mm
• Washer Thickness: 1.00 mm

Cross-Reference OEM Part Numbers:

54630015044, HOTRODS 8111, PROX 03.6311, WOSSNER P2024

Vehicle Compatibility:

KTM Models (1990–2003):
250 SX-EXC, 300 SX-EXC, 360/380cc

• 1990–1999: 250 EXC, 250 SX, 250 XC, 250 XC-W
• 1990–2003: 300 EXC, 300 MXC, 300 XC, 300 XC-W

Part Number: 56-894.DR

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
