HOTRODS CON ROD HONDA XR600R 85-01, XL600R 83-87, NO THRUST WASHERS

High-quality Hot Rods connecting rod kit designed for Honda XR600R, XL600R, and XBR600 models. Engineered for durability and precision, this kit is an excellent replacement for OEM components, ensuring reliable performance and long service life.

Features:

• Manufactured from hot-rolled ASTM 4115 and case-hardened to 58-62 Rc for maximum durability.
• Side scalloping and vent slots minimize high RPM bearing race distortion.
• Double-forged rods enhance grain flow and maintain dimensional consistency.
• Shot-peened and double-honed for superior strength under heavy loads.
• Small ends are double-drilled for improved lubrication and cooling of the wrist pin bearing.
• Silver-coated thrust washers and crank pin bearings provide added lubricity.

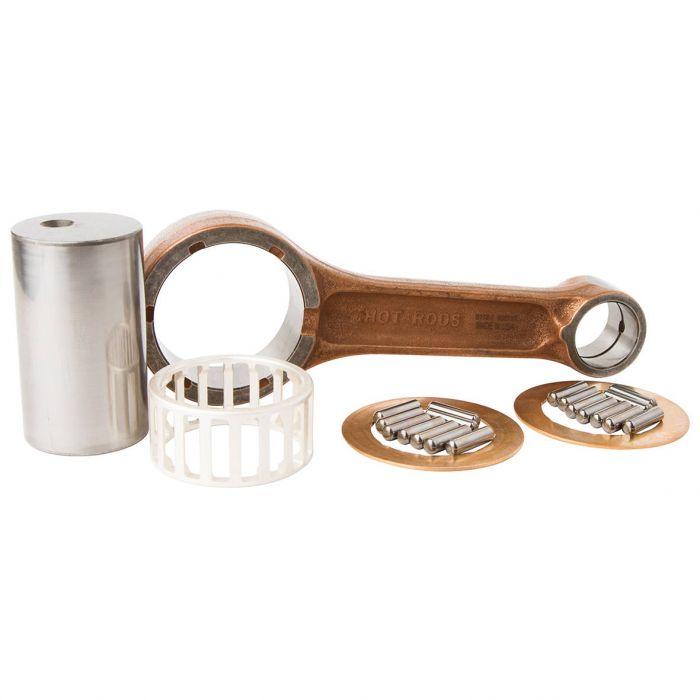

• Kit includes rod, crank pin, crank pin bearing, top-end bearing, and thrust washers.

Specifications:

• Big End Bearing: 38x48x23 mm
• Big End Bore: 48.00 mm
• Big End Width: Not specified
• Centre to Centre: 134.00 mm
• Pin Diameter: 38.00 mm
• Pin Length: 64.90 mm
• Small End Bearing: Not specified
• Small End Bore: 24.00 mm
• Small End Width: Not specified
• Washer Thickness: 1.00 mm

Cross-Reference OEM Part Numbers:
Hot Rods: 8118
WOSSNER: P4028
PROX: 03.1654
HONDA: 13000-MG2-000, 13000-MG2-790, 13000-MG2-791, 13000-MG2-792,
13000-MK2-030, 13000-MK2-040, 13000-MK2-050, 13000-MK2-305,
13000-MN1-670, 13000-MN1-671

Compatibility:

• Honda XR600R: 1985–2004
• Honda XL600R: 1983–1987
• Honda XBR600: MK5

Part Number:
8118

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
