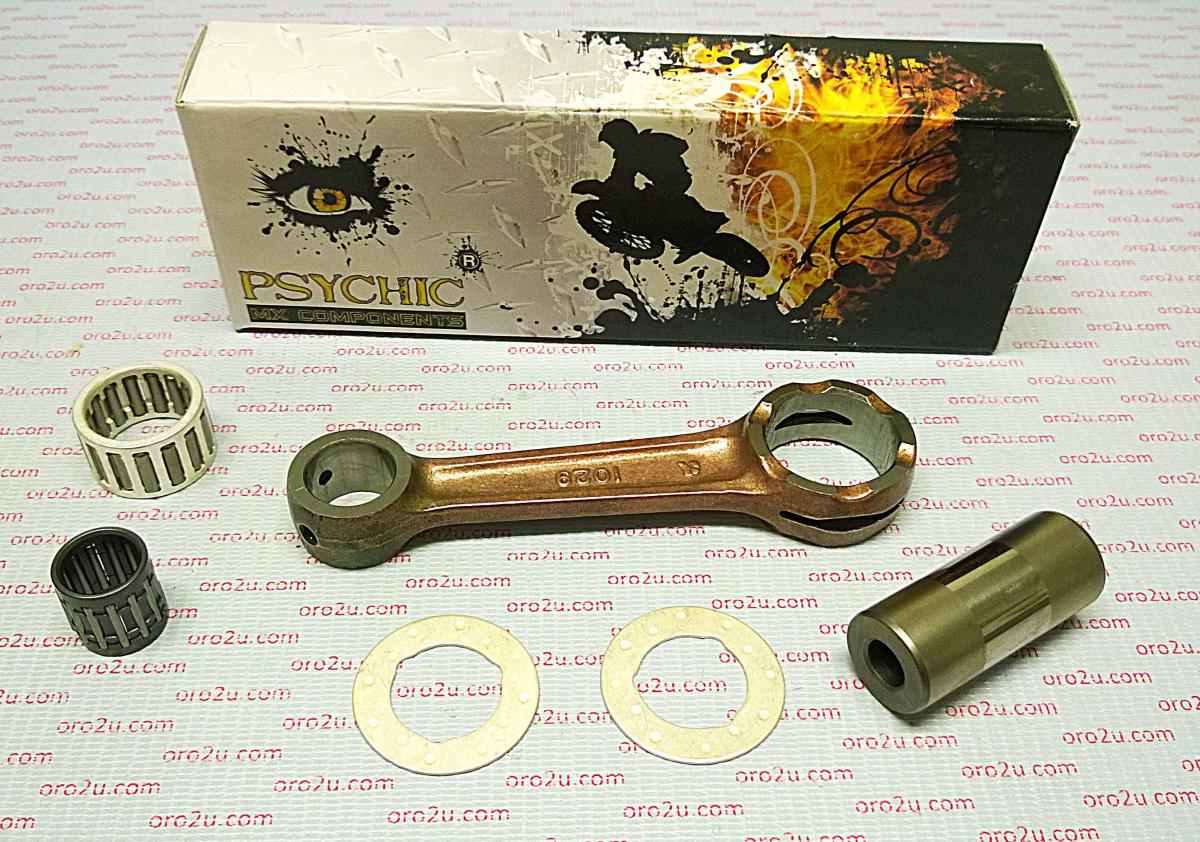

PSYCHIC CON ROD KAWASAKI KX125 1994-1997

High-performance connecting rod rebuild kit by Psychic, designed as a durable OE replacement for Kawasaki KX125 models. Manufactured using certified chrome alloy steel for exceptional strength and reliability, this kit provides everything needed for a complete rod rebuild.

Features:

• Heavy-duty connecting rods designed for superior durability.
• Constructed from certified chrome alloy steel for enhanced strength.
• Crankpins made from hot-rolled ASTM steel and case-hardened for durability.
• Equipped with advanced caged needle roller bearings for high RPM longevity.
• Thrust washers crafted from bronze phosphor with a silver coating.
• Complete rod assembly includes rod, crankpin, crankpin bearing, top-end bearing, and thrust washers.
• Fully compatible with aftermarket and OE crankshafts.
• Manufactured using high-quality SNCM220 material.

Specifications:

• Centre to Centre: 106 mm
• Small End Bearing: 15x19x19.9 mm
• Small End Bore Ø: 19 mm
• Small End Width: 17 mm
• Big End Bearing: 22x29x16.8 mm
• Big End Bore Ø: 29 mm
• Big End Width: 17 mm
• Big End Pin Ø: 22 mm
• Big End Pin Length: 51.00 mm
• Washer Thickness: 1.00 mm

Cross-Reference OEM Part Numbers:
13032-1196, 13032-1219, MX-09030, WISECO WPR132, HOT RODS 8163

Compatibility:

• 1997 Kawasaki KX125
• 1996 Kawasaki KX125
• 1995 Kawasaki KX125
• 1994 Kawasaki KX125

Part Number:
MX-09030

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
