HOT RODS CON ROD SUZUKI RM125 1997-1998

High-quality Hot Rods connecting rod kit designed as a replacement for Suzuki RM125 models (1997–1998). Manufactured from hot-rolled ASTM 4115 steel and case-hardened to 58-62 Rc, this kit delivers outstanding durability and performance under high-stress conditions.

Features:

• Constructed from hot-rolled ASTM 4115 steel and case-hardened to 58-62 Rc for enhanced strength.
• Strategically located side scalloping and vent slots reduce high-rpm bearing race distortion.
• Double-forged rods improve grain flow and maintain dimensional consistency.
• Shot-peened and double-honed for superior durability under heavy loads.
• Double-drilled small ends improve lubrication and cooling of the wrist pin bearing, critical for close piston crown proximity.
• Silver-coated thrust washers and crank pin bearings enhance lubricity and reduce friction.

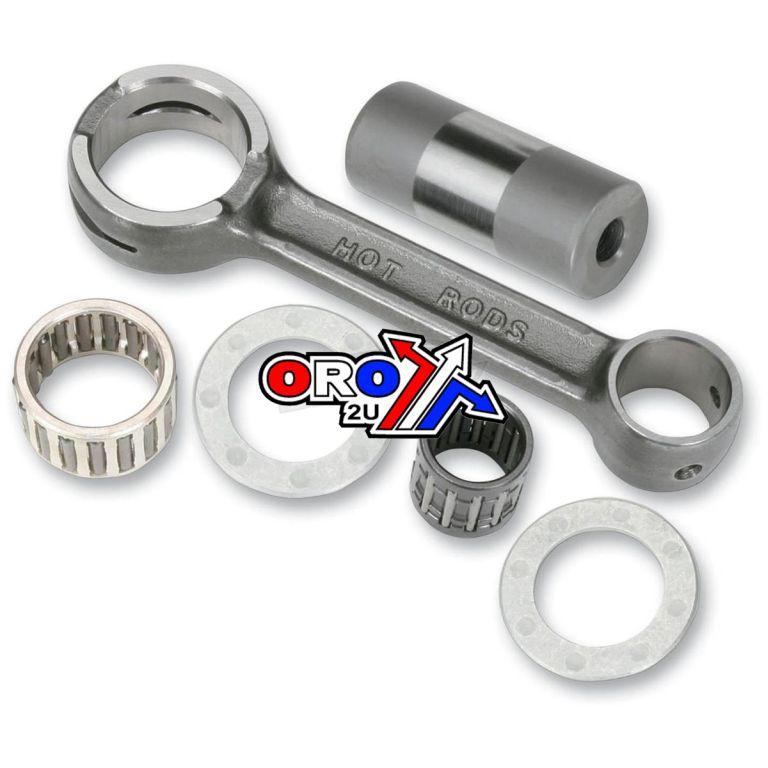

• Complete kit includes rod, crank pin, crank pin bearing, top-end bearing, and thrust washers.

Cross-Reference OEM Part Numbers:

• Suzuki: 12161-43D00

Technical Specifications:

• Big End Bore (mm): 28.00
• Big End Width (mm): Not specified
• Center-to-Center (mm): 100.00
• Pin Diameter (mm): 22.00
• Pin Length (mm): 52.90
• Small End Bore (mm): 19.00
• Small End Width (mm): Not specified
• Washer Thickness (mm): 1.60

Vehicle Compatibility:

• Suzuki RM125: 1997–1998

Part Number: 56-882.HR

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
