HOT RODS CON ROD KIT SUZUKI RM250 1996-2002

HOT RODS CON ROD KIT SUZUKI RM250 1996-2002

Regular price £128.61 GBP
Regular price Sale price £128.61 GBP
Sale Sold out
Taxes included.
Quantity

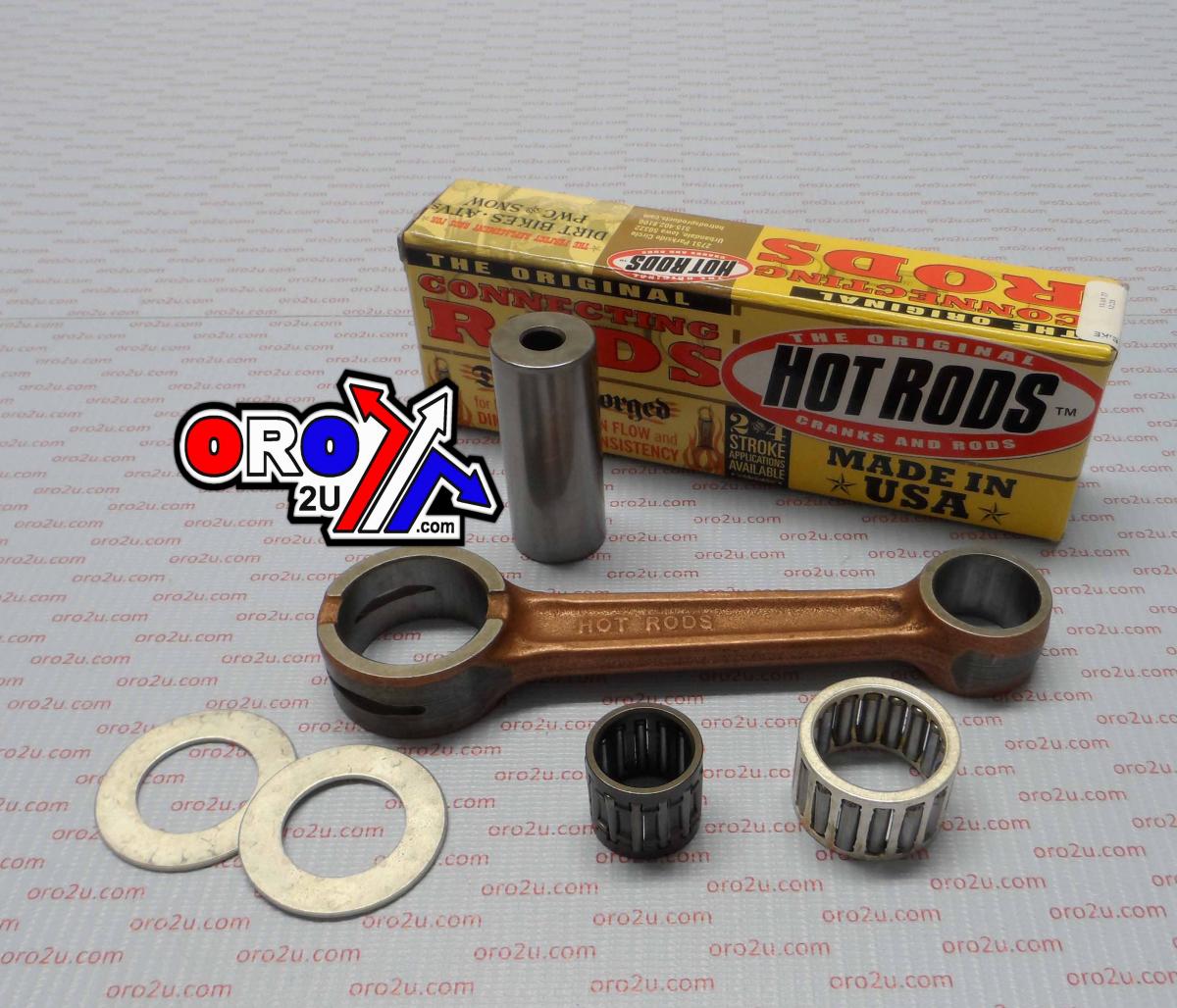

High-quality Hot Rods connecting rod kit designed as a replacement for Suzuki RM250 models (1996–2002). Manufactured from hot-rolled ASTM 4115 steel and case-hardened to 58-62 Rc, this kit provides exceptional strength and performance under demanding conditions.

Features:

  • Constructed from hot-rolled ASTM 4115 steel and case-hardened to 58-62 Rc for durability.
  • Strategically located side scalloping and vent slots minimize high-rpm bearing race distortion.
  • Double-forged rods enhance grain flow and maintain dimensional consistency.
  • Shot-peened and double-honed for superior strength under heavy loads.
  • Double-drilled small ends improve lubrication and cooling of the wrist pin bearing, crucial for close piston crown proximity.
  • Silver-coated thrust washers and crank pin bearings enhance lubricity and reduce friction.
  • Complete kit includes rod, crank pin, crank pin bearing, top-end bearing, and thrust washers.

Cross-Reference OEM Part Numbers:

  • MX-09054
  • 12161-37E00
  • WPR161
  • Hot Rods 8141
  • Wossner P2026

Technical Specifications:

  • Big End Bearing (mm): 24 x 32 x 19.7
  • Big End Bore (mm): 32.00
  • Big End Width (mm): Not specified
  • Center-to-Center (mm): 125.50
  • Pin Diameter (mm): 24.00
  • Pin Length (mm): 57.90
  • Small End Bearing (mm): Not specified
  • Small End Bore (mm): 23.00
  • Small End Width (mm): Not specified
  • Washer Thickness (mm): 1.50

Vehicle Compatibility:

  • Suzuki RM250: 1996–2002

Part Number: 56-879.HR

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.



SKU:REF 56-879.HR
