HOT RODS CON ROD KIT KAWASAKI KX80 98-00, KX85 01-24, KX100 98-21

High-quality connecting rod kit designed as a durable replacement for Kawasaki and Suzuki models. Built with precision and engineered to minimize high-rpm bearing race distortion, this kit delivers reliable performance under demanding conditions.

Features:

• Manufactured from hot-rolled ASTM 4115 steel and case-hardened to 58-62 Rc for enhanced strength and durability.
• Advanced design includes side scalloping and vent slots to minimize high-rpm bearing race distortion.
• Double-forged construction improves grain flow and ensures dimensional consistency.
• Shot-peened and double-honed rods provide superior strength under heavy loads.
• Double-drilled small ends optimize lubrication and cooling of the wrist pin bearing.
• Silver-coated thrust washers and crank pin bearings enhance lubricity and reduce friction.

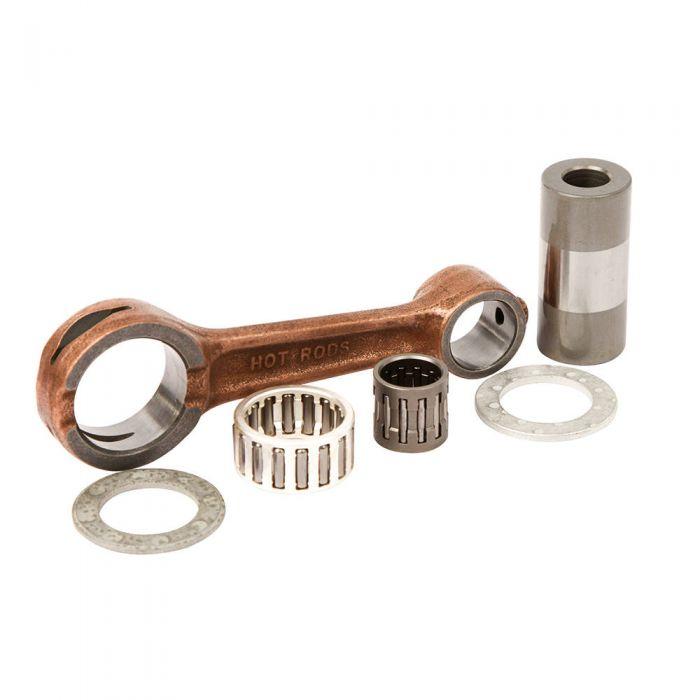

• Complete kit includes rod, crank pin, crank pin bearing, top-end bearing, and thrust washers.

Technical Specifications:

• Big End Bearing (mm): 22x28x14
• Big End Bore (mm): 28.00
• Big End Width (mm): 13.98
• Center to Center (mm): 92.00
• Pin Diameter (mm): 22.00

Cross-Reference OEM Part Numbers:

• KAWASAKI: 13032-1230
• SUZUKI: K1303-21230
• HotRod: 8147

Vehicle Compatibility:

Kawasaki:

• 1998–2000 Kawasaki KX80
• 2001–2018 Kawasaki KX85
• 1998–2018 Kawasaki KX100
• 2009 Kawasaki KX85 Monster Energy
• 2009 Kawasaki KX100 Monster Energy

Suzuki:

• 2003 Suzuki RM100

Part Number: 56-878.HR

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
