HOTROD CON ROD KIT KAWASAKI KX125 1998-2002

Heavy-duty connecting rod kit designed for the Kawasaki KX125, offering a durable and high-performance solution for demanding applications. Manufactured to stringent standards, this kit provides excellent reliability and strength while minimizing high-rpm bearing race distortion.

Features:

• Made from hot-rolled ASTM 4115 steel and case-hardened to 58-62 Rc for exceptional durability.
• Advanced design incorporates strategically located side scalloping and vent slots to reduce high-rpm bearing race distortion.
• Double-forged rods ensure improved grain flow and dimensional consistency.
• Shot-peened and double-honed construction provides superior strength under heavy loads.
• Double-drilled small ends enhance lubrication and cooling of the wrist pin bearing.
• Silver-coated thrust washers and crank pin bearings increase lubricity and longevity.

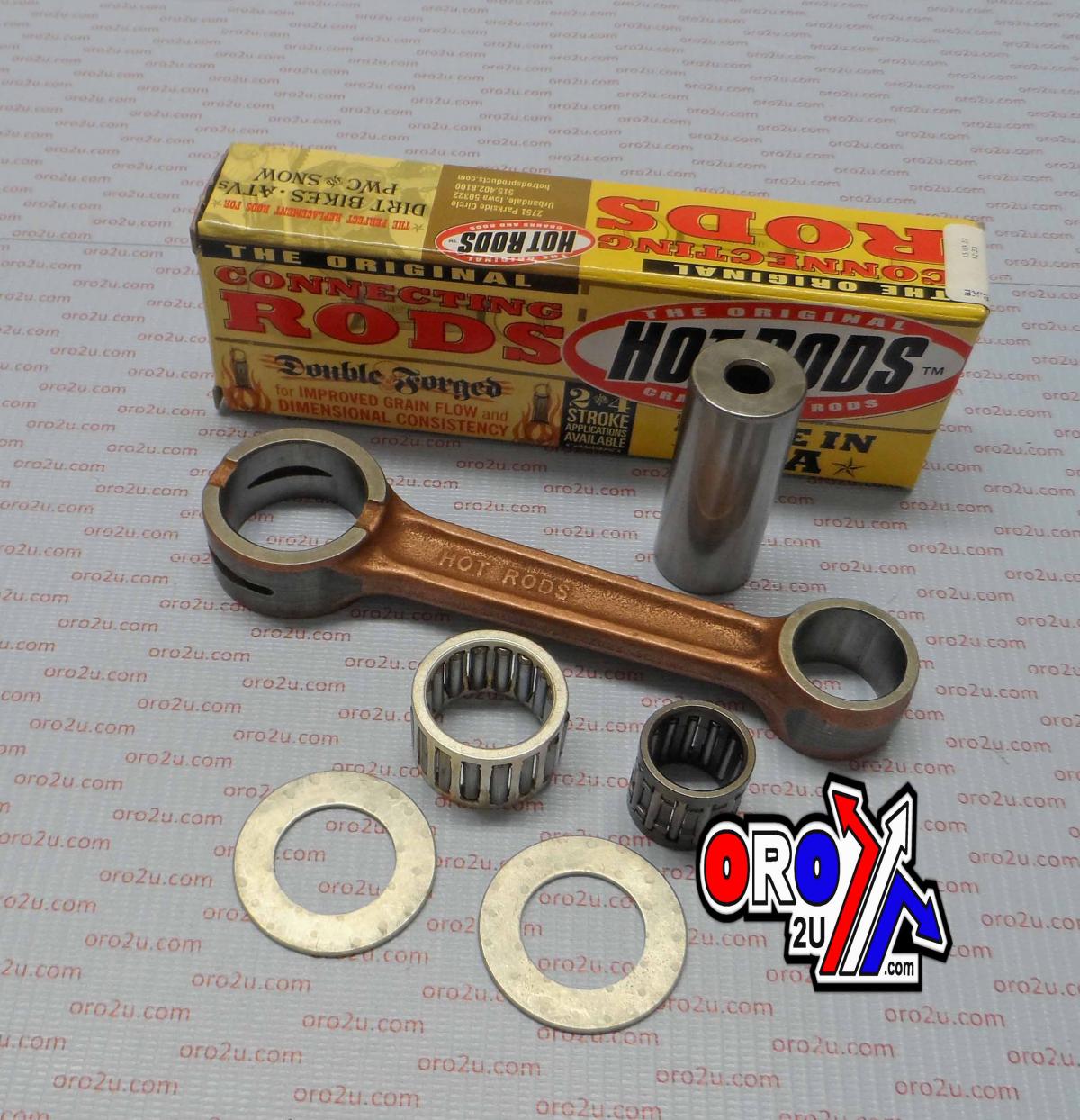

• Complete kit includes rod, crank pin, crank pin bearing, top-end bearing, and thrust washers.

Technical Specifications:

• Big End Bore (mm): 29.00
• Big End Width (mm): Not specified
• Center to Center (mm): 104.00
• Pin Diameter (mm): 22.00
• Pin Length (mm): 51.00
• Small End Bore (mm): 19.00
• Small End Width (mm): Not specified
• Washer Thickness (mm): 1.00

Cross-Reference OEM Part Numbers:
KAWASAKI: 13032-0010, 13032-1225, 13032-1253

Vehicle Compatibility:

• 1998 Kawasaki KX125
• 1999 Kawasaki KX125
• 2000 Kawasaki KX125
• 2001 Kawasaki KX125
• 2002 Kawasaki KX125

Part Number: 56-877.HR

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
