HOT RODS CON ROD SUZUKI RM-Z450 08-12, RMX-Z 450 10-19

Heavy-duty connecting rod kit designed as a high-quality replacement for the Suzuki RM-Z450. Manufactured for exceptional durability and performance, this kit ensures reliability under demanding conditions. Its advanced engineering minimizes high-rpm bearing race distortion and improves overall operational longevity.

Features:

• Manufactured from hot-rolled ASTM 4115 steel and case-hardened to 58-62 Rc for superior strength.
• Strategically designed side scalloping and vent slots reduce high-rpm bearing race distortion.
• Double-forged rods improve grain flow and maintain dimensional consistency.
• Shot-peened and double-honed for enhanced strength under heavy loads.
• Double-drilled small ends ensure additional lubrication and cooling of the wrist pin bearing.
• Silver-coated thrust washers and crank pin bearings improve lubricity.

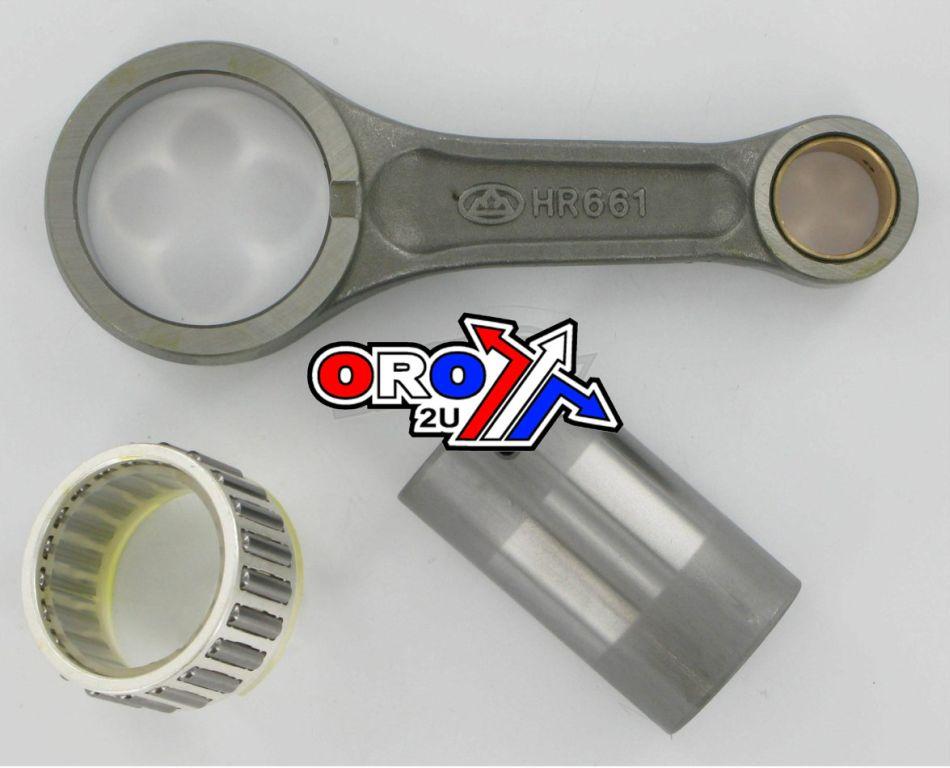

• Complete kit includes rod, crank pin, crank pin bearing, top-end bearing, and thrust washers.

Technical Specifications:

• Big End Bearing (mm): 34x42x19.7
• Big End Bore (mm): 42.00
• Big End Width (mm): 19.75
• Center to Center (mm): 105.60
• Pin Diameter (mm): 34.00
• Pin Length (mm): 60.80
• Small End Bearing (mm): No Bushing
• Small End Bore (mm): 19.00
• Small End Width (mm): 16.50
• Washer Thickness (mm): Not Applicable

Cross-Reference OEM Part Numbers:
SUZUKI: 12160-28H00-0B0

Vehicle Compatibility:

• 2008 Suzuki RM-Z450
• 2009 Suzuki RM-Z450
• 2010 Suzuki RM-Z450
• 2011 Suzuki RM-Z450
• 2012 Suzuki RM-Z450
• 2013 Suzuki RM-Z450
• 2014 Suzuki RM-Z450

Part Number: 56-874.HR

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
