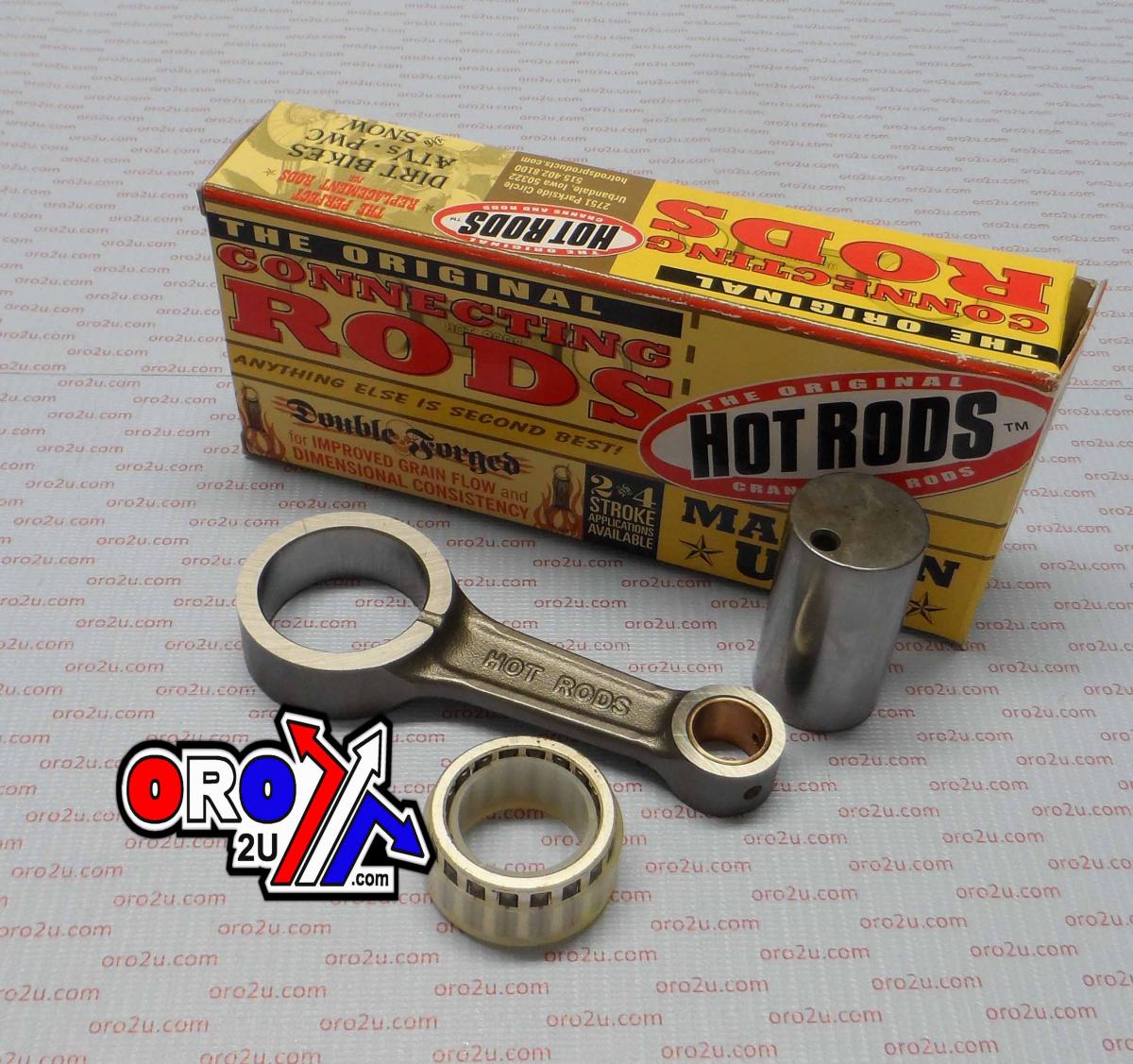

HOT RODS CON ROD YAMAHA YZ-F250 2001-2002, WR250F 2001-2002

Heavy-duty connecting rod kit designed as a high-quality replacement for the Yamaha YZ250F. Manufactured from premium materials and engineered for superior strength and performance, this kit ensures durability under demanding conditions. The advanced design minimizes high-rpm bearing race distortion, and precise construction delivers reliable operation.

Features:

• Complete kit includes rod, crank pin, crank pin bearing, top-end bearing, and thrust washers.
• Made from hot-rolled ASTM 4115 steel and case-hardened to 58-62 Rc for exceptional durability.
• Side scalloping and vent slots reduce high-rpm bearing race distortion.
• Double-forged construction improves grain flow and ensures dimensional consistency.
• Shot-peened and double-honed rods offer superior strength under heavy loads.
• Double-drilled small ends enhance lubrication and cooling of the wrist pin bearing.
• Silver-coated thrust washers and crank pin bearings for improved lubricity.

Technical Specifications:

• Big End Bearing (mm): 30x38x17.8
• Big End Bore (mm): 38.00
• Big End Width (mm): 17.97
• Center to Center (mm): 93.50
• Pin Diameter (mm): 30.00
• Pin Length (mm): 54.80
• Small End Bearing (mm): Bushing
• Small End Bore (mm): 16.00
• Small End Width (mm): 14.95

Cross-Reference OEM Part Numbers:
YAMAHA: 5NL-11651-00-00, 5NL-11651-10-00

Vehicle Compatibility:

• 2001 Yamaha YZ250F
• 2002 Yamaha YZ250F

Part Number: 56-873.HR

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
